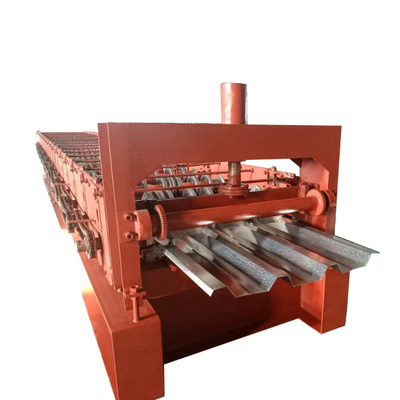

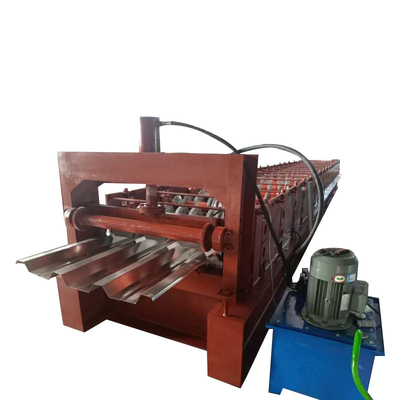

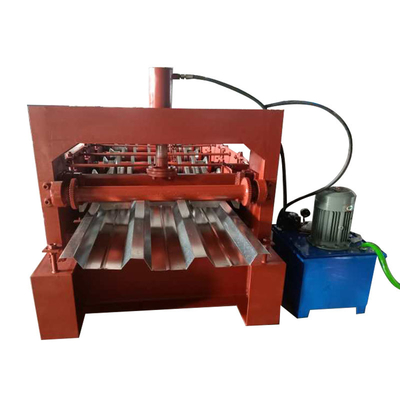

Hydraulic Floor Deck Roll Forming Machine Galvanized Sheet Roll Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | FLOOR |
| Production Capacity: | 15 M/min | Voltage: | 380v 50hz 3phase |
| Dimension(L*W*H): | 9.5*1.35*1.40m | Weight: | 5000 Kg |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1200mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Pump, PLC | Material: | Steel |
| Raw Material: | Steel | Shaft Diameter: | 90mm |
| Steps Of Forming Rollers: | 18 Steps | Chains Transport: | 2" |
| Main Motor Power: | 15kw | Board: | 20mm |
| Frequency Conversion: | 7.5kw | Plc: | Delta |
| Roller Material: | C45 | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Port: | Xingang ,tianjin Port ,China |
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
|
|
After Warranty Service
|
Video technical support, Online support, Field maintenance and repair service
|
|
Local Service Location
|
none
|
|
Showroom Location
|
none
|
|
Tile Type
|
Steel
|
|
Production Capacity
|
15 m/min
|
|
Place of Origin
|
China
|
|
Brand Name
|
Haide
|
|
Dimension(L*W*H)
|
9.5*1.35*1.40m
|
|
Warranty
|
1 YEAR
|
|
After-sales Service Provided
|
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
|
|
Key Selling Points
|
Easy to operate
|
|
Material
|
Steel
|
|
Raw Material
|
Steel
|
|
Shaft diameter
|
90mm
|
|
Steps of forming rollers
|
18 steps
|
|
Chains transport
|
2"
|
|
Main motor power
|
15kw
|
|
Board
|
20mm
|
|
Frequency conversion
|
7.5kw
|
|
Plc
|
Delta
|
|
Roller material
|
C45
|
Packing & Delivery
Main body of machine naked , loading in the container. imported computer control system packed with waterproof . 1.Tighten to container with steel wire rope and welded machine with container by angel iron 2. .Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic) 3.PLC control system and motor pump are packed in waterproof .
Company Profile
Botou Haide Machinery Manufacturing Co.,ltd is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to No. 104 Road, and Jingjiu Railway. Our factory specializes in producing and designing each kind of roll forming machine and automatic cutting machine. Our products are widely applied to manufacture colored steel tiles for industry workshop, warehouse and high-rise construction site. We undertake production with high technology and comprehensive processing equipment. We can design according to our customers' requirements and we will do our best to meet your needs. For the above reasons, our products not only have a ready sale in domestic market but are also exported to Armenia, Russia, Kazakhstan and other countries and regions. Insisting on the belief of "quality first, prestige is supreme", we are looking forward to your cooperation and contact. New and old friends are welcome to cooperate with us for a bright future.
Exhibition
Recommend Products
FAQ
1. who are we?
We are based in Hebei, China, start from 2010,sell to Western Europe(20.00%),Mid East(20.00%),Southeast Asia(20.00%),South America(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof tile Roll Forming Machine,Wall Roll Former,Tile Forming Machine,C Z-Purlin Forming Machine,Bending machine
4. why should you buy from us not from other suppliers?
Botou Haide Machinery Manufacturing CO.LTD is a manufacturer with strong technologies for cold forming equipment and its whole automatic production line.Our products are mainly used for C-type and Z-type purlin for steel structure production.
We are based in Hebei, China, start from 2010,sell to Western Europe(20.00%),Mid East(20.00%),Southeast Asia(20.00%),South America(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof tile Roll Forming Machine,Wall Roll Former,Tile Forming Machine,C Z-Purlin Forming Machine,Bending machine
4. why should you buy from us not from other suppliers?
Botou Haide Machinery Manufacturing CO.LTD is a manufacturer with strong technologies for cold forming equipment and its whole automatic production line.Our products are mainly used for C-type and Z-type purlin for steel structure production.
