Hydraulic Sheet Decoiling Machine Steel Coil Decoiler For Sale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Farms, Restaurant, Home Use, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Decoiler, Manual/hydraulic |
| Tile Type: | Steel | Use: | Make Tile |
| Production Capacity: | 20m/min | Voltage: | 380V |
| Dimension(L*W*H): | 4*1.3*1.6M | Weight: | 1-2 TON |
| Warranty: | Unavailable | Key Selling Points: | Long Service Life |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Other, Bearing, Gear, Pump, Gearbox, Engine, PLC | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Name: | Aluminum Joint Hidden Roof Panel Hydraulic Decoiler | Raw Material: | PPGI PPGL GI GL |
| Application: | Make Tile | Color: | Customizable |
| Thickness To Process: | 0.3-0.8mm | Auto Car: | Load 5 Ton , 7 Ton ,10 Ton |
| Frame: | 300 H Steel | Inside Diameter: | 450-550mm |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Port: | Tianjin |

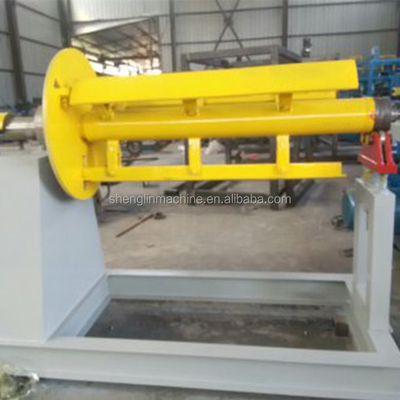

Aluminum joint hidden roof panel hydraulic decoiler
Specification
|

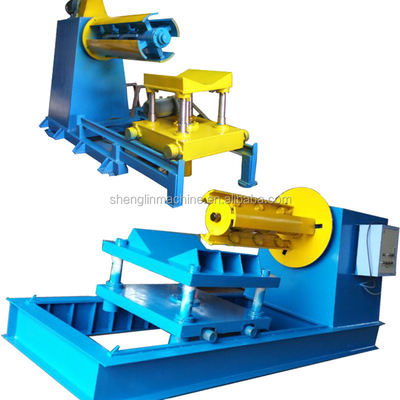

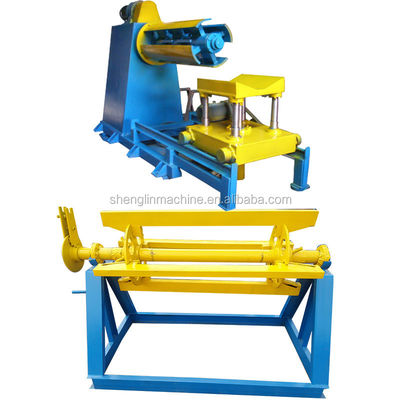

Types of decoiler |

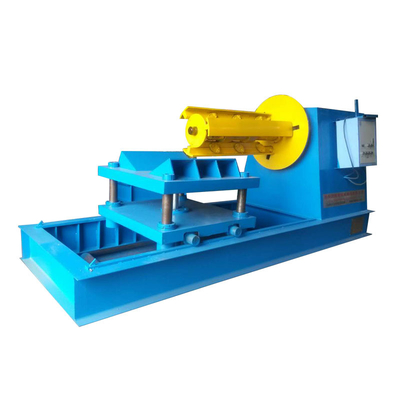

Hydraulic decoiler with auto car |
Hydraulic decoiler |
Electrical decoile |
Manual decoiler |
|
|
Sample |
|
|
|
|
|
|
Power |
Hydraulic with auto car |
Hydraulic |
electrical |
manual |
|
|
ID |
450-550mm |
450-550mm |
450-550mm |
450-550mm |
|
|
OD |
1250mm |
1250mm |
1250mm |
1250mm |
|
|
Load weight |
5 ton |
5 ton |
5 ton |
5 ton |
|
|
Hydraulic motor |
3KW |
3KW |
/ |
/ |
|
|
Main motor |
3KW |
3KW |
/ |
/ |
|
|
Machine frame |
300 H steel |
300 H steel |
/ |
/ |
|
PRODUCT DESCRIPTION
Decoiler rotation is automatically loop arm controlled. The loop arm controls variable speed operation, providing smooth stops and starts.
Construction includes steel plate and heavy structural sections. Plate seams are seal welded. Structural bracing is included where required.
WHY CHOOSE US
Decoiler---Main Roll forming system---Electric controlling system---Automatic cutting---Receiving table
Our Services

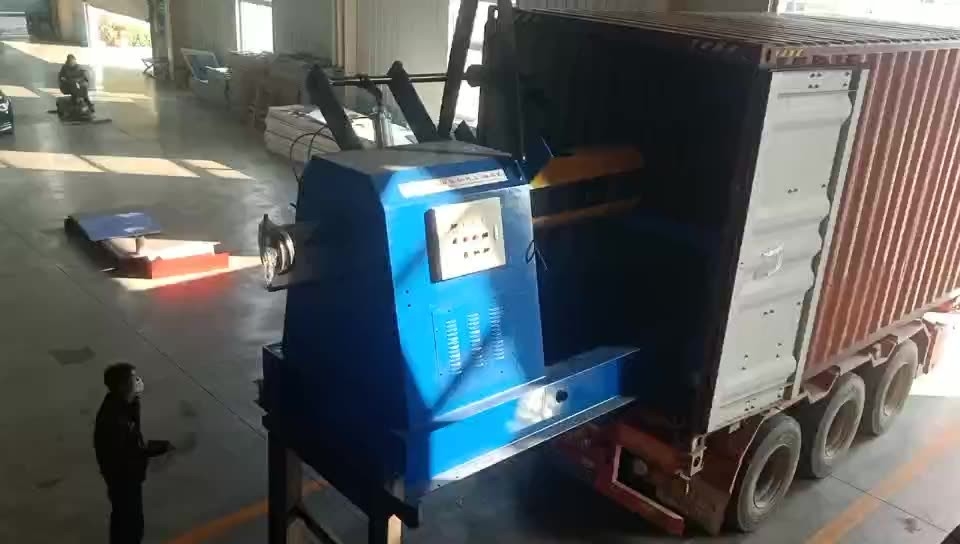

Packaging & Shipping
Company Information
Our company is a manufacturer with strong technologies for cold-forming equipment and its whole automatic production line . Our products are mainly used for IBR ,corrugated , glazed tile roll forming machines ,as well as the C Z purlin machine , light keel steel machine,shutter door machine,floor decking machine etc . On the strength of our strong technologies and manufacturing experience, we always place the customers'interests first and know that our sucess lies on the customer's success and development. From design to after-service, this principle is observed. By using our products,customers may improve efficiency , reduce costs and enhance competitive power .
FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 35 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 2 years warranty .,All of the technical personnel are ready to serve you at any time.
5. Q:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good after-sales service, its free of charge during the warranty period.
