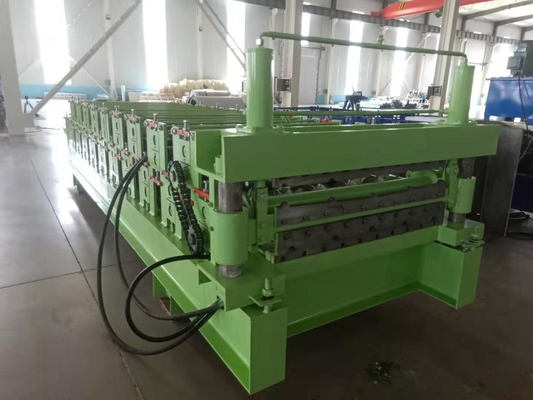

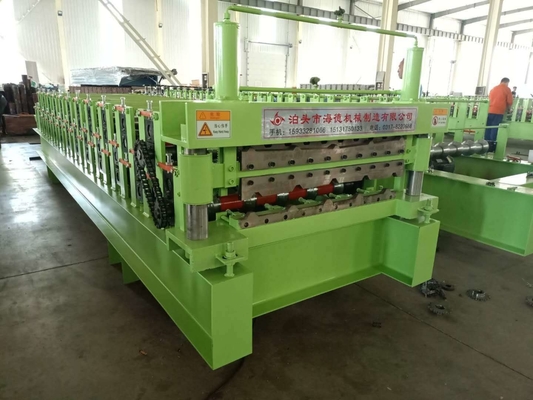

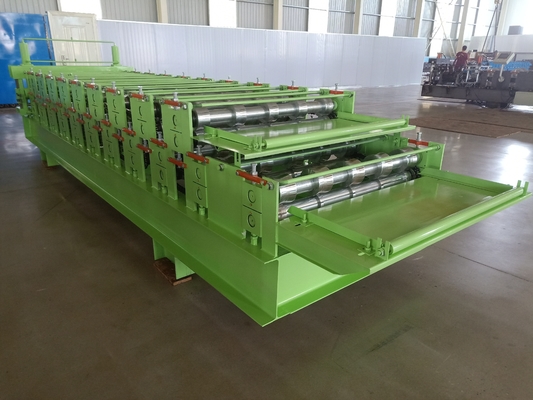

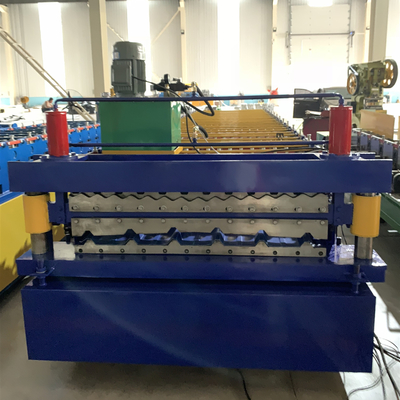

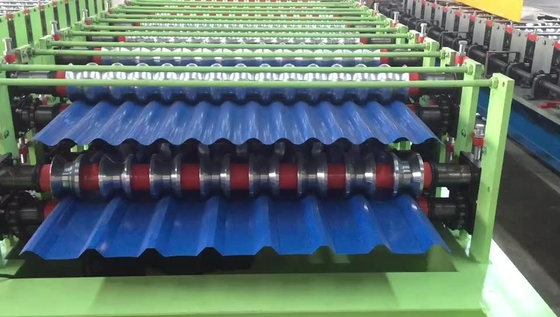

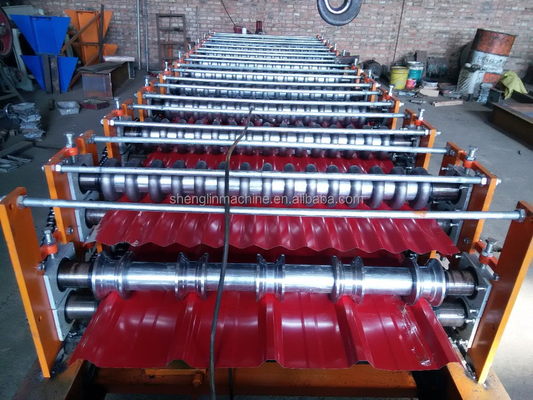

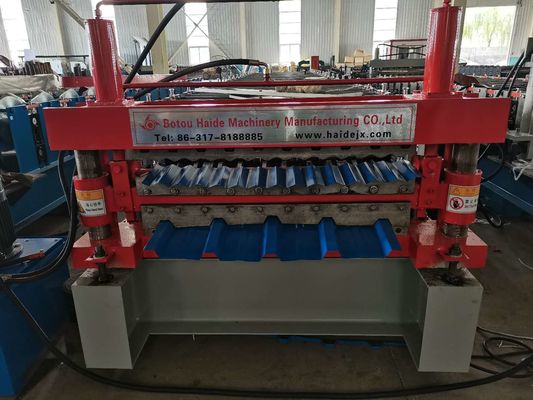

Hot Sale Glazed Tile Forming Machine Steel Roof Wall Panel Roll Forming Making Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Warranty: | 1 Year | Certification: | CE |
| Color: | Red /blue /grey | Forming Method: | Chain Drive |
| Material: | Steel Or Aluminum | Coil Width: | 914-1250mm |
| Capacity: | 10m/min | Control System: | PLC+touch Screen |
| Shaft Material: | C45 | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Port: | Tianjin |
Hot sale! Glazed Tile Roll Forming Machine
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.
We have done business with many foreign customers . Just like: Zimbabwe. Tanzania, United States, Ghana, South Africa, Canada, Chile, Indonesia...
Main Technical parameter:
| Type | Glazed Tile Roll Forming Machine |
| Material Spec | colored steel sheet, galvanized steel sheet |
| Main motor power |
4.0kw |
| Forming speed: |
6-8m/min |
| Diameter of roller | 75 millimeter |
| Coil Thickness | 0.3-0.7 millimeter |
| The width of the colored sheet | 914-1250 millimeter |
| Hydraulic station pressure | 4 kw |
| Hydraulic pressure | 10 - 12Mpa |
|
Total Weight |
3.8ton |
| Voltage | 380 volt |
| Roll stand | 9 groups |
| PLC |
Computer adopt PLC, Mitsubishi FX-IS series |
| Size length * width*high: | 6.5m*1.3m*1.2m |
| Roller material: | high grade No.45 forged steel, with 0.05mm chrome coating |
| Frequency converter | Mitsubishi |
| ROTARY ENCODER | OMRON |
| Material of cutter | Cr12 |
Technical process:
Manual decoiler---feed with guide---roll forming---press step---cut with fixed length---output with table
We can Desgin and Manufacture the Machine accroding to clients' request! Please send us the enquiry with Profile Drawing.
Widely Use:
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.
The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
Packaging & Shipping
Packaging:
1.Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.
2.Normally one machine needs one 40 feet container for shipping.
