Product Details:
Payment & Shipping Terms:
|
Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works | Showroom Location: | None |
---|---|---|---|
Condition: | New | Type: | Tile Forming Machine |
Tile Type: | Steel | Use: | ROOF |
Production Capacity: | 15-20m/min | Voltage: | 380v/3ph/50hz |
Dimension(L*W*H): | Customized | Weight: | Around 4 Tons |
Warranty: | 1 Year | Key Selling Points: | Long Service Life |
Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 915mm, 1200mm, 1000mm, 1250mm |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Field Maintenance And Repair Service, Video Technical Support |
Color: | As Customer Requirement | Shaft: | 80mm |
Roller Steps: | 14 | Main Structure: | 350H Steel |
Control System: | Fully Automatic | Inverter: | Lenze |
Screen: | Color Touch Screen | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
Local Service Location: | None | Port: | Tianjin Port ,Beijing Port |

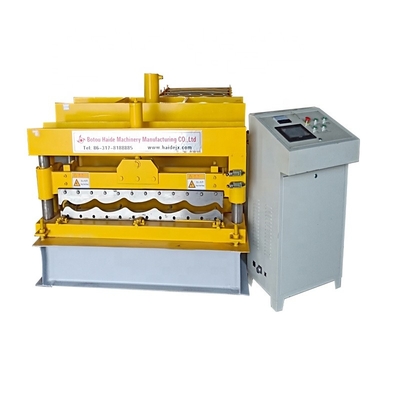

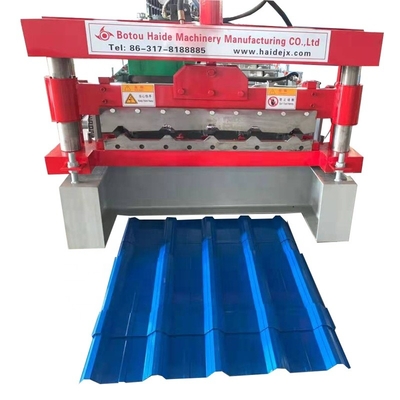

Manufacturing glazed tile roll forming production line
Basic Technical Parameters (any can be changed as customer requirement) |
||
1. |
Model |
Roof panel roll forming machine |
2. |
Dimention(mm) |
8000*1200*1050(length*width*height) |
3. |
Weight |
40000KGS |
4. |
Forming roller steps |
14 or as customer requirement |
5. |
Diameter of shaft |
80mm or 80mm or as customer need |
6. |
Working speed |
8-12m/min (can be faster by adding hydraulic motor |
7. |
Main motor |
4KW |
8. |
Hydraulic pump motor |
3KW |
9. |
voltage |
380V/3Phase/ 50HZ or as customer need |
10. |
Control system |
PLC with color touch screen |
11. |
Main structure |
350H steel |
12. |
Chain |
1’’ or double 0.6’’ |
13. |
Shear blade |
CR12 with quenched treatment 60-62 |
14. |
Roller material |
45# steel with heat treatment |
Components of Machine and Main Description |
||
|
Components of Machine |
Main Description |
1. |
Uncoiler(different type) Simple uncoiler; upgrade uncoiler; auto decoiler with car |
1. loading capacity:5000kgs 2. main power:3kw 3. coil width:1250mm |
2. |
Feeding Section with guide |
Easily for the raw material entry |
3. |
Main forming machine |
Forming the panel according your requirement |
4. |
PLC control system |
Automatically control the quantity of sheet, cutting length. |
5. |
Pressing and Cutting |
pressing and Cutting the panel automatically |
6. |
Set off table |
Height adjustable.2 pieces Size:48’’wide, 10 feet long with 8 rollers |
7. |
Coverage |
Put on chain to escape damage to workers |
Application

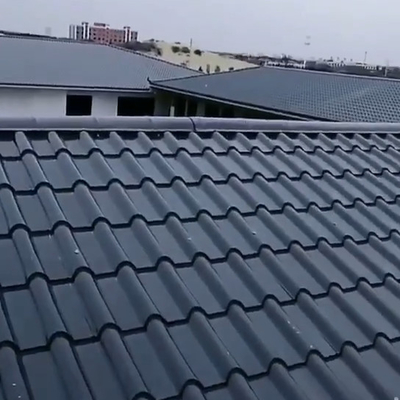

For architecture : roof panel, wall panel, ceiling panel, etc.
For Industry: refrigerating room panel, automobile panel, electric appliance housing, etc
wall ,roof and floor for warehouse ,factory ,aeroplane shed ,theater,gym and ect .
Features

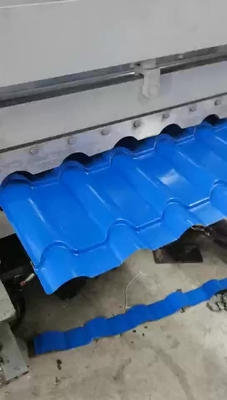

Pic Show:
About us
Haidemachinery manufacturer co.,Ltd. is located in botou - the home of roll forming machine . With 20 years of production experience ,we can offer you good quality machine at favourable price .Our main products as below:
1.Roof and wall panel forming machines
2.Corrugated tile roll forming machine

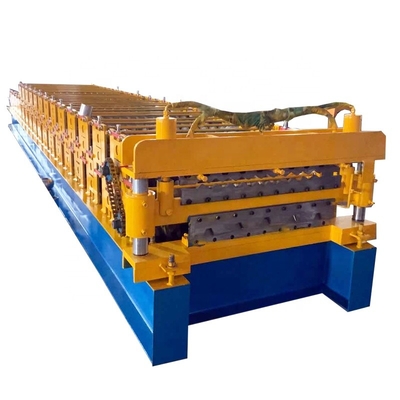

3.Double layer roll-forming machine
4.Joint hiden roll forming machine
5.Downspout and waterspout roll forming machine
6.Metal roll forming machine
7.Sandwich panel roll forming machine
8.Shearing bend slitting Uncoiler curving machine
9.Russia roll forming machinery
10.Especially for Asia type ,Russia type and Africa type
Customer Abroad
Loading:
Welcome Your inquiry !!!
For more infos ,pls contact us asap.
