steel keel roll forming machine/ galvanized steel truss profile light keel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Construction Works , Energy & Mining, Food & Beverage Shops | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored Steel | Use: | ROOF |
| Production Capacity: | 8-12m/min | Voltage: | 380v Or According To Your Requirement |
| Dimension(L*W*H): | 5.5m*0.9m*1.2m | Weight: | About 3.5T |
| Warranty: | 12 Month | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Certification: | CE | Quality System: | ISO9001-2008 |
| Contacter: | Alexander Wang | Color: | Blue |
| Raw Material: | PPGI PPGL GI GL | Roller Material: | High Grade 45# Steel |
| Shaft Material: | 45# Steel Outer Diameter: 75mm | Thickness: | 0.3--0.8mm |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Port: | Tianjin |

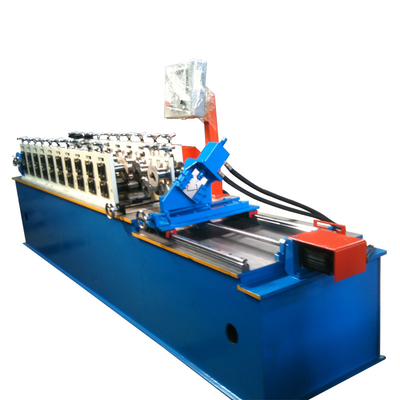

High quality Light steel keel roll forming machine
1.Main Technical Parameters:
| Suitable material | Steel Belt |
| Main motor power | 3KW |
| Hydraulic station power | 4 KW |
| Hydraulic oil | 36# |
| Thickness of material | 0.6-1.5mm |
| Diameter of principal axis | Φ50mm |
| Electric tension | 380V 3phase 50HZ |
| Material of roller | CGr15 bearing steel HR58-60 |
| Galvanization thickness | 0.05mm |
| Processing speed | 15m/min |
| Processing precision within | 10m+/-1.00mm |
| Material of cutting blade | Cr12 mould steel |
| Kind of drive | Sprocket&Chain |
| Roller station | 11 Rollers |
| Dimension | 5.5m*0.9m*1.2m |
| Weight | 3.5Ton |
| Screen | 5.7 inch Taida screen |
| PLC brand | Taida DVP14ES |
2.Hydraulic decoiler:
| Material coiler inner diameter | 450mm-700mm |
| Max coiler width | 600mm |
| Carrying capacity | 1500kg |
| Hydraulic power | 1.5kw |
| Pump inner diameter | 120mm |
| Working pressure | 12Mpa |
Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things
Our Services:
1. Customers` Design ,Size,Color&Logo are accepted.
2. With15years professional manufacture experience
3. Prompt Delivery&Competitive Price
4. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
After-sales service:
1.We provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad ,we will arrange the technician,
but the buyers should take all the cost,including visa,roundtripticket etc.
