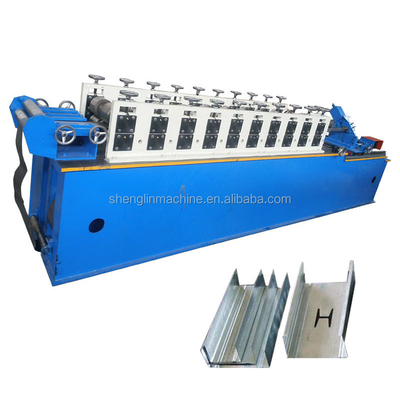

Light Steel Keeling Roll Forming Machinery Equipment

Light Steel Keeling Roll Forming Machinery Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Light Steel Keeling Roll Forming Machinery Equipment Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: Haide
Certification: CE ISO9000
Payment & Shipping Terms:
Price: $8,500.00/Sets >=1 Sets
Packaging Details: Plastic flim
Supply Ability: 10 Set/Sets per Month Light steel keel roll forming machine
Detailed Product Description
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Other Showroom Location: None
Condition: New Type: Tile Forming Machine
Tile Type: Steel Use: ROOF
Production Capacity: 12-15m/min Voltage: 380V
Dimension(L*W*H): 4*0.7*1.2m Weight: 3 Kg
Warranty: 1 Year Key Selling Points: Easy To Operate
Rolling Thinckness: 0.3-0.8mm Feeding Width: 1000mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2019 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, PLC After-sales Service Provided: Engineers Available To Service Machinery Overseas
Raw Material: PPGI PPGL GI GL Color: Customizable
Cutting Blade Material: Cr12 Shaft Material: 45# Steel
Thickness To Process: 0.4-0.6mm Shaft Diameter: 40mm
Control System: PLC Roller Material: CR40
Application: Make Light Steel Keel Roof After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None Port: Tianjin

Pneumatic light steel keeling roll forming machine

Light Steel Keeling Roll Forming Machinery Equipment 0

Specification

Light Steel Keeling Roll Forming Machinery Equipment 1

Light steel keel roll forming machine



stud



track



Omega







Sample

Light Steel Keeling Roll Forming Machinery Equipment 2 Light Steel Keeling Roll Forming Machinery Equipment 3 Light Steel Keeling Roll Forming Machinery Equipment 4

Roller stations

12

10

12

Thickness

0.4-0.6mm

0.4-0.6mm

0.4-0.6mm

Cutting type

Hydraulic mold

Hydraulic mold

Hydraulic mold

Shaft type

solid

solid

solid

Roller processing

Quenching,chroming

Quenching,chroming

Quenching,chroming

PLC

Delta

Delta

Delta

Computer screen

Touch screen

Touch screen

Touch screen

Main motor

4KW

4KW

4KW

Hydraulic motor

3KW

3KW

3KW

Board thickness

25mm

25mm

25mm

Transmission

gear

gear

gear

Shaft diameter

40mm

40mm

40mm

working principle

Light Steel Keeling Roll Forming Machinery Equipment 5

Hydraulic decoiler — straightening — Roll forming M/C — PLC control system — Hydraulic pressing&cutting — Production stand

product details

Light Steel Keeling Roll Forming Machinery Equipment 6

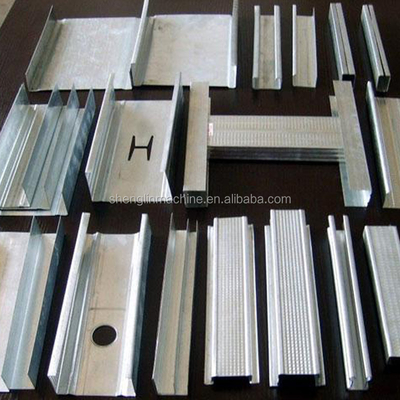

The Light steel keel roof produced by our Light steel keel roll forming machine with good bending compression performance, flatness is good, automatic fixed length cutting, automatic punching, high degree of automation, fast and convenient installation.

Light Steel Keeling Roll Forming Machinery Equipment 7

Production process

Light Steel Keeling Roll Forming Machinery Equipment 8

Our customers

Light Steel Keeling Roll Forming Machinery Equipment 9Light Steel Keeling Roll Forming Machinery Equipment 10

Company Information

Light Steel Keeling Roll Forming Machinery Equipment 11

Our company is a manufacturer with strong technologies for cold-forming equipment and its whole automatic production line . Our products are mainly used for IBR ,corrugated , glazed tile roll forming machines ,as well as the C Z purlin machine , light keel steel machine,shutter door machine,floor decking machine etc . On the strength of our strong technologies and manufacturing experience, we always place the customers'interests first and know that our sucess lies on the customer's success and development. From design to after-service, this principle is observed. By using our products,customers may improve efficiency , reduce costs and enhance competitive power.

Light Steel Keeling Roll Forming Machinery Equipment 12

FAQ

 1. Q: What is the MOQ?

     A:  1 set.



2. Q: What is the Delivery time?

     A: Within 35 workdays.



3. Q: What is the Payment terms you can accept?

     A: T/T



4. Q: What is the Warranty?

     A: Within 2 years warranty.All of the technical personnel are ready to serve you at any time.







5. Q:Can you make the machine according to my design or photo type?
A: Yes.We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.



6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.

    2.We can send the technicians to the buyer`s factory for the installation of the machine.

    3.Good after-sales service, its free of charge during the warranty period.
