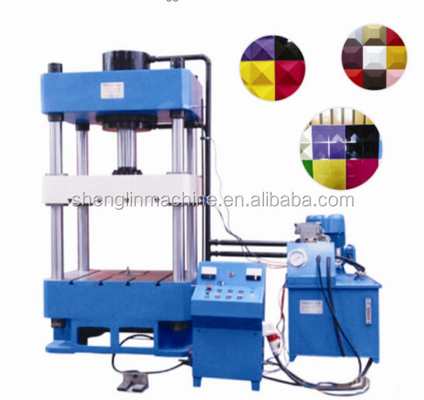

Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001 Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: haide
Certification: CE/ISO9001/SGS/CIQ
Model Number: Haide 3D
Payment & Shipping Terms:
Price: $6,000.00 - $12,000.00/Sets
Packaging Details: Main machine is naked,the fittings is packed in the bags.
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Steel Use: ROOF
Production Capacity: 10~20m/min Power: 3kw
Voltage: 380V 50HZ 3 Phase Dimension(L*W*H): 0.8*0.6*1.2m
Weight: About 4 Tons Warranty: One Year For Free And Life Long After-sale Service
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: 12 Colors For You To Choose From
Screen: MCGS 10 Inch Touch Screen Control System: Mitsubishi PLC
Encoder: Japan Omron Frequency Inverter: American Emeron
Size Of Hot Plate: 400*400mm Size Of Base Plate: 500*500mm
Maximum Pressure: 4000kg Maximum Gap: 250mm
Maximum Stroke: 150mm Port: Tianjin



3D wall panel machine for decoration

--Botou Haide Machinery Manufacturing Co.,Ltd



1)Unique panel surface protection

2)High precision in forming and cutting

3)High utilization of material

4)PLC control system,easy operation

5)Hydraulic cutting,long operating

6)No noise,no shake

7)High quality,good after-sale service

8)reasonable price

Machine specification

model  ZS-HN53
voltage&electric heating AC220V(3 Phase),1200W(50~60HZ)
size of hot plate 400*400mm
size of base plate 500*500mm
maximum pressure 4000kg
temperature controller

0~400℃
maximum gap 250mm
maximum stroke 150mm
roll leaf feeding device 0~900mm
time controller 0~12 seconds
applied power oil tank pump 2HP
dimensions(L*W*H) 800*600*1200mm
net weight 350kg+(oil 45kg)
liquid pressure oil China oil R68#(40L)
packing dimensions(L*W*H) 1000*900*1400mm
gross weight 350k

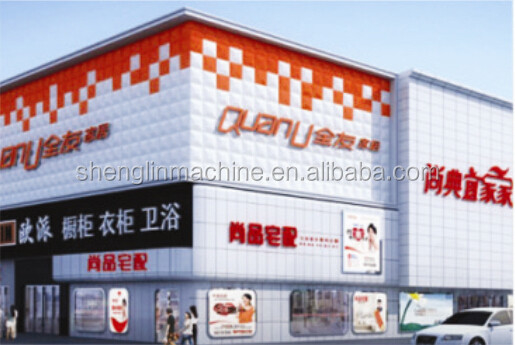

Applications of the 3d metal wall panel  machine

Make 3D metal wall panel to decorate rooms or advertising board.

Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001 0Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001 1

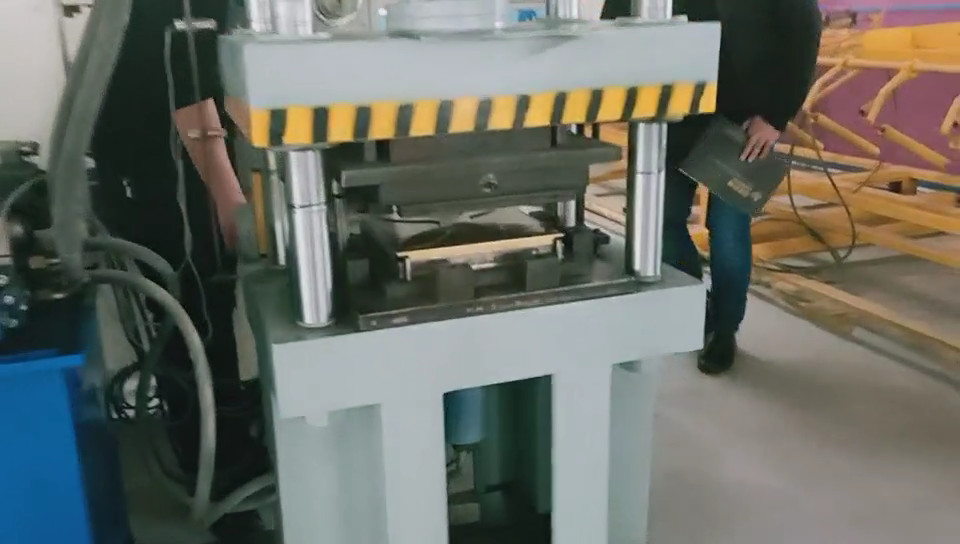

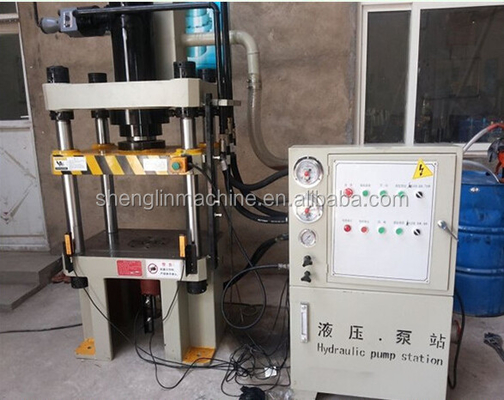

Whole machine pictures

Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001 2



Electrical control system

1.PLC:Japan Mitsubishi

2.Frequency inverter:American Emeron.

3.Touch screen:MCGS 10 inch big size.

4.Incoder:Japan Omron

5.Aviation plug,remote controller,emergency stop button.

Hydraulic cutting device

1.hydraulic station:1 set

2.with hydraulic station motor 3kw

3.hydraulic cutter

4.blade and mold material:GCR12 steel with quenched treated 60~62℃

5.cutting system:advanced hydraulic drive automatic cutting after forming no distorting.

Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001 3

Controlling device

1.screen:7 inch color touch screen

2.PLC:Japan Mitsubishi

3.automatic length measurement

4.automatic quality measurement

5.Computer is used to control length and quality.Machine will automatically cut to length and stop when required quality is achieved.

6.Length inaccuracy can be amended easily.

Haide Three Dimension Trigger 3D Wall Panel Machine With CE And ISO9001 4



 Welcome  your  order!
