Decorative Wall Panel 3D Decoration Panel Making Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Construction Works | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored Steel | Use: | WALL |
| Production Capacity: | 15-20m/min | Voltage: | 380V |
| Dimension(L*W*H): | 6000*1000*900MM | Weight: | 4 Kg |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.6mm | Feeding Width: | 1000mm |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Brand: | Haide |
| Origin Of Country: | China | Voltage: | 380V,50HZ,3phase |
| Size: | 300mm*300mm | Speed: | 20 Pieces/minute |
| Power: | 7.5kw | Cylinder: | 30ton |
| Raw Material Thickness: | 0.35mm | Raw Material: | PPGI |
| Usage: | 3d Panel Decoration | Port: | Tianjin |
Decorative Wall Panel 3D Decoration Panel Making Machine
Decorative Wall Panel 3D Decoration Panel Making Machine
|
Material Spec |
3d decoration panel making machine |
|
Main motor power |
4.0kw |
|
Forming speed |
6-8m/min |
|
Diameter of roller |
80 millimeter |
|
Thickness of input sheet |
1.0-3.0 millimeter |
|
The width of the plate |
1200 millimeter |
|
The effective of the plate |
1080 millimeter |
|
Hydraulic station pressure |
11 kw |
|
Hydraulic pressure |
10 - 12Mpa |
|
Total Weight |
4.5 ton |
|
Voltage |
380 volt |
|
Roll stand |
11 groups |
|
Controlling system |
PLC automatic frequency convertion controlling system. |
|
Size length*width*high |
6.0m*1.7m*1.3m |
|
Roller material |
9Cr-Si quenched |
|
Material of cutter |
fly saw incise |
|
Molding method |
overall shape |
3.Process of line:
Decoiler-active feeding-coil strip leveing -roll forming -measure length-cut to length-output table
4.Components of line:
|
No. |
Name |
Unit |
Qty |
|
1 |
Decoiler |
set |
1 |
|
2 |
Main machine for roll forming |
set |
1 |
|
3 |
Automatic control system |
set |
1 |
|
4 |
Hydraulic system |
set |
1 |
|
5 |
Automatic fly saw cutting |
set |
1 |
|
6 |
Output table(Products receiving tables) |
set |
1 |

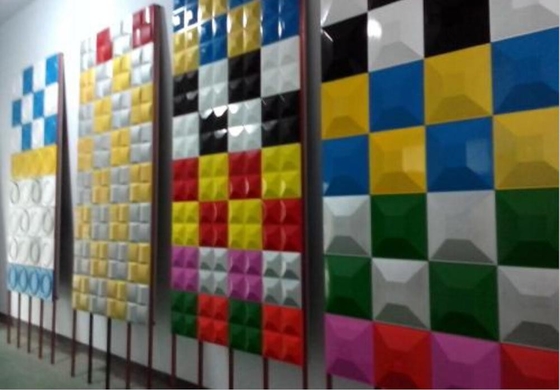

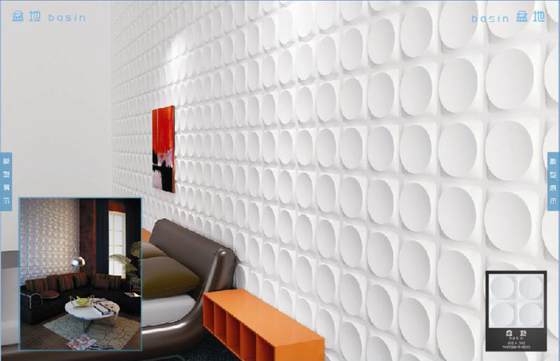

Product show:
Packing and Delivery:
Packing Details: Main Machine: All rollers will be brushed anti-rusty oil and packed with water proof plastic film.
Control box: be packed with thick cardboard, and outer side thick water proof plastic film.
All parts inside container will be fixed very well which can keep safety and fixed for long time sea time transportation.
Delivery Details: Shipped in 40 days after payment.
Advantage:
1)- we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2)You can send your men to our factory. we will teach them how to operate the machine without
training charges
3)Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support
Our Company:
Our company is a professional manufacturer and exporter of whole automatic cold-forming equipments in North China. In recent years, many of our products have been exported to Russia, India, Australia, Armenia and more than 50 countries and religions.
Our products are mainly used for C-type and Z-type purlins for steel structure production, bearing mould plate for high buildings and structured color plate or heated board for the maintenance of its roof covering and wall face, positive and negative plates for dust removal in environmental protection and so on .
Our design and technical staff will design and make according to clients' requirements and demands in order to make satisfactory products.
