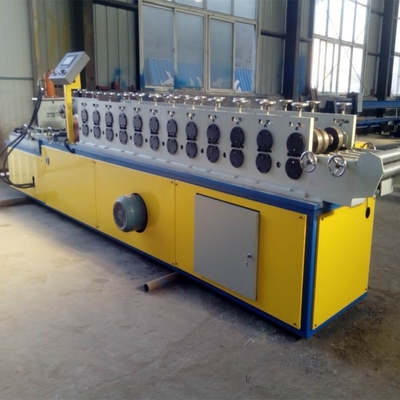

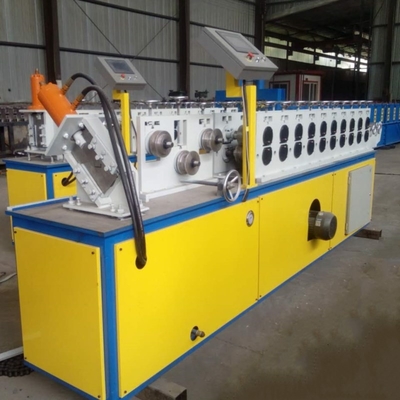

Light Keel Roll Forming Machine Keel Cd And Ud Keel Roll Former
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | Keel Plate |
| Production Capacity: | 8-12m/min | Voltage: | 380v/3phase/50hz |
| Dimension(L*W*H): | 3500*600*900mm | Weight: | 3 Ton |
| Warranty: | 1 Year, One Year | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 420 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Color: | As Customer Requirement |
| Shaft: | 40mm | Roller Steps: | 12 |
| Main Structure: | Groove Steel | Control System: | Fully Automatic |
| Cutting: | Fly Cutter | PLC: | Delta |
| Main Motor: | 2.2KW | Color: | As Your Need |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | None |
| Port: | Tianjin Port |
light keel roll forming machine-U channel track and studs
1 This roll forming machine can roll forming fastening gypsum plaster board . After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
3 One roll forming machine only can produce one profile. The following profile drawing are some examples for your
reference.
A profile with size
PS: all sizes above are changable, just tell us your desired sizes and we deisign machine for you.
B Machine parameters
|
Performances |
Parameters |
|
|
Suitable material |
Zinc coated sheet or galvanized coil or colored coil |
|
|
Suitable material |
Feeding width 120mm thickness 0.55mm |
|
|
Productivity |
6-12m/min |
|
|
Roller forming steps |
12 steps forming |
|
|
Roller material |
Bearing steel with quenched treatment 55-60°C |
|
|
Diameter of active shaft |
φ40mm |
|
|
Main machine body |
thick groove steel welded structure |
|
|
Power |
5.5KW +3 KWmotor |
|
|
Shear |
Electromechanical guillotine shears
|
|
|
Transmission |
Gear and chain |
|
|
Voltage |
AC380V/50HZ/3 phase |
|
|
Size(length*width*height) |
3500*600*900MM |
|
|
Component |
Uncoiler-forming part-hydraulic shear-set off table |
|
C Machine components line
Driven uncoiler
Roll forming mill (7 stands)

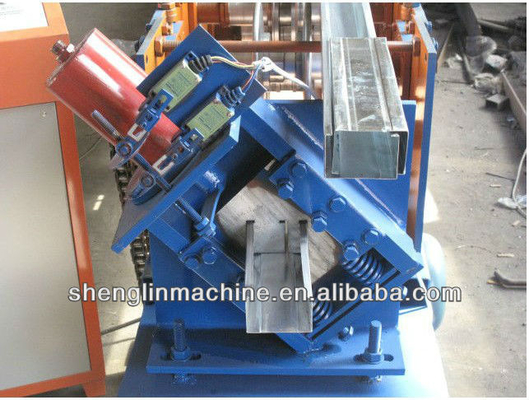

Electromechanical guillotine shears
Automated control system
Stacker is an optional equipment

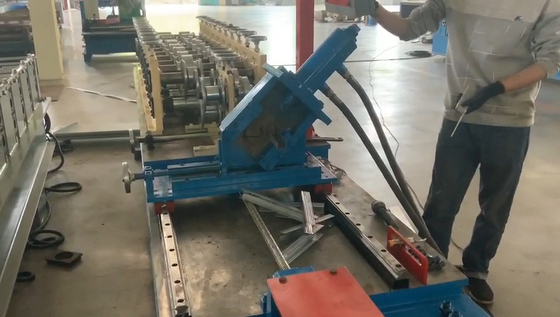

Machines waiting to delivery

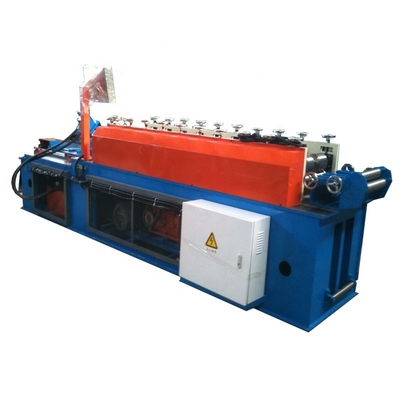

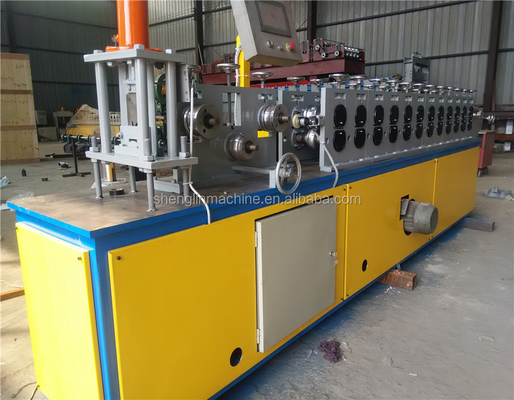

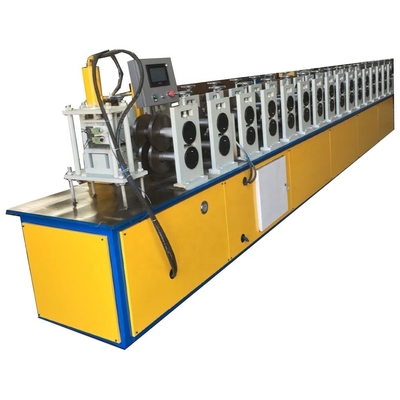

other similar keel roll forming machine we manufacturer
Company Information
Company Information:
Our company is a cold forming automatic production line manufacturer.which with greatest strength powerful technical force and complete sets of equipment.our company has been engaged in manufacturemore than 15 years .we have developed more than ten series of steel rol forming machines.such as production lines for wall&roof sheet ,color steel tile ,C&Z shape production line ,glazed tile.floor board .all kinds of sandwich panels,curving machine for roof sheets .etc.
We passed authentication of ISO9001:2008. CE.
Technological innovation and management innovation is our relentless pursuit,we willfuly promote the product upgrading and development of the industry.
Certifications
Trade Fair/Clients
Our Services
Installation and training:
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
Our Service:
1.Customer's Design,Size,Color,Logo are accepted.
2.With 20 years professional manufacture experience.
3.Prompt Delivery&Competitive Price.
4.Main Makets:Middle East,Europe,North American,Africa,Southeast Asia.
After-sales Service:
1.We provide the technical support for whole life of our machines.
2.If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should takes all the cost,including Visa,roundtripticket etc.
Remark:
1 The machine can according to your requirement to set the color
2 Within in one year if any parts go broken we will send new ones to replace for free
3 If you want to learn more about the product please login our website or contract to us.
FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 35 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 2 years warranty .,All of the technical personnel are ready to serve you at any time.
5. Q:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good after-sales service, its free of charge during the warranty period.
