Light Steel Keel Roll Forming Machine Frame Roll Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Farms, Restaurant, Home Use, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored Steel | Use: | ROOF |
| Production Capacity: | 15-20m/min | Voltage: | 380V |
| Dimension(L*W*H): | 6000*1000*900MM | Weight: | 4T |
| Warranty: | One Year For Free | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Name: | Light Keel Forming Machine | Origin Of Country: | Hebei,China |
| Type: | 80/300 C Purlin | Power: | 26kw |
| Dimension: | 6000*1000*800mm | Voltage: | 380V,50HZ,3phase |
| Certification: | CE&ISO9001 | Warranty: | One Year |
| Color: | Customized | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | None | Port: | Tianjin |
light steel frame keel roll forming machine
|
Material Spec |
light keel forming machine |
|
Main motor power |
4.0kw |
|
Forming speed |
6-8m/min |
|
Diameter of roller |
80 millimeter |
|
Thickness of input sheet |
1.0-3.0 millimeter |
|
The width of the plate |
1200 millimeter |
|
The effective of the plate |
1080 millimeter |
|
Hydraulic station pressure |
11 kw |
|
Hydraulic pressure |
10 - 12Mpa |
|
Total Weight |
4.5 ton |
|
Voltage |
380 volt |
|
Roll stand |
11 groups |
|
Controlling system |
PLC automatic frequency convertion controlling system. |
|
Size length*width*high |
6.0m*1.7m*1.3m |
|
Roller material |
9Cr-Si quenched |
|
Material of cutter |
fly saw incise |
|
Molding method |
overall shape |
3.Process of line:
Decoiler-active feeding-coil strip leveing -roll forming -measure length-cut to length-output table
4.Components of line:
|
No. |
Name |
Unit |
Qty |
|
1 |
Decoiler |
set |
1 |
|
2 |
Main machine for roll forming |
set |
1 |
|
3 |
Automatic control system |
set |
1 |
|
4 |
Hydraulic system |
set |
1 |
|
5 |
Automatic fly saw cutting |
set |
1 |
|
6 |
Output table(Products receiving tables) |
set |
1 |

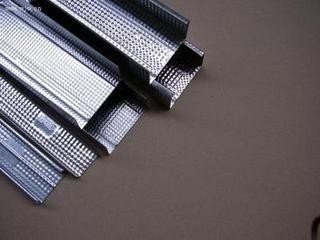

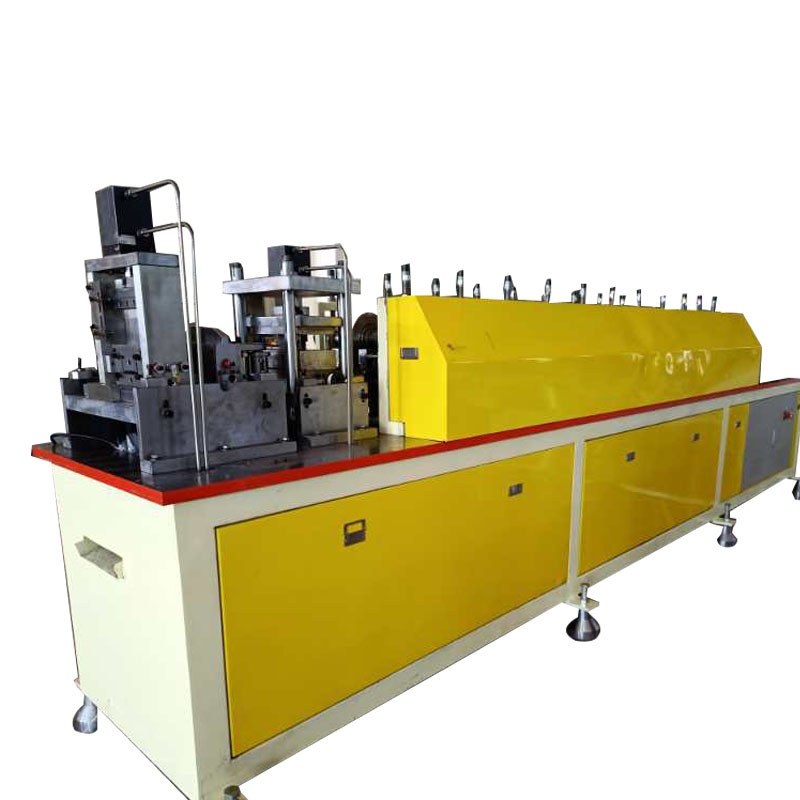

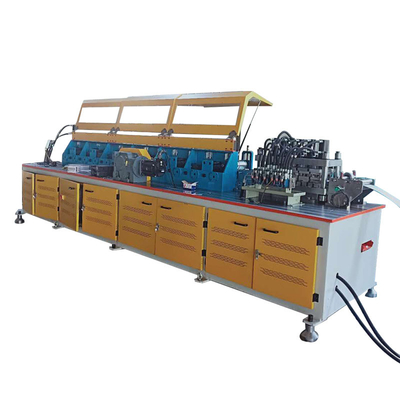

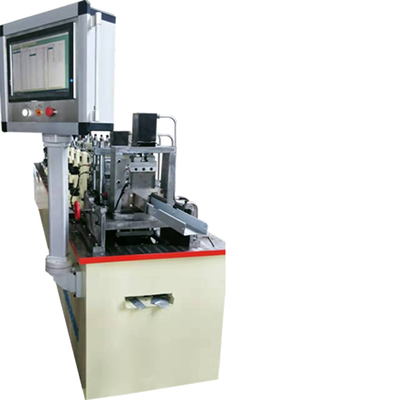

Product show: light keel forming machine
|
No |
|
Technical Specification |
|
1 |

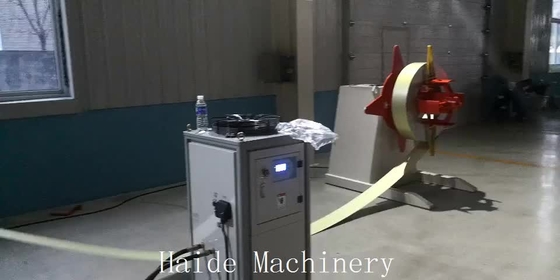

Manual Uncoiler |
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm |
|
2 |
Feeding Table |
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
|
3 |
Main Roll Forming Machine |
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |
|
4 |
Hydraulic System Computer Control Cabinet |
Power:5.5kw,Hydraulic oil: 46# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
|
5 |
Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
|
6 |
Output Table
|
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
Packaging & Shipping
Our Services
Advantage: light keel forming machine
1)- we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2)You can send your men to our factory. we will teach them how to operate the machine without
training charges
3)Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support
Company Information
Our company:
Our company is a professional manufacturer and exporter of cold-forming equipment and its whole automatic production line in North China. At recent years, large of our products have been sold to Russia, India, Australia, Armenia, and more than 50 countries and religions.
Our products are mainly used for C-type and Z-type purlins for steel structure production, bearing mould plate for high buildings and structured color plate or heated board for the maintenance of its roof covering and wall face, positive and negative plates for dust removal in environmental protection and so on .
Our marketing and design staff will respectfully listen to your definite requirements and demands ,design and produce your satisfactory equipment.
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. Weneed your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the verybeginning to the end of the production. Every product will be fully assembled and carefully tested beforeit's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand namecomponents
5) Q: Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6)Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good aftersales-service, its free of charge during the warranty period.
7)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment.
8:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
9:How to visit our company:
(1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.
(2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
