Corrugated Sheet Metal Roof Making Steel Plate Rolling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Farms, Restaurant, Home Use, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored Steel | Use: | ROOF |
| Production Capacity: | 15-20m/min | Voltage: | 380v Or According To Your Requirement |
| Dimension(L*W*H): | 6500*1300*1200mm | Weight: | About 3.0T |
| Warranty: | 12 Months | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Name: | Steel Plate Rolling Machine | Quality System: | ISO9001-2008 |
| Operation: | Fully Automatic | Color: | Can Be Choosed ,blue ,yellow |
| Hydraulic Pressure: | 10-12Mpa | Roll Stand: | 12 Groups |
| PLC: | Mitsubishi FX-IS Series | Material Of Cutter: | Cr12 |
| Maximum Load Weight: | 5000 Kg | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | None | Port: | Tianjin New Port |
corrugated sheet metal roof making steel plate rolling machine
|
Type |
steel plate rolling machine |
|
Material Specific |
colored steel sheet, galvanized steel sheet |
|
Main motor power |
3.0kw |
|
Forming speed |
6-8m/min |
|
Diameter of roller |
Φ70 millimeter |
|
Thickness of Coil Sheet |
0.3-0.7 millimeter |
|
The width of the colored sheet |
1250millimeter |
|
The effective of steel sheet |
1122 millimeter |
|
Hydraulic station pressure |
3 kw |
|
Hydraulic pressure |
10 - 12Mpa |
|
Total Weight |
about 3.5ton |
|
Voltage |
380V3 phase 50Hz |
|
roll stand |
11 groups |
|
PLC |
Computer adopt PLC, Mitsubishi FX-IS series |
|
Size length*width*high |
5.6m*1.3m*1.2m |
|
Roller material: |
high grade No.45 forged steel, plated hard chrome on |
|
Frequency converter |
containing |
|
Computer operating screen |
MT6056 from Taiwan, touch screen |
|
Active shaft material |
High grade No. 45 carbon wrought steel at diameter 70mm |
|
Material of cutter |
Cr12 mould steel with quenched treatment |
Product show: corrugated tile machine
|
No |
|
Technical Specification |
|
1 |

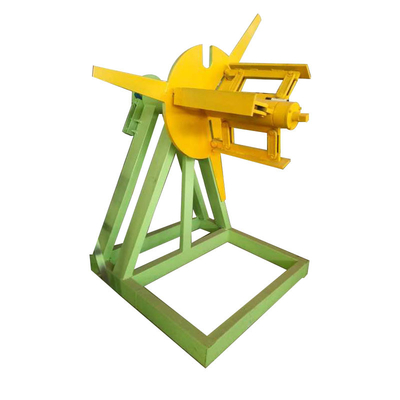

Manual Uncoiler |
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm |
|
2 |
Feeding Table |
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
|
3 |

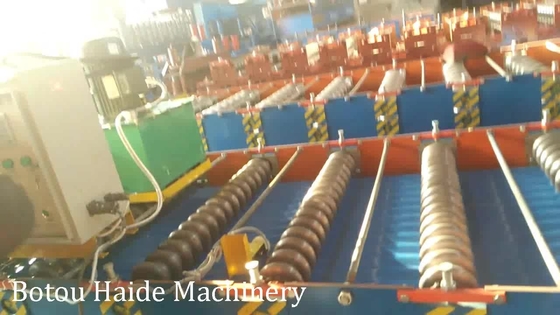

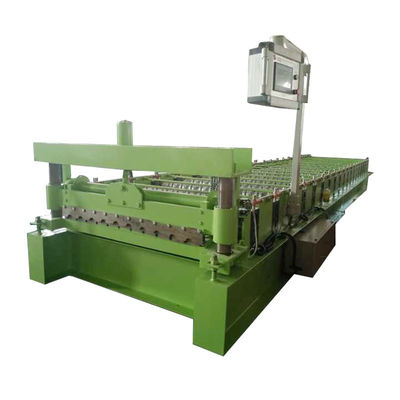

Main Roll Forming Machine |
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |
|
4 |
Hydraulic System Computer Control Cabinet |
Power:5.5kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
|
5 |

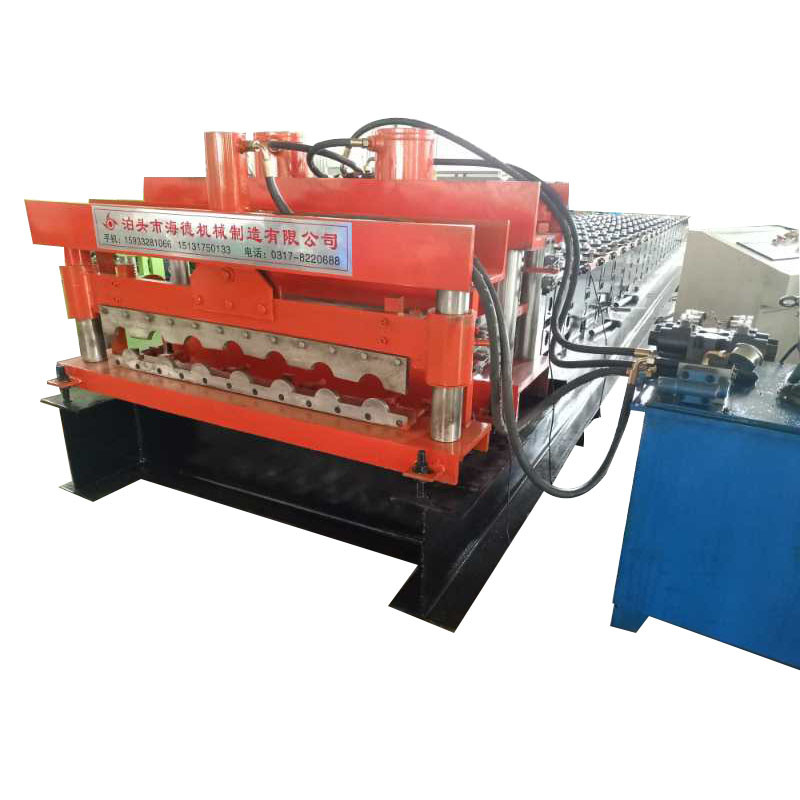

Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
|
6 |
Output Table
|
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
Packaging & Shipping
Our Services
Advantage: corrugated tile machine
1)- we can send our engineer to your site and do the training for your men. you just only bear
the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2)You can send your men to our factory. we will teach them how to operate the machine with
out training charges
3)Actually theres another cheap and easy way to choose. Every machine leave our factory with
one book of operation manual. You can read through the manaul first ,and get familiar with the
machine. Then we can get a video call,and teach you on-line how to operate the machine.
4)Apart from above training course,we also provide 1 year warranty for all the easily broken part
of the machine for free and whole-life technical service support
Company Information
Our company:
Our company is a professional manufacturer and exporter of cold-forming equipment and its whole
automatic production line in North China. At recent years, large of our products have been sold to
Russia, India, Australia, Armenia, and more than 50 countries and religions.
Our products are mainly used for C-type and Z-type purlins for steel structure production, bearing
mould plate for high buildings and structured color plate or heated board for the maintenance of its
roof covering and wall face, positive and negative plates for dust removal in environmental protection
and so on .
Our marketing and design staff will respectfully listen to your definite requirements and demands ,
design and produce your satisfactory equipment.
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. Weneed your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the verybeginning to the end of the production. Every product will be fully assembled and carefully tested beforeit's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand namecomponents
5) Q: Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6)Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good aftersales-service, its free of charge during the warranty period.
7)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment.
8:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
9:How to visit our company:
(1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.
(2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
10:Q.Why your price is higher?
For example,2 kinds of apples here,2 different prices, why prices are still different?You can see the difference from the appearance directly,the cheap one some holes in the apple,it is going to fade.And make your stomach not good.The more expensive one,it is fresh,no scrath,no holes,no worm.The most important,you can if you give it to your girlfriend she will be happy!If your budget is a problem now,ok we offer you 3 standard machine with different prices and parameters.
Like our machine,appearance good,the machine run well with life long tracking service.The most important little problem,running well to help you make more money!!!
