Wall Panel Corrugated Forming Machine Cold Color Steel Roll Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | UNIQUE SELLING POINT: | High Operating Efficiency |
| Power: | 4+3kw | Color: | Customer Required |
| Control: | Hydraulic System | Raw Material: | PPGI GI |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | Port: | TianJin |

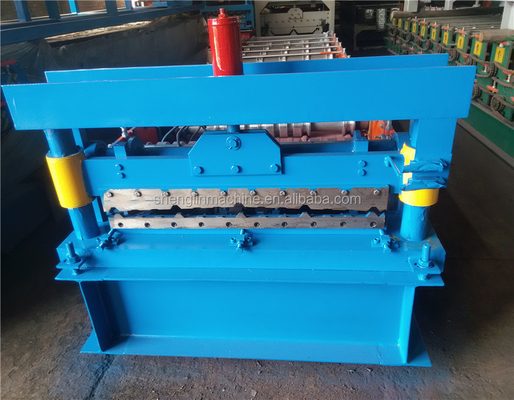

wall panel cold Color Steel Roll Forming Machine
| Type | color steel roll forming machine |
| Material Spec | colored steel sheet, galvanized steel sheet |
| Main motor power |
4.0kw |
| Forming speed: |
8-10m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet |
0.3-0.8 millimeter |
| The width of the colored sheet | 1000 millimeter |
| The effective of steel sheet | 910 millimeter |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
|
Total Weight |
2.5ton |
| Voltage | 380 volt |
| Roll stand | 10 groups |
| PLC |
Computer adopt PLC, Mitsubishi FX-IS series |
| Roller material: | high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05 millimeter |
| ROTARY ENCODER | OMRON |
| Material of cutter | Cr12 |

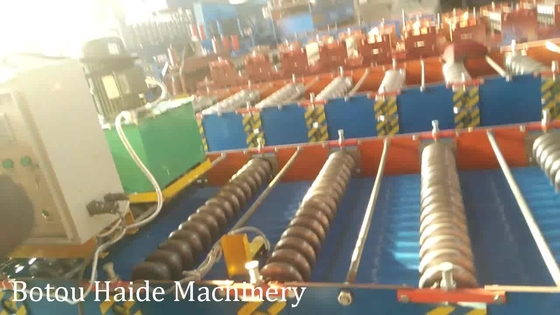

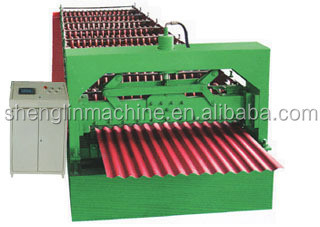

Product show: corrugated tile machine
|
No |
|
Technical Specification |
|
1 |
Manual Uncoiler |
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm |
|
2 |
Feeding Table |
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
|
3 |
Main Roll Forming Machine |
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |
|
4 |
Hydraulic System Computer Control Cabinet |
Power:5.5kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
|
5 |
Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
|
6 |
Output Table
|
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
Packaging and shipping: corrugated tile machine
Advantage: corrugated tile machine
1)- we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2)You can send your men to our factory. we will teach them how to operate the machine withouttraining charges
3)Actually theres another cheap and easy way to choose. Every machine leave our factory withone book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you online how to operate the machine.
4)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support
Our company:
Our company is a professional manufacturer and exporter of cold-forming equipment and its whole automatic production line in North China. At recent years, large of our products have been sold to Russia, India, Australia, Armenia, and more than 50 countries and religions.
Our products are mainly used for C-type and Z-type purlins for steel structure production, bearing mould plate for high buildings and structured color plate or heated board for the maintenance of its roof covering and wall face, positive and negative plates for dust removal in environmental protection and so on .
Our marketing and design staff will respectfully listen to your definite requirements and demands ,design and produce your satisfactory equipment.
