Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine

Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: haide
Certification: CE/ISO9001/CIQ
Payment & Shipping Terms:
Price: $5,000.00/Sets >=1 Sets
Packaging Details: Plastic flim
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Energy & Mining, Food & Beverage Shops, Advertising Company Showroom Location: None
Condition: New Type: Tile Forming Machine
Tile Type: Steel Use: ROOF
Production Capacity: 8~12m/min Voltage: 220V 60HZ 2 Phase
Dimension(L*W*H): 5.6*1.6*0.9m Weight: About 5 Tons
Warranty: One Year For Free And Life Long After-sale Service Key Selling Points: Long Service Life
Rolling Thinckness: 0.3-0.8mm Feeding Width: 1220mm, 1200mm, 1000mm, 1250mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Pump, Engine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Customized Screen: Touch Screen
Control System: Delta PLC Thickness: 0.3~0.7mm
Transmission Model: Chain Transport Steps Of Forming Roller: 9 Rows For 850 Layer, 11 Rows For 840 Layer
Hydraulic Power: 3kw Main Motor Power: 3kw
After Warranty Service: Video Technical Support, Online Support, Spare Parts Local Service Location: None
Port: Tianjin

Haide Double Layer Corrugated and IBR Metal Roof Sheet Cold Roll Forming Machine





Technical parameters
width of material 1000/1200mm
thickness of plates 0.3-0.7mm
forming speed 10-15m/min
forming steps for up layer 11 rows for 840 layer,9 rows for 850 layer
roller material GCR12 bearing steel
motor power 3kw
motor brand Delta
hydraulic station power 3kw
voltage 220V 60HZ 2 Phase
length*width *height of the machine 5.6*1.6*0.9m
roller material 45# steel
diameter of roller 75mm
main frame 350H steel
middle plate 14mm
blade material Cr12
chain 1 inch

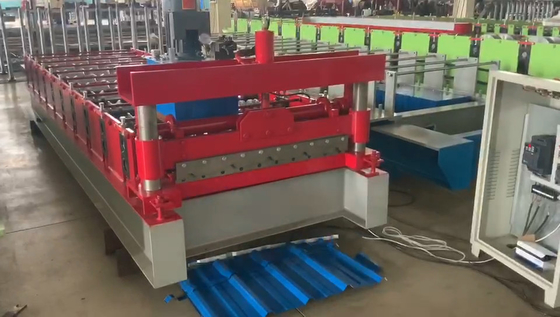

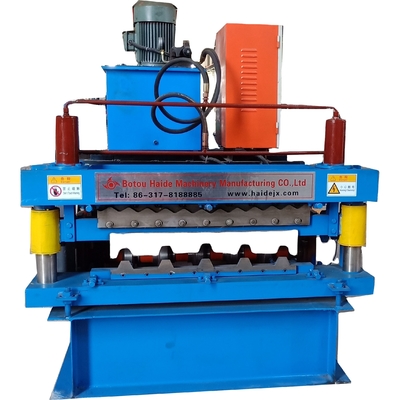

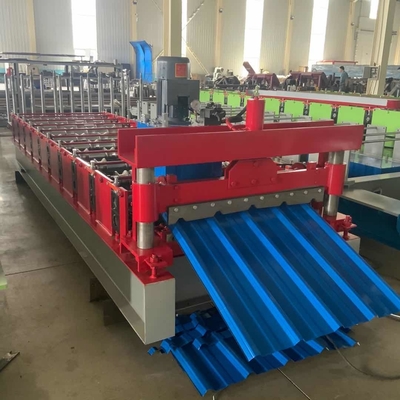

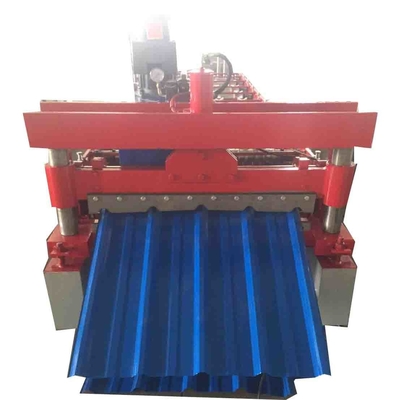

Machine pictures



Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine 0Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine 1

CE and ISO9001 certification

Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine 2Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine 3





 Welcome  your  order!





Advantages

We are wholeheartedly committed to quality and customer service, primarily since we want to

be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy

for survival and future growth.



1. Are you manufacturer?

Yes, we are manufacturer and trading company.



2. What information you need before quoting me?

We need profile drawing of the panel you want to produce, material information and your special requirements.



3. What payment terms you accept?

Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.



4. Can you make machine according to my design?

Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.



5. What is the warranty for our machine?

We have one year guarantee, and provide whole life's technical support.



6. Is there any spare part send for free?

Yes, pls contact us we can talk it.



7.Is the machine automatic?

Yes, it can be manual and automatic.



8. Any more questions pls click "send inquiry" we can talk by email, thanks



Haide Double Layer Forming Machine Corrugated And IBR Metal Roof Sheet Cold Roll Forming Machine 4
