Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery

Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: Haide
Certification: CE and ISO:9001, CE,ISO,CIQ
Payment & Shipping Terms:
Price: $8,500.00/Sets 1-1 Sets
Packaging Details: 1. Main machine is nude in container <br>2. Computer box and motor packed in plastic sheet and wooden box
Supply Ability: 30 Set/Sets per Week Double layer roll forming machinery
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Home Use, Food Shop, Food & Beverage Shops, Other, Advertising Company Showroom Location: None
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel Use: ROOF
Production Capacity: 10-20m/min Voltage: 350hz 80v/3ph/
Dimension(L*W*H): Customized Weight: 5tons
Warranty: One Year For Free, One Year For Free Key Selling Points: Easy To Operate
Rolling Thinckness: 0.3-0.8mm Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, Other
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Other, Pump, Engine, PLC After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: As Customer Requirement Shaft: 75mm
Roller Steps: 13/13 Main Structure: 350H Steel
Control System: Fully Automatic Inverter: Lenze
PLC: Panasonic After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None Port: Tianjin

Double Layer glazed Metal Roof Sheet Cold Rolling forming machinery made in China





Item  Specification
Decoiler  5 tons /10 tons /12 tons  or as your request
Roller material  45# steel , 0.05mm chrome coated / GCR15
Shaft diameter 75mm, 100% solid
Machine frame  400H steel
Machine structure thickness 20mm
Hydraulic cutting  Guide Pillar cutting style
PlC brand  Delta ,Siemens ,panasonic,
Touch screen computer  touchwin
Receiving table  3meters * 2 sets
Chain transmission  1"
Chain wheel  1"
 Voltage  380V/50HZ/3phase or as your request
 Computer box type   placed in ground or fixed on machine
 Machine color   customzied

Production Flow

Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 0

Detailed Images

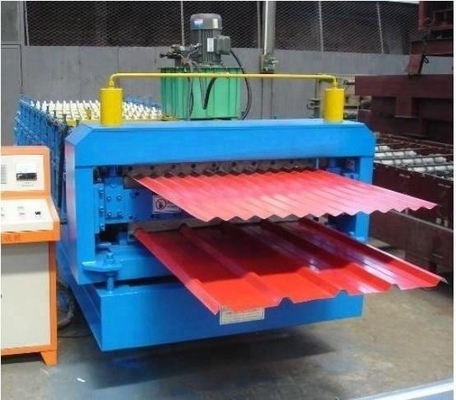

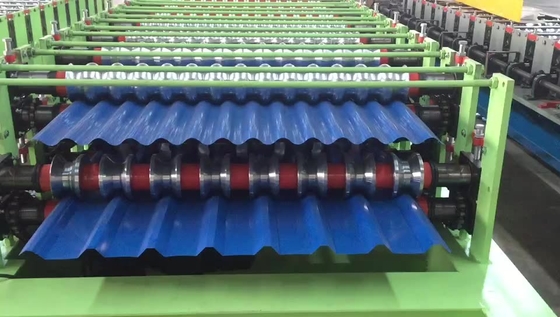

 Profile we get from this double layer machine

Glazed type

Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 1



IBR profile

Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 2

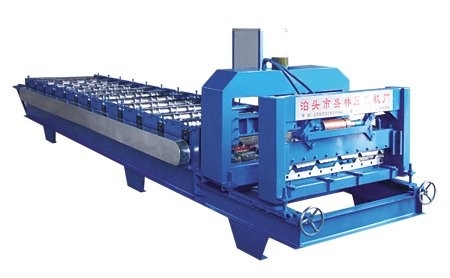

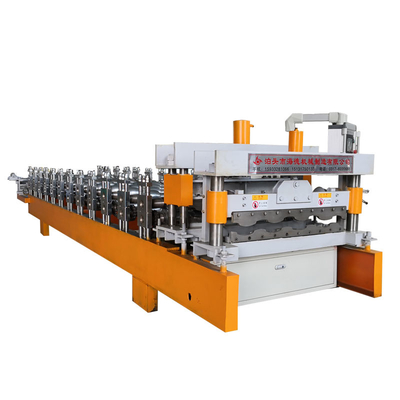

 Detailed machine pictures



Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 3Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 4Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 5



Company Information

Brief introduction of our factory



Haidemachinery manufacturer co.,Ltd. is located in botou - the home of roll forming machine . With 20 years of production experience ,we can offer you good quality machine at favourable price .Our main products as below:



1.Roof and wall panel forming machines

2.Corrugated tile roll forming machine

3.Double layer roll-forming machine

4.Joint hidden roll forming machine

5.Downspout and waterspout roll forming machine

6.Metal roll forming machine

7.Sandwich panel roll forming machine

8.Shearing bend slitting Uncoiler curving machine

9.Russia roll forming machinery

10.Especially for Asia type ,Russia type and Africa type





  Company whole view



Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 6

Trade shows/clients

Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 7Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 8



Certifications

Glazed Metal Roof Double Layer Forming Machine Sheet Cold Rolling Forming Machinery 9

Advantages

1.We are manufacturer , price is attractive

2.We are alibaba assessed 7 years Gold Supplier with Credit security of 30000USD

3.20 years of production experience ,100% guarantee the good quality machine with competitive price

4.Near to seaport , FOB price is almost the same to EXW

5.More than 10 technicians , customized machine is ok with us

6.Some small spare parts are free for you .

7.Life-long time after-sales service

8.CE,ISO quality certificate approved

9. Your questions will be replied within 8 hours
