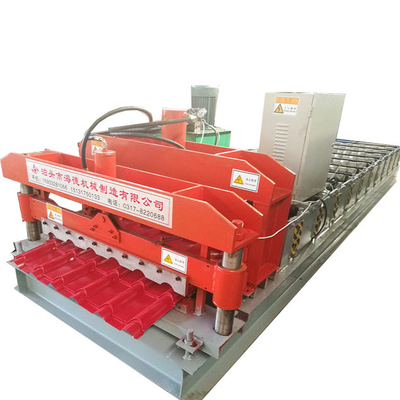

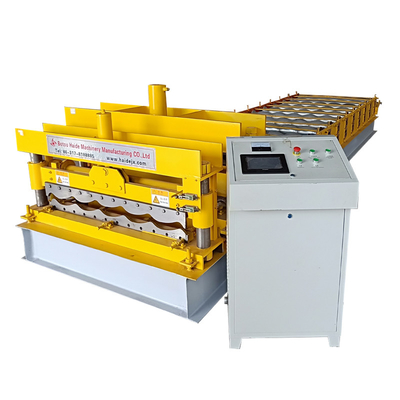

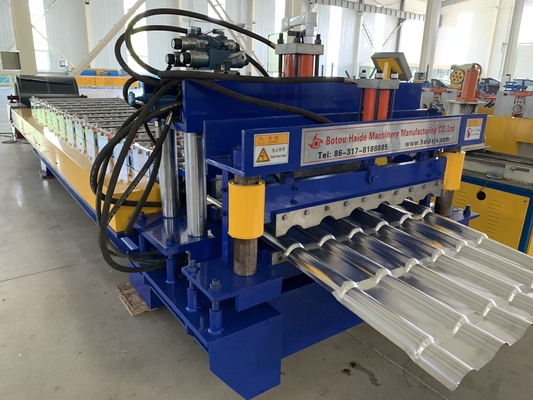

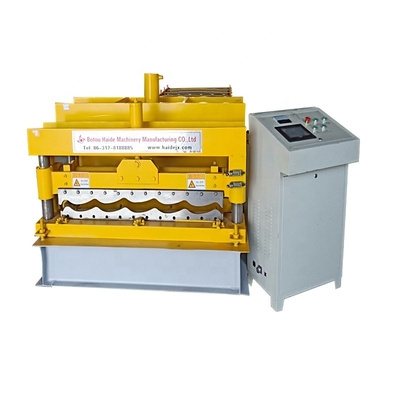

840 Glazed Roof wall sheet Tile Roll Forming making Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored Glaze Steel | Use: | ROOF |
| Production Capacity: | 6-8m/min | Voltage: | 380v/as Your Requirement |
| Dimension(L*W*H): | 7000*1300*1200mm | Weight: | Aboutkg |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1200mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Certification: | CE |
| Color: | Can Be Choosen | Contailer: | 40fcl |
| Cutting Blade Material: | Cr 12 | Shaft Material: | C45 |
| Roller Material: | C45 | Plc: | Taiida |
| Decoiler: | Manual Decoiler | Main Motor Power: | 4kw |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | None |
| After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Video Technical Support | Port: | Tianjin |
Hot sale metal roofing panel roll forming machine
Glazed steel
sheet forming machine
1.Function and feature
The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.
2.Technical Parameters:
| NO. | Description | Specification |
| 1 | Main motor power | 4 kw |
| 2 | Hydraulic station power | 3kw |
| 3 | Yield stength | 32Mpa |
| 4 | Length of production line | 11m |
| 5 | Diameter of principal axis | 70mm |
| 6 | Tatal weight | 3.5T |
| 7 | Material of blade | Cr12 |
| 8 | Thickness of meterail | 0.3-0.8mm |
| 9 | Installation demensinon | 6*1.3*1.2m |
| 10 | Forming speed | 8-12m/min |
| 11 | Meterial of roll | 45#steel |
| 12 | Sprocket | p-25.4 |
| 13 | wanrrary | 12 month |
3.Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 70mm
Cutting blade: Cr12 mould steel with quenched treatment.
4.Payment terms
| Min.Order | 1set |
| Delivery time | Within 20 working days |
| Productivity | 30 sets per month |
| Packing | Fit for ocean shipping |
| Payment type | T/T 30%advance payment,balance payment should be paid before delivery |
| Export Markets | Global |
| Certificates | CE |

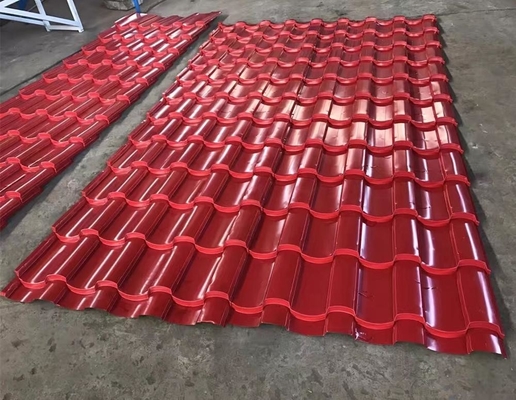

R1100 tile
Russian r15-1100
Flow chart of metal sheet rolling machine
CE and ISO certification
Company Information
Company Information:
Our company is a cold forming automatic production line manufacturer.which with greatest strength powerful technical force and complete sets of equipment.our company has been engaged in manufacturemore than 20 years .we have developed more than ten series of steel rol forming machines.such as production lines for wall&roof sheet ,color steel tile ,C&Z shape production line ,glazed tile.floor board .all kinds of sandwich panels,curving machine for roof sheets .etc.
We passed authentication of CE.
Technological innovation and management innovation is our relentless pursuit,we willfuly promote the product upgrading and development of the industry.
Trade Fair/Clients
Packaging & Shipping
Our products
1. Color Steel Forming machine
2. Double Layer Forming machine
3. Glazed Tile Forming machine
4. C&Z Purlin Forming machine
5. 3D Wall panel making machine
6. Highway Guardrail machine
7. Shutter Door Roll Forming machine
8. Bending, Shearing, Slitting machine
9. Floor Decking Forming machine
10. Sandwich Panel Production Line
11. Uncoiler, Decolier ...
