Steel Glazed Tile Forming Machine Galvanized Colored
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Farms, Restaurant, Home Use, Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | Make Tile |
| Production Capacity: | 2-6m/min | Voltage: | 380V |
| Dimension(L*W*H): | 6.5m*1.3m*1.2m | Weight: | 3-5 T |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Video Technical Support |
| Thickness To Process: | 0.3-0.8mm | Raw Material: | PPGI,PPGL,GI,GL |
| Shaft Diameter: | 75 Mm | Shaft Material: | 45# Steel |
| Shaft Type: | Solid | Control System: | PLC |
| Color: | Customizable | Roller Stations: | Based On Your Profile |
| Application: | Make Tile | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | None | Port: | Tianjin |

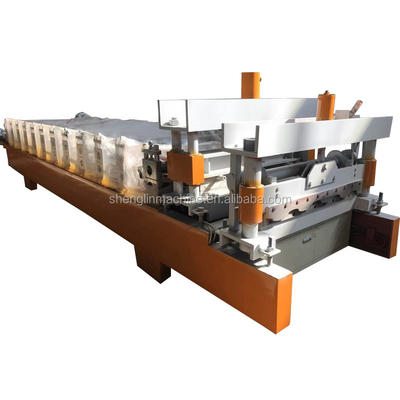

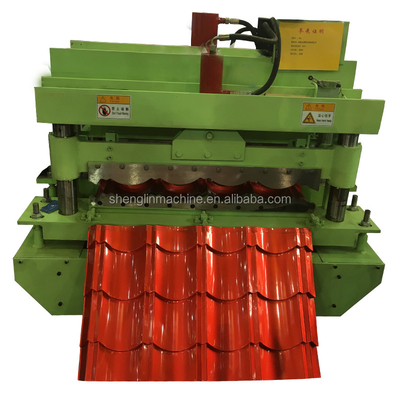

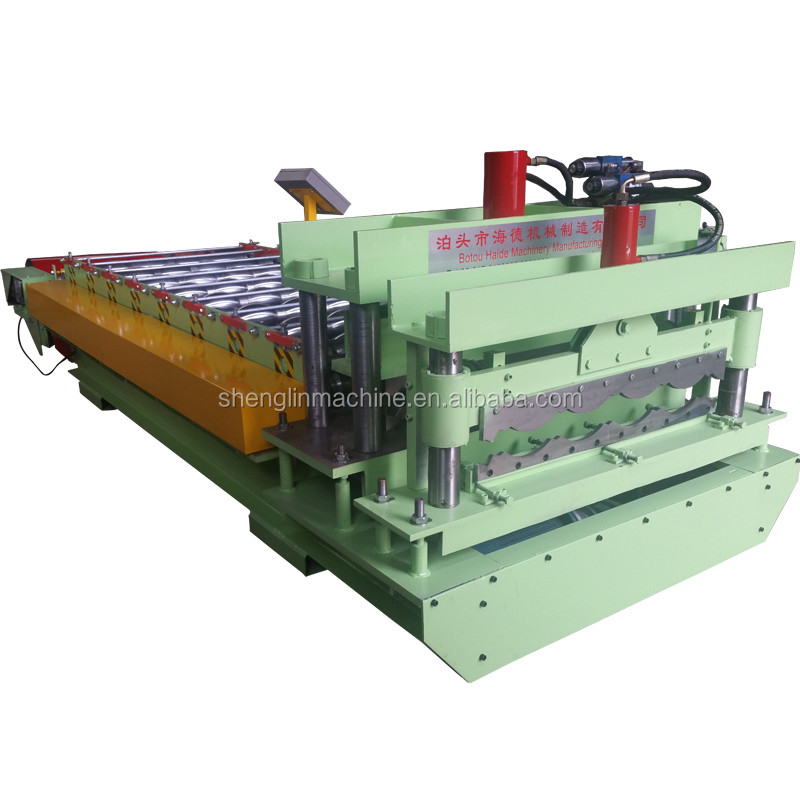

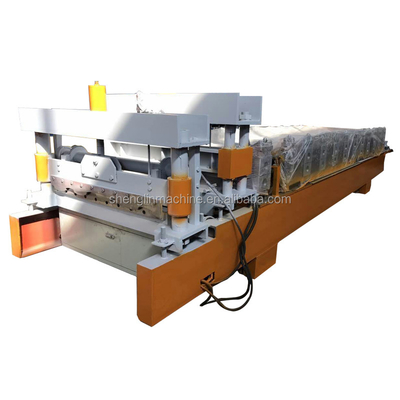

Galvanized colored steel glazed tile forming machine
PRODUCTS ATTRIBUTES
|
Types of glazed tile roll forming machine |
Type 828/1035 |
Type 820 |
Type 768 |
Type1100 |
|
Sample
|
|
|
|
|
|

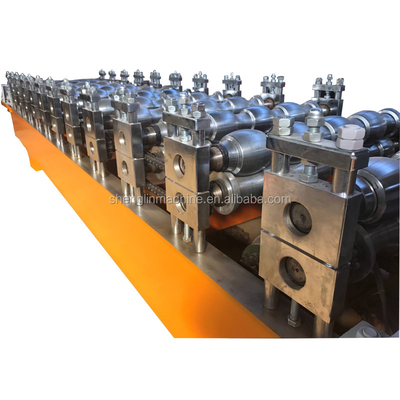

Roller stations |
9 |
15 |
15 |
12 |
|
Thickness |
0.3-0.8mm |
0.3-0.8mm |
0.3-0.8mm |
0.3-0.8mm |
|
Cutting type |
Pillar guide |
Pillar guide |
Pillar guide |
Pillar guide |
|
Shaft type |
solid |
solid |
solid |
solid |
|
Roller processing |
Quenching,chroming |
Quenching,chroming |
Quenching,chroming |
Quenching,chroming |
|
PLC |
Delta |
Delta |
Delta |
Delta |
|

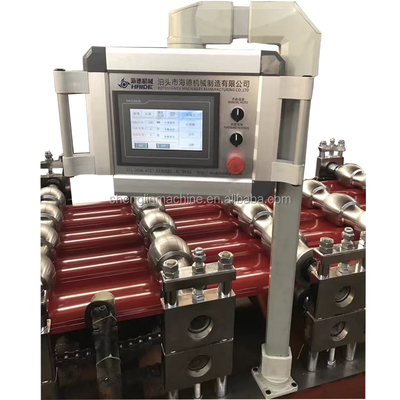

Computer screen |
Touch screen |
Touch screen |
Touch screen |
Touch screen |
|
Main motor |
4KW |
4KW |
4KW |
4KW |
|
Hydraulic motor |
4KW |
4KW |
4KW |
4KW |
|
Board thickness |
18mm |
18mm |
18mm |
18mm |
|
Machine frame |
300 H steel |
300 H steel |
300 H steel |
300 H steel |
|
Chain size |
1 inch |
1 inch |
1 inch |
1 inch |
PRODUCT DESCRIPTION
The glazed roll forming machine is mainly composed of decoiler , roll forming part ,stamping part ,hydraulic cutting part , computer control system , receiving table
Our machine production process is excellent, beautiful appearance, long life, the machine produced by the tile-type structured,we can do any types of equipment according to customer request
Decoiler - roll forming device - computer control device - hydraulic cut device - output table
PRODUCT APPLICATION

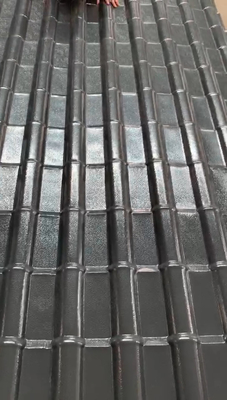

Glazed tiles for a wide range of applications: villas, residential buildings, flat to slope, stations, public facilities, landscape rooms and other light steel roof, cast-in-place concrete structure roof, wood roof. Product color can be customized according to your needs, so as to meet the needs of customers and the style of housing to ensure the quality of the roof at the same time to do beautiful and generous.With low cost, simple and convenient , fast characteristics.
Our Services
Packaging & Shipping
FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 35 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 1 years warranty .,All of the technical personnel are ready to serve you at any time.
5. Q:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good after-sales service, its free of charge during the warranty period.
