corrugated iron roofing sheet roll forming making machine made in China
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored | Use: | ROOF |
| Production Capacity: | 3-8m/min | Voltage: | 380V Or As Your Need, Customer Requirements |
| Dimension(L*W*H): | 6300*1300*1200mm | Weight: | 5 Ton |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Field Maintenance And Repair Service, Video Technical Support |
| Color: | Blue,Red,or As Your Need | Roller Material: | C45 |
| Shaft Material: | C45 | Material: | PPGI GI ALUZINC |
| Cutter Material: | Cr12 Quenching Treatment | Plc: | Delta Touch Screen Or Requirements |
| Thickness: | 0.3--0.8mm | Advantage: | Long Working Life |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Port: | Tianjin Port |
corrugated iron roofing sheet roll forming making machine made in China
corrugated roll forming machine roofing roll forming machine metal sheet making machine
A. Technical parameter
1.Material
Typle:Colored steel
Thickness:0.3-0.8
Yield strength:230-300
2.Max.Forming speed:4-5m/min
3.Material of roller:45# steel with chrome
4.Roller driven type:Chain transmission
5.Controller:PLC (OMRON from Japan)
6.Operation:Touch screen+button
7.Hydraulic system pressure:12 Mpa
9.Hydraulic station motor power:5.5 KW
10.Main motor power:4 KW
11.Total power:9.5 KW
B. The picture show

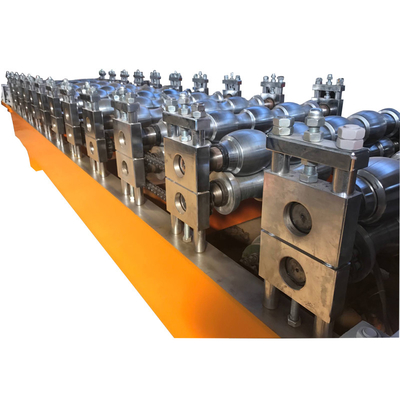

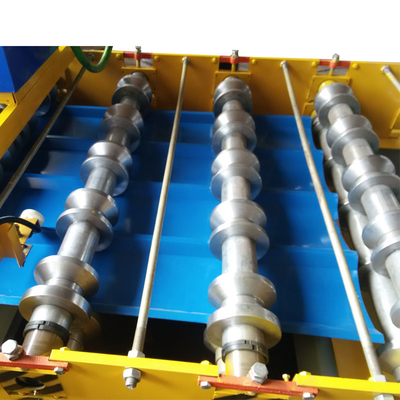

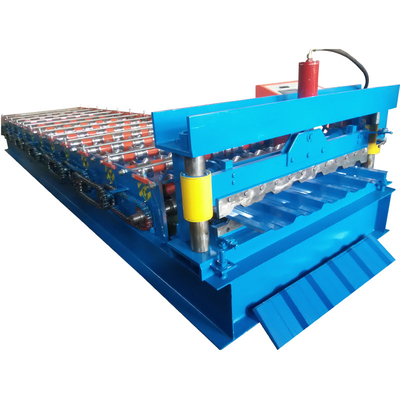

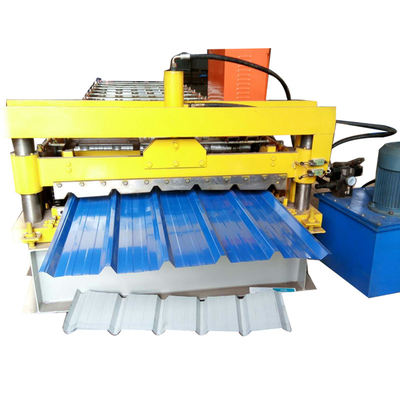

The machine

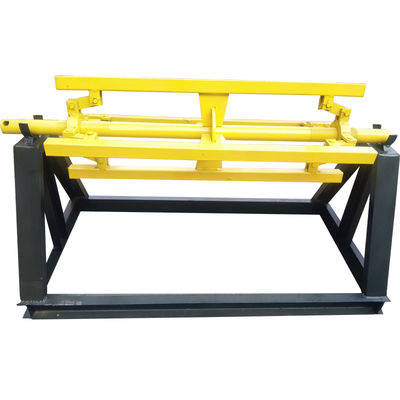

The decoiler
The receiving table
The product
loading
application
C.Process of line:
Decoiler-active feeding-coil strip leveing -roll forming -measure length-cut to length-output table
D. Warranty, Year warranty
During the warranty period, maintain and change the spare parts for the customers for free
(except for the instrument damage caused by human factors or natural disasters.) And provide
technical support for life-long.
We are capable of designing machine totally as your panel sample and profile drawing.
E. Have earn cetification of ISO9001 and CE cetification
Clients visit our factory
Please no hesitate to contact us.
Warmly welcome to visit our factory and order machine, we promise to provide you machine with best quality!
