Hot Sale Corrugated Forming Machine Sheet Metal Roll Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | ROOF |
| Production Capacity: | 10-15m/min | Voltage: | 380V 50HZ 3 Phase |
| Dimension(L*W*H): | 7*1.6*1.3m | Weight: | About 5 Tons |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine | Color: | As Require |
| Steps Of Forming Roller: | 9 Rows | Speed: | 10-15m/min |
| Thickness: | 0.3~0.7mm | Diameter Of Roller: | 75mm |
| Hydraulic Power: | 4kw | Main Motor Power: | 4kw |
| Roller Material: | 45# Steel | Middle Plate: | 14mm |
| Main Frame: | 300H Steel | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | None | After-sales Service Provided: | Online Support, Free Spare Parts, Video Technical Support |
| Port: | Tianjin |
Trade Assurance Supplier

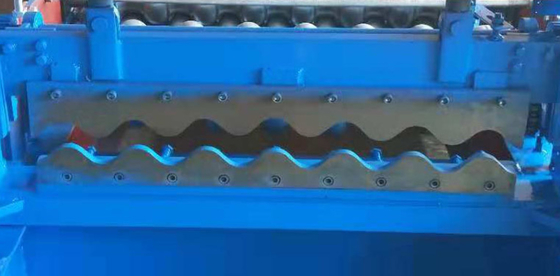

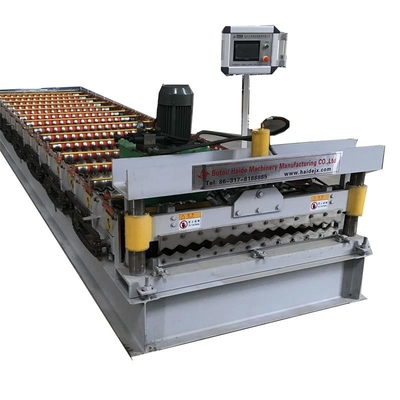

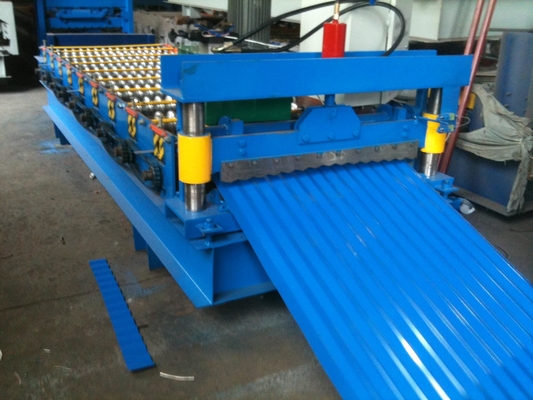

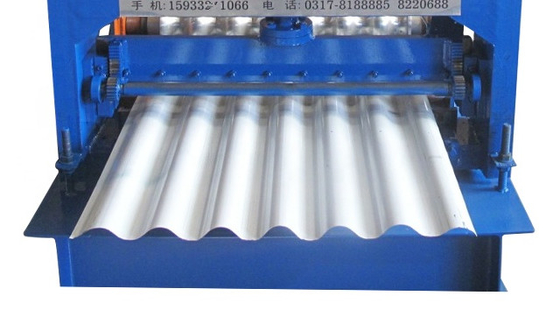

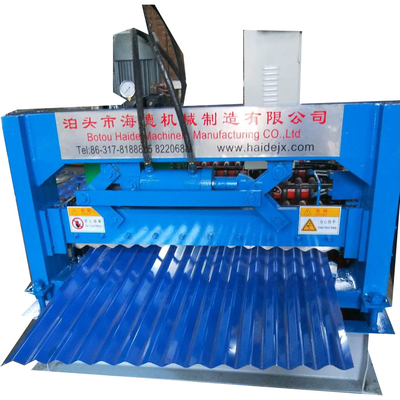

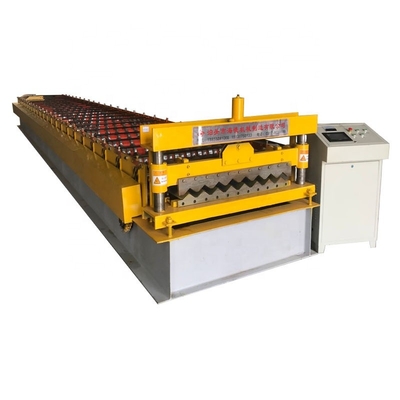

Corrugated sheet metal machine
Machine specification
| width of material | 1000/1200mm |
| thickness of plates | 0.3-0.7mm |
| forming speed | 10-15m/min |
| forming steps for up layer | 9 rows |
| roller material | GCR12 bearing steel |
| motor power | 4kw |
| motor brand | Delta |
| hydraulic station power | 4kw |
| voltage | 380V 50HZ 3 Phase |
| length*width *height of the machine | 7*1.6*1.3m |
| roller material | 45# steel |
| diameter of roller | 75mm |
| main frame | 350H steel |
| middle plate | 14mm |
| blade material | Cr12 |
| chain | 1 inch |
Also you can send me your profile drawing,and we design machine following your instructions.
We are glad to grow up with you more and more suggestions.
Corrugated machine-850 type
Production Flow
Machine components
| 1 | automatic decoiler | 1 set |
| 2 | feeding guiding device | 1 set |
| 3 | leveling device | 1 set |
| 4 | servo feeder device | 1 set |
| 5 | punching machine | 1 set |
| 6 | roll forming machine | 1 set |
| 7 | servo track cutting device | 1 set |
| 8 | computer control box | 2 sets |
| 9 | products stand tables | 3 sets |
| 10 | tools | 1 suit |
Loading Details
More machines we can manufacturer for you to choose.
Company information
Canton Fair
why choose us
Why us?
The quality we provide---outstanding quality assurance.
The serice we provide---we take care of your order.
1.meet your new various size requirements
2.new OEM packing is available.
Print your logo with different languages & colours
3.new designing is available
certification and honor
Thank you for viewing our website.
And you are warmly welcomed to visit our factory any time,and welcome your order!!!
