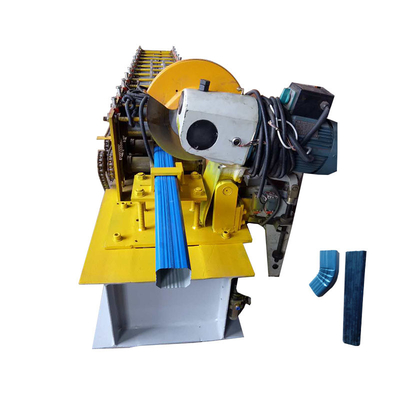

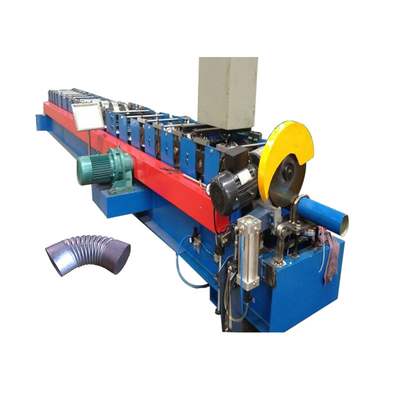

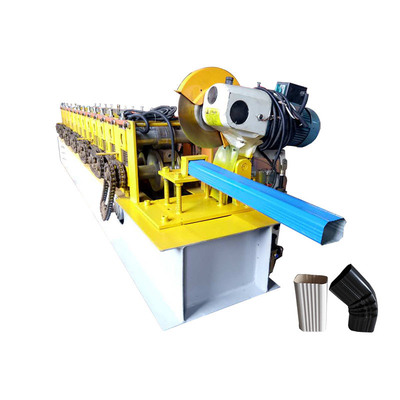

Construction Rain Water Downspout Roll Forming Machine Gutter Steel Making Machine Price
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Glaze Steel | Use: | ROOF |
| Production Capacity: | HD 33-33 | Power: | 11KW |
| Voltage: | 380V | Dimension(L*W*H): | 8.5*1.3*1.2M |
| Weight: | 5.5TON | Warranty: | 1Y |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Name: | Construction Rain Water Gutter Steel Making Machine Price |
| Raw Material: | PPGI PPGL GI GL | Application: | Make Downspout |
| Thickness To Process: | 0.5-0.7mm | Shaft Diameter: | 70mm |
| Shaft Material: | 45# Steel | Roller Material: | 45# Steel With Quenching And Chroming |
| Control System: | PLC | Roller Stations: | Based On Your Profile |
| Color: | Customizable | Port: | Tianjin |
Construction rain water gutter steel making machine price
Specification
|
Types of downspout roll forming machine |
Round type | Square type |
| Sample | |
|
| Roller stations | 20 | 20 |
| Thickness | 0.5-0.7mm | 0.5-0.7mm |
| Cutting type | Fly saw cutting /mould cutting | Fly saw cutting / mould cutting |
| Shaft type | solid | solid |
| Roller processing | Quenching,chroming | Quenching,chroming |
| PLC | Delta | Delta |
| Computer screen | Touch screen | Touch screen |
| Main motor | 11KW | 11KW |
| Hydraulic motor | 5.5KW | 5.5KW |
| Board thickness | 18mm | 18mm |
| Machine frame | 400 H steel | 400 H steel |
| Chain size | 1 inch | 1 inch |
working principle
Hydraulic decoiler — straightening — Roll forming M/C — PLC control system — Hydraulic pressing&cutting — Production stand
product details
The downspout produced by our downspout roll forming machine with good bending compression performance, flatness is good, automatic fixed length cutting, automatic punching, high degree of automation, fast and convenient installation.

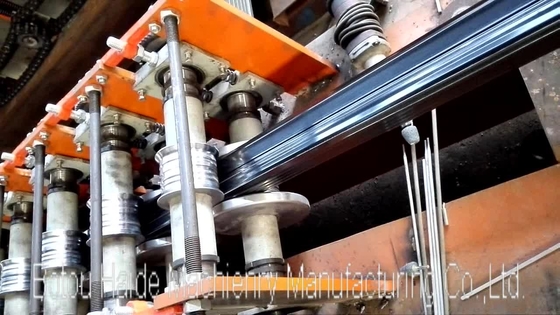

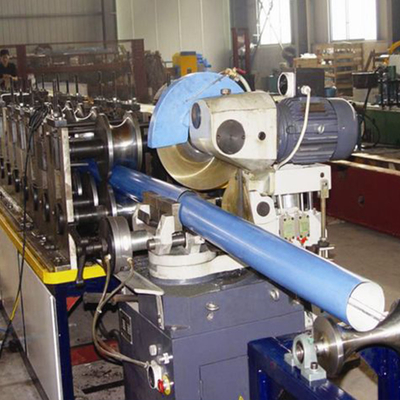

Production process
Our customers
Company Information
Our company is a manufacturer with strong technologies for cold-forming equipment and its whole automatic production line . Our products are mainly used for IBR ,corrugated , glazed tile roll forming machines ,as well as the C Z purlin machine , light keel steel machine,shutter door machine,floor decking machine etc . On the strength of our strong technologies and manufacturing experience, we always place the customers'interests first and know that our sucess lies on the customer's success and development. From design to after-service, this principle is observed. By using our products,customers may improve efficiency , reduce costs and enhance competitive power.
FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 35 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 2 years warranty.All of the technical personnel are ready to serve you at any time.
5. Q:Can you make the machine according to my design or photo type?
A: Yes.We have an experienced team for working out the most suitable design and production plan for the machine that make the machine according to my design or photo type?
A: Yes.We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good after-sales service, its free of charge during the warranty period.
