Hot Selling Floor Deck Roll Forming Machine Roof Sheets Making Machines
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Roll Forming Machine |
| Tile Type: | Steel | Use: | ROOF |
| Production Capacity: | 15 M/min | Voltage: | 380v/415v/440v/220v |
| Dimension(L*W*H): | 16000mm*2500mm*1500mm | Weight: | 16000 Kg |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Rolling Thinckness: | 0.8-1.2mm | Feeding Width: | 1200mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Material: | Steel |
| Raw Material: | Galvanized Sheet | Shaft Diamter: | 95mm |
| Shaft Material: | No.45 Steel | Roller Material: | No. 45 Steel Chromed |
| Transmission: | Chain | Chain Size: | 2'' |
| Motor Power: | 22kw | Hydraulic Power: | 5.5kw |
| Cutter Material: | Cr12 | Port: | Tianjin Port |
floor decking roof sheets making machines

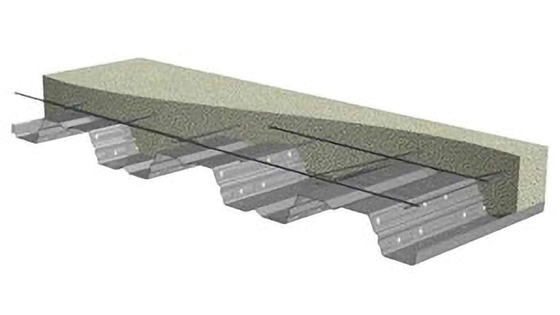

1. What Is decking roof sheets(metal decking)?

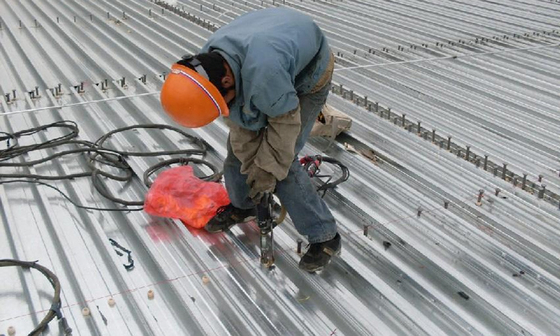

decking roof sheets is corrugated metal sheeting that’s used as a structural roof deck or composite floor deck. It will be supported by steel beams or joists The purpose of metal deck is to support the insulating membrane of a roof or to support and bond with the concrete to create a composite metal floor deck.
2. How to make decking floor roof sheets?
Decking floor sheets are made by a roll forming machine or roll former by cold bending technology.

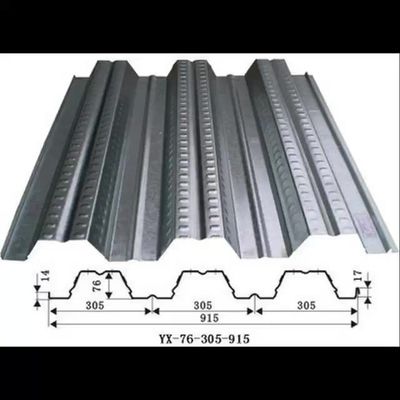

3.Drawing profile
4. working process

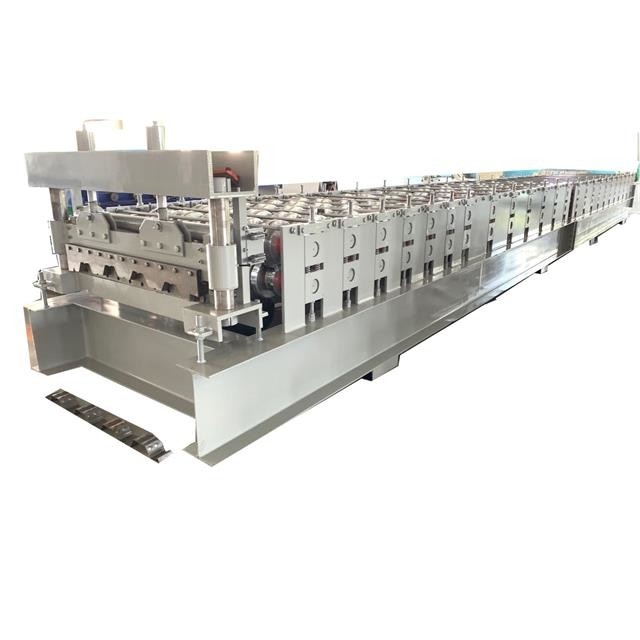

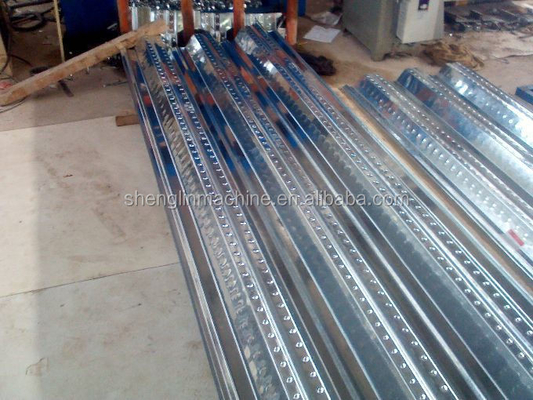

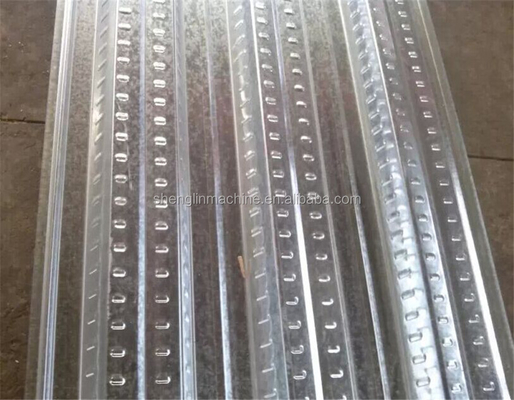

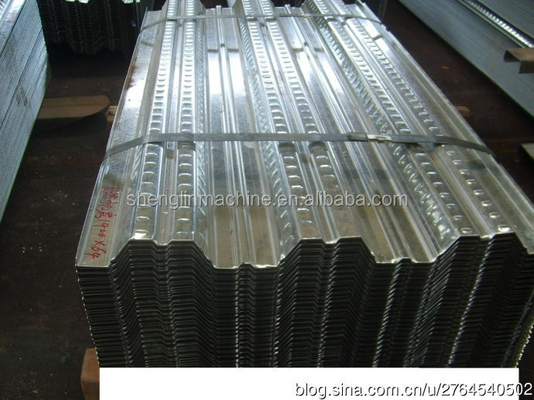

5. Pictures of deck floor roll forming machine
6 Technical details
| Name of machine | 915 (36''deck floor roll forming machine) |
| effective width | 915mm |
| raw material thickness | 0.8-1.2mm |
| raw material | galvanized steel, zinc-alloy steel |
|
Shaft material |
No.45 steel, diamater 95mm |
| Roller material | No.45 steel, chrome plated 0.05mm |
| rows of rollers | 29 rows |
| chain | 2'' |
| main power | 22kw |
| hydraulic power | 5.5kw |
7 Packing List
| deck floor machine | 1 |
| hydraulic station | 1 |
| electronic box | 1 |
| decoiler | 5 ton load |
