Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler

Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: Haide
Certification: CE,ISO
Payment & Shipping Terms:
Price: $5,000.00/Sets 1-2 Sets
Packaging Details: nude, imported computer control system packed with waterproof cloth.
Supply Ability: 30 Set/Sets per Month fully auto decoiler
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Advertising Company Showroom Location: None
Condition: New Type: Decoiler
Tile Type: Steel Use: ROOF
Production Capacity: 10-20m/min Voltage: 380V/50HZ/3phase
Dimension(L*W*H): L*W*G 2.6m*1.3m*1.5m Weight: Around 3 Tons
Warranty: 1 Year Key Selling Points: Long Service Life
Rolling Thinckness: 0.3-0.8mm Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Pump, Engine After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Field Maintenance And Repair Service, Video Technical Support
Color: As Your Request Brand: Haide
Origin Of Country: Hebei,China Type: 3ton ,5ton ,10 Ton As Your Request
Certification: CE&ISO9001 Power: 4kw
Business Type: Manufacturer Manufacturing Experience: 20 Years
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: None
Port: Xingang,tianjin, China

steel coil hydraulic or electric or manual uncoiler or decoiler











Capacity  1/3/5/10 tons
Coils width  less or equal to 1250mm
Machine frame  350H steel ,20mm steel frame welded
Rough dimention L*W*H :2.6M*1.3M *1.5M
Main motor 4kw
Tension drive Hydraulic type
Hydraulic motor  3KW
Coil inside diameter 450-550mm
Control system  4KW
Weight  3 tons



Detailed Images

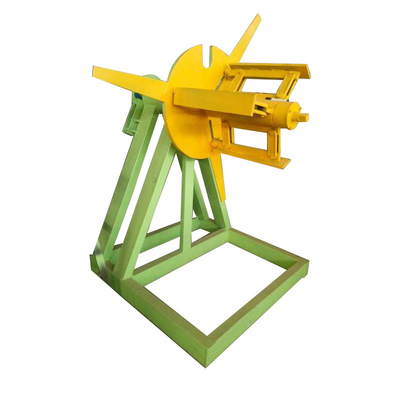

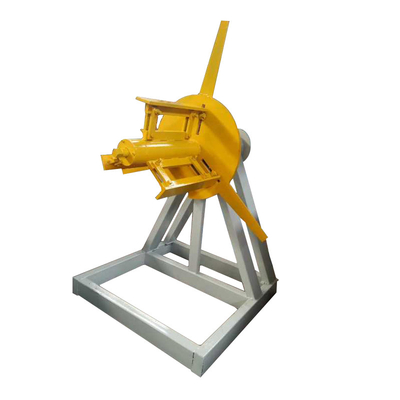

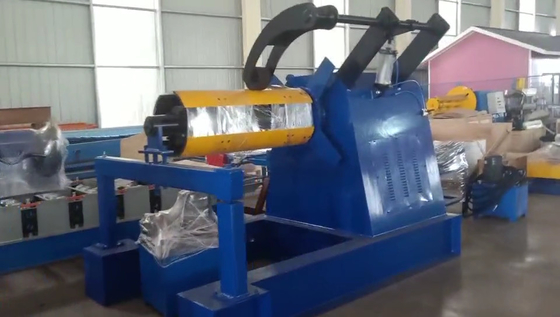

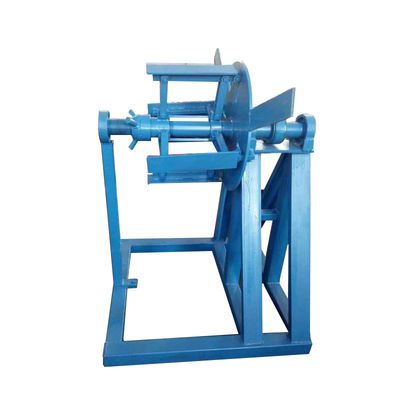

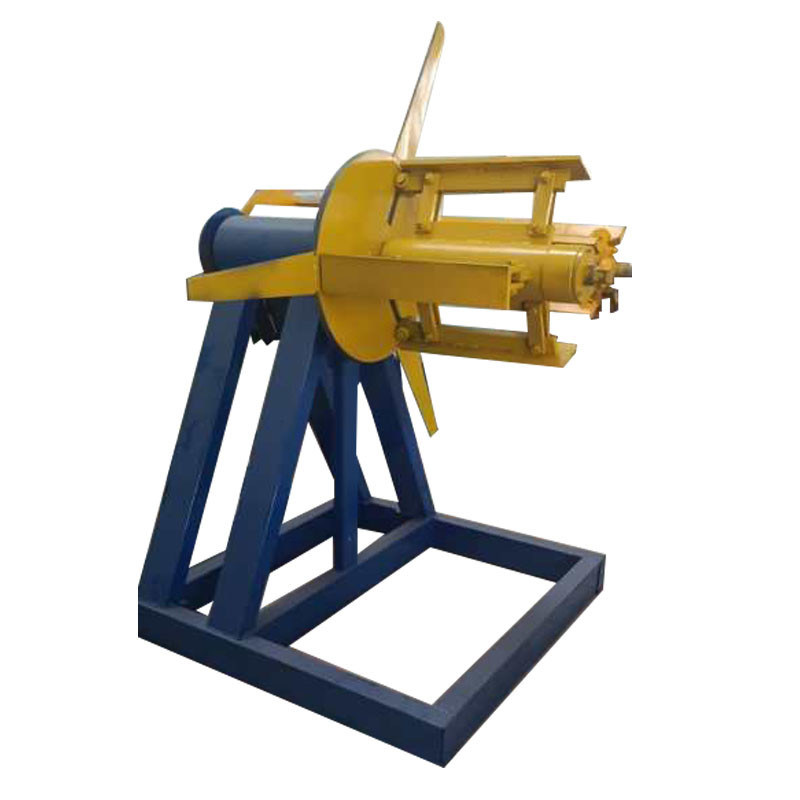

 Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 0Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 1Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 2Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 3Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 4Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 5

Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 6Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 7Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 8

Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 9Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 10

Our Services

1.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country

2.You can send your men to our factory. we will teach them how to operate the machine without training charges

3.Actually there is another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line  how to operate the machine.



4.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support



Company Information

Brief introduction of our factory



Haidemachinery manufacturer co.,Ltd. is located in botou - the home of roll forming machine . With 20 years of production experience ,we can offer you good quality machine at favourable price .Our main products as below:



1.Roof and wall panel forming machines

2.Corrugated tile roll forming machine

3.Double layer roll-forming machine

4.Joint hidden roll forming machine

5.Downspout and waterspout roll forming machine

6.Metal roll forming machine

7.Sandwich panel roll forming machine

8.Shearing bend slitting Uncoiler curving machine

9.Russia roll forming machinery

10.Especially for Asia type ,Russia type and Africa type





  Company whole view



Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 11





FAQ

1. Are you manufacturer?

Yes, we are manufacturer with 20 years experience , we sell machine both domestic market and international market



2. What information you need before quote me?

We need your profile drawing and raw material thickness ?



3. What payment terms you accept?

T/T and L/C both ok with us



4. Can you make machine according to my design or photo type ?

Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.



5. What is the warranty for our machine?

We have one year guarantee, and provide whole life's technical support



6. Is there any spare part send for free?

Yes, Oil pipe , buttons , limited switch ,relay



7.Do you also sell coils ?



We do not sell raw material directly ,but I can recommed you good raw material supplier , you can contact with them directly .



8.Do you have instruction manuals ?



We will provide instruction manuals , operation video



9.What kind of controls do you use on your machine ?



AMS, Delta, Schneider, Siemens, and Mitsubishi



10.Is engineer available to service overseas market ?



Yes , we can send technician to your company for installation and adjustment , Training your workers to operate the machine . Buyer should charge for visa,round ticket ,food and accommodation overseas and $100/person/day for salary .



11.How many workers is needed for the machine operation ?



One worker is enough ,as the machine can be connected with a computer to have an   automatic cutting system



12:How to go to our company?



Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick you up there and drive you to our factory for a visit

Fly to Tianjin Airport: then we can pick up you.

If any questions,you can call me mobile phone at any times:0086-18233760625



13.How to contact us ?



Send your inquiry details in the below for free sample , Click “Send ” Now !



Steel Coil Sheet Decoiling Machine Manual Uncoiler Or Decoiler 12
