Exterior Wall 3d Color Panel Making Machine/3D Panel/3d Plane Machine

                                                   3D Wall and Ceiling Panel Making Machine

    The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the wall of market,shop,adverting board,any building wall.

    The production is very easy to installing,if you need,we can send you install video.

Part 1 Instruction

This line include three machines:

1. Press machine with mold---for forming the panel

2. Cutting machine---for cutting the coil into pieces and also cut the four corners

3. Light steel roll forming machine---for forming the steel to fix the panels

Part 2 Specification for each machine

1. Press machine(with five molds for free)

 1.1 100T/160T three-beam four-column press machine

 1.2 Final Board/Plate size: 300mm*300mm/600mm*600mm

 1.3 Raw material width: 330mm/660mm

 1.4 Raw material thickness: 0.3-0.4mm

 1.5 Hydraulic station power : 7.5kw

 1.6 Quick exchange of molds

 1.7 Eye protection device

 1.8 Computer box : Delta PLC,counting function

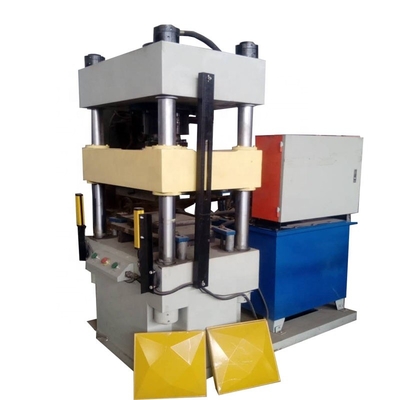

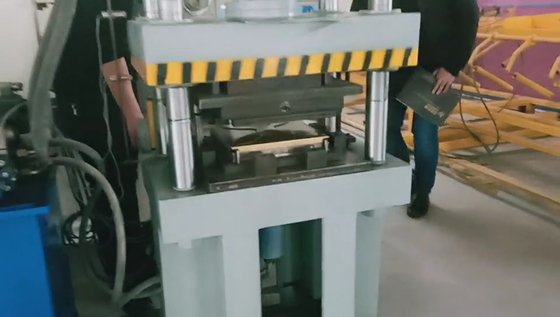

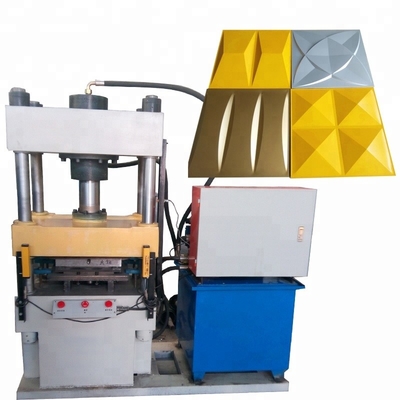

 1.9 Machine look like the following picture:

2.Cutting machine(with a small manual decoiler behind)

 2.1 Main power: 4KW

 2.2 Cutting speed: 50-60 pcs/min

 2.3 Electric driven

 2.4 Volt: 380V, 50HZ, 3 phase

 2.5 Machine same like the following picture:

3.Light steel roll forming machine

 3.1 Station: 12 rows forming rollers

 3.2 Shaft diameter: 40mm

 3.3 Main power: 2.2KW

 3.4 Board thickness:12mm

 3.5 Fly-saw cutting and chain transport

 3.6 Machine looks like the following picture:

Part 3 Different designs for mold

1. For molds,there are 36 kinds for you to choose from,and you can send me your designed mold,we customize it for you.

2. The machine has 5 molds for free.

The following are some designs:

The designs cataloge: you can choose five molds, or send me you own design

Widely Use:
