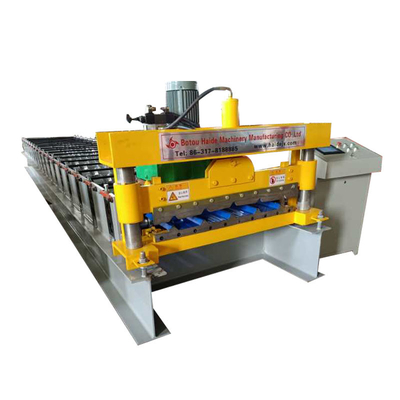

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IBR Color Steel Sheet Roof Panel Making Roll Forming Machine Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: haide
Certification: CE, CE/ISO9000
Payment & Shipping Terms:
Price: $7,800.00/Sets 1-1 Sets
Packaging Details: 1. Fastened in container with steel wire rope and angel irons. <br>2..Main machine and un-coiler are covered by water-proof plastic.<br>3. PLC control system and motor pump are packed in wooden box.
Supply Ability: 3 Set/Sets per Month High Quality IBR Color Steel Metal Sheet Roofing Panel Roll Form
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works Showroom Location: None
Condition: New Type: Tile Forming Machine
Tile Type: Steel Use: ROOF
Production Capacity: 10-15m/min Voltage: 380V
Dimension(L*W*H): 6500*1300*1100mm Weight: 3-5 TON
Warranty: 1 Year, 1 Year Key Selling Points: Long Service Life
Rolling Thinckness: 0.3-0.8mm Feeding Width: 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Video Technical Support
Color: Red /blue /grey Material Thickness: 0.3-0.8mm
Forming Method: Synchronous Material: Steel Or Aluminum
Control System: PLC Cutting Blade Material: Cr12
Application: Make Roof Tile After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None Port: Tianjin Port

High Quality IBR Color Steel Metal Sheet Roof Panel Roll Forming Machine

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 0

PRODUCTS ATTRIBUTES

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 2

Types of

roll forming machine



Type 840



Type 850



Type 750



Type 900



  Sample

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 3

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 4

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 5

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 6

Roller stations

11

9

18

10

Thickness

0.3-0.8mm

0.3-0.8mm

0.3-0.8mm

0.3-0.8mm

Cutting type

Pillar guide

Pillar guide

Pillar guide

Pillar guide

Shaft type

solid

solid

solid

solid

Roller processing

Quenching,

chroming

Quenching,

chroming

Quenching,

chroming

Quenching,

chroming

PLC

Delta

Delta

Delta

Delta

Computer screen

Touch

screen

Touch

screen

Touch

screen

Touch

screen

Main motor

4KW

4KW

5.5KW

4KW

Hydraulic motor

3KW

3KW

4KW

3KW

Board thickness

18mm

18mm

18mm

18mm

Machine frame

300 H steel

300 H steel

350 H steel

300 H steel

Chain size

1 inch

1 inch

1 inch

1 inch

PRODUCT DESCRIPTION

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 7

IBR Roof Panel Roll Forming Machine is mainly composed of decoiler roll forming part ,stamping part ,hydraulic cutting part , computer control system , receiving table

Our roll forming machine production process is excellent, beautiful appearance, long life, the machine produced by the tile-type structured,we can do any types of equipment according to customer request

WHY CHOOSE US

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 8

Decoiler---Main Roll forming machine system---Electric controlling system---Automatic cutting---Receiving table

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 9

PRODUCT APPLICATION



IBR color steel panel from the roll forming machine for a wide range of applications: villas, residential buildings, flat to slope, stations, public facilities, landscape rooms and other light steel roof, cast-in-place concrete structure roof, wood roof. Product color can be customized according to your needs, so as to meet the needs of customers and the style of housing to ensure the quality of the roof at the same time to do beautiful and generous.With low cost, simple and convenient,fast characteristics.

Our Services

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 10



IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 11









Company Information

IBR Color Steel Sheet Roof Panel Making Roll Forming Machine 12



FAQ

1. Q: What is the MOQ?

     A:  1 set.



2. Q: What is the Delivery time?

     A: Within 35 workdays.



3. Q: What is the Payment terms you can accept?

     A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.



4. Q: What is the Warranty?

     A: Within 2 years warranty .,All of the technical personnel are ready to serve you at any time.



5. Q:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us



6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.

    2.We can send the technicians to the buyer`s factory for the installation of the machine.

    3.Good after-sales service, its free of charge during the warranty period.
