Roof Panel Roll Forming Machine Roof Sheet Metal Tile Making Machine Price

Roof Panel Roll Forming Machine Roof Sheet Metal Tile Making Machine Price

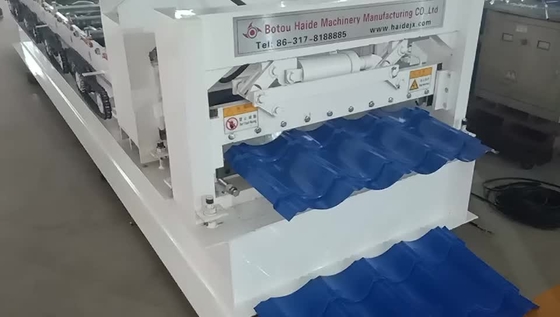

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Roof Panel Roll Forming Machine Roof Sheet Metal Tile Making Machine Price Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: HaiDe
Certification: CE, CE
Payment & Shipping Terms:
Price: $11,000.00/Sets 1-1 Sets
Packaging Details: Nude in the container or as your requires
Supply Ability: 20 Set/Sets per Month We could be more efficient if you are in urgent need
Detailed Product Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works Showroom Location: None
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel Use: WALL
Production Capacity: 15-20m/min Voltage: 380V/50HZ/3phase
Dimension(L*W*H): Customized Weight: 3.5 Tons
Warranty: 1 Year Key Selling Points: Easy To Operate
Rolling Thinckness: 0.3-0.8mm Feeding Width: 915mm, 1200mm, 1000mm, 1250mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC Thickness: 0.3--0.8mm
Control System: Delta Roller Material: Carbon 45# Steel
Cutting Blade Material: Cr 12 Cutting Type: Hydraulic Cutting
Shaft Material: C45 Frame Material: 350H
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service Local Service Location: None
After-sales Service Provided: Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support Port: TianJin



Roof panel roll forming machine  roof sheet metal tile making machine price



Main Technical Parameters

Type  SL840 tile roll forming machine
Material  Spec colored steel sheet, galvanized steel sheet
 main motor power 4.0kw
 forming speed 8-10m/min
Diameter of roller 70 millimeter
 Thickness of Coil Sheet

0.3-0.8 millimeter

  the width of the colored sheet 1000 millimeter
the effective of steel sheet 840 millimeter
Hydraulic station pressure 3 kw
Hydraulic pressure 10 - 12Mpa
Total Weight about 2.5ton
Voltage 380 volt
Roll stand  11groups
PLC Computer adopt PLC, Mitsubishi FX-IS series
Dimension  6.0m*1.3m*1.2m
Roller material high grade No.45 forged steel, plated hard chrome onthe surface of roller with thickness 0.05 millimeter
Frequency converter containing
Computer operating screen MT6056 from Taiwan
Rotary Encoder OMRON
Material of cutter Cr12

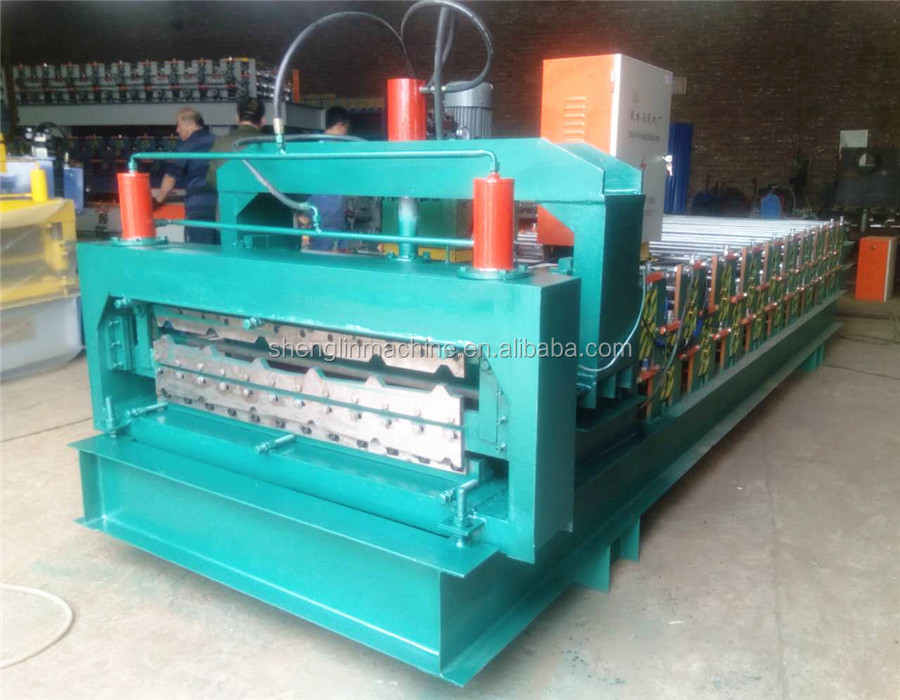

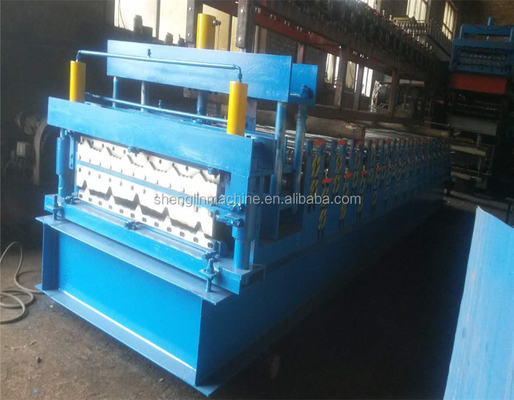

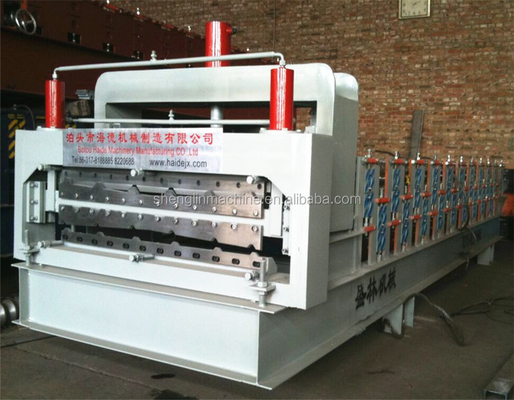

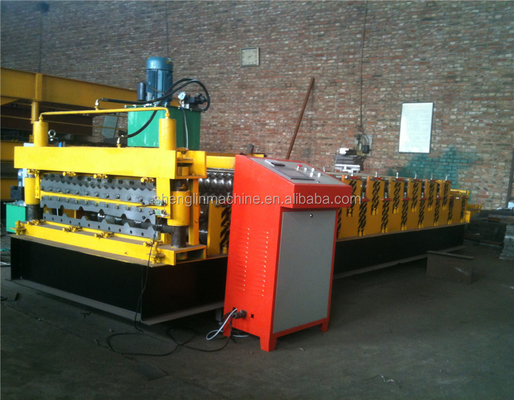

 Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 0Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 1Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 2Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 3

package & shapping

 Packaging :



1. Tighten to container with steel wire rope and welded machine with container by angel iron

2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)

3. PLC contral system and motor pump are packed in wooden box with water proof paper coverage

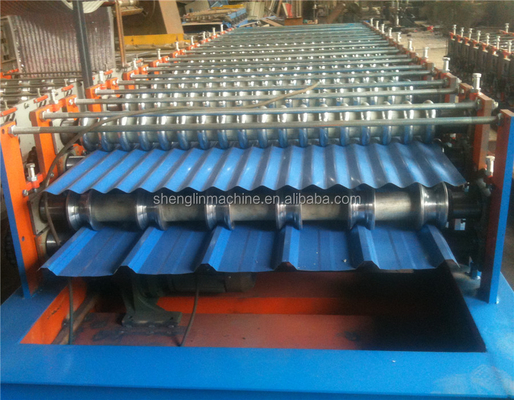

Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 4



Shipping :

Around 30 days upon received your downpayment .

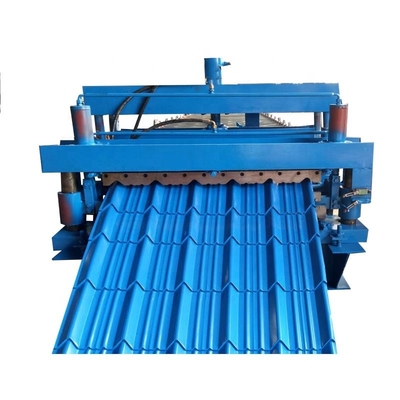

Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 5

Company Information

Company Information:

    Our company is a cold forming automatic production line manufacturer.which with greatest strength powerful technical force and complete sets of equipment.our company has been engaged in manufacturemore than 20 years .we have developed more than ten series of steel rol forming machines.such as production lines for wall&roof sheet ,color steel tile ,C&Z shape production line ,glazed tile.floor board .all kinds of sandwich panels,curving machine for roof sheets .etc.

   We passed authentication of CE.

   Technological innovation and management innovation is our relentless pursuit,we willfuly promote the product upgrading and development of the industry.

Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 6

Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 7

Certifications



Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 8Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 9Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 10



Trade Fair/Clients

Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 11Roof Panel Roll Forming Machine  Roof Sheet Metal Tile Making Machine Price 12

FAQ

1. Q: What is the MOQ?

     A:  1 set.



2. Q: What is the Delivery time?

     A: Within 35 workdays.



3. Q: What is the Payment terms you can accept?

     A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.



4. Q: What is the Warranty?

     A: Within 2 years warranty .,All of the technical personnel are ready to serve you at any time.



5. Q:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us



6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.

    2.We can send the technicians to the buyer`s factory for the installation of the machine.

    3.Good after-sales service, its free of charge during the warranty period.
