Steel Metal Sheet Roll Forming Ibr Roof Making Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Food Shop, Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | ROOF |
| Production Capacity: | 10-15m/min | Voltage: | 380V 50Hz 3phases |
| Dimension(L*W*H): | 6500*1300*1100mm | Weight: | 3-5 TON |
| Warranty: | 1 Year, 1 Year | Key Selling Points: | Easy To Operate |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1220mm, 1200mm, 1000mm, 1250mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Pump, Gearbox, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Field Maintenance And Repair Service, Video Technical Support |
| Color: | Red /blue /grey | Forming Method: | Synchronous |
| Material: | Steel Or Aluminum | Material Thickness: | 0.3-0.8mm |
| Cutting Blade Material: | Cr12 | Application: | Working As Roof Tiles |
| Control System: | PLC | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Port: | Tianjin Port |
Ibr roof making machine
PRODUCTS ATTRIBUTES
|
Types of roll forming machine |
Type 840 |
Type 850 |
Type 750 |
Type 900 |
|
Sample |
|
|
|
|
|

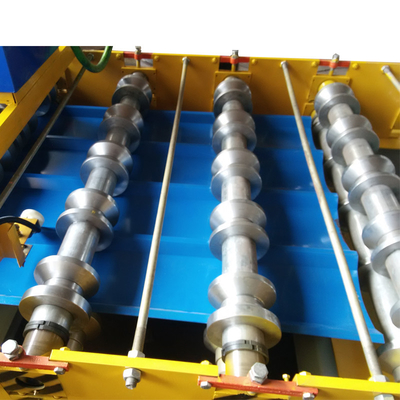

Roller stations |
11 |
9 |
18 |
10 |
|
Thickness |
0.3-0.8mm |
0.3-0.8mm |
0.3-0.8mm |
0.3-0.8mm |
|
Cutting type |
Pillar guide |
Pillar guide |
Pillar guide |
Pillar guide |
|
Shaft type |
solid |
solid |
solid |
solid |
|
Roller processing |
Quenching, chroming |
Quenching, chroming |
Quenching, chroming |
Quenching, chroming |
|
PLC |
Delta |
Delta |
Delta |
Delta |
|
Computer screen |
Touch screen |
Touch screen |
Touch screen |
Touch screen |
|
Main motor |
4KW |
4KW |
5.5KW |
4KW |
|
Hydraulic motor |
3KW |
3KW |
4KW |
3KW |
|
Board thickness |
18mm |
18mm |
18mm |
18mm |
|
Machine frame |
300 H steel |
300 H steel |
350 H steel |
300 H steel |
|
Chain size |
1 inch |
1 inch |
1 inch |
1 inch |
PRODUCT DESCRIPTION

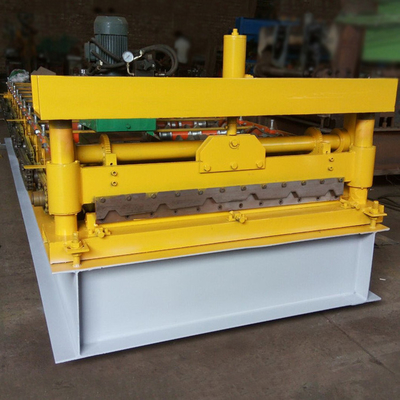

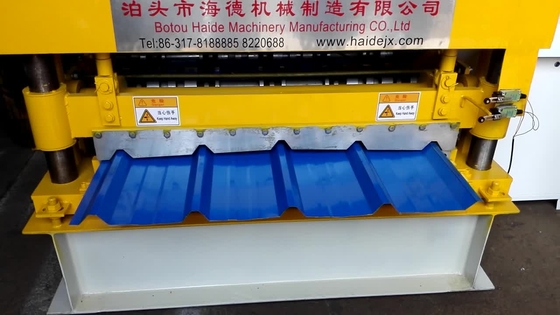

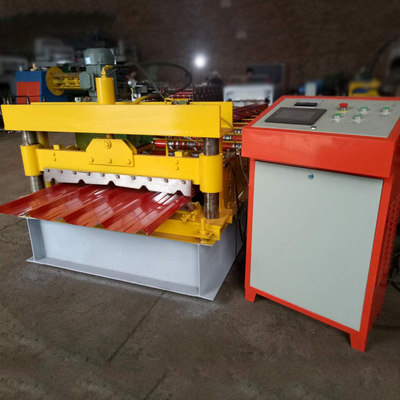

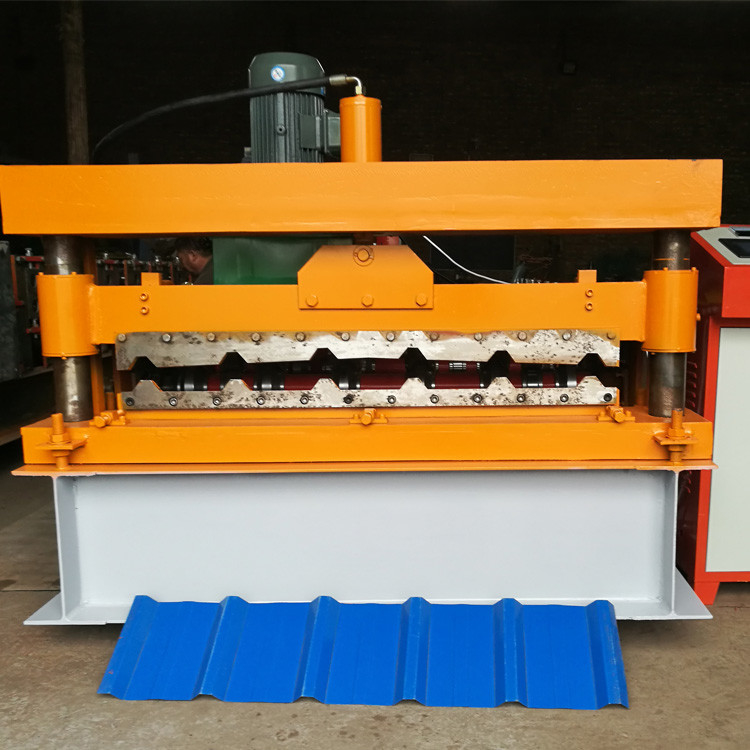

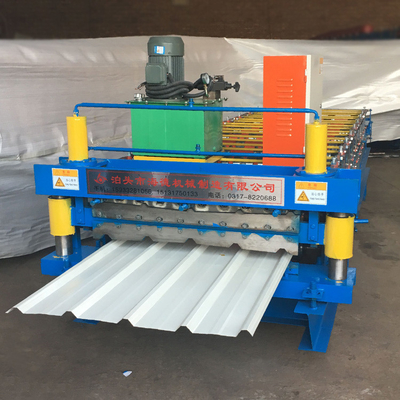

IBR Roof Panel Roll Forming Machine is mainly composed of decoiler roll forming part ,stamping part ,hydraulic cutting part , computer control system , receiving table
Our roll forming machine production process is excellent, beautiful appearance, long life, the machine produced by the tile-type structured,we can do any types of equipment according to customer request
WHY CHOOSE US
Decoiler---Main Roll forming machine system---Electric controlling system---Automatic cutting---Receiving table
PRODUCT APPLICATION

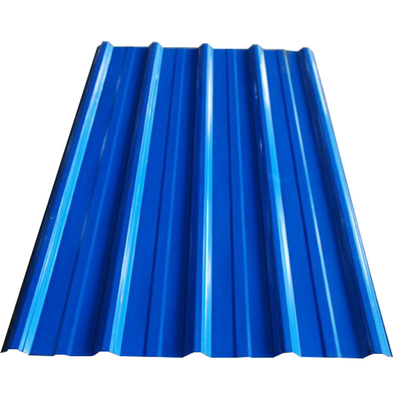

IBR color steel panel from the roll forming machine for a wide range of applications: villas, residential buildings, flat to slope, stations, public facilities, landscape rooms and other light steel roof, cast-in-place concrete structure roof, wood roof. Product color can be customized according to your needs, so as to meet the needs of customers and the style of housing to ensure the quality of the roof at the same time to do beautiful and generous.With low cost, simple and convenient,fast characteristics.
Our Services
Packaging & Shipping
Company Information
Our company is a manufacturer with strong technologies for cold forming equipment and its whole automatic production line . Our products are mainly used for IBR ,corrugated , glazed tile roll forming machines ,as well as the C Z purlin machine , light keel steel machine,shutter door machine,floor decking machine etc . On the strength of our strong technologies and manufacturing experience, we always place the customers'interests first and know that our sucess lies on the customer's success and development. From design to after-service, this principle is observed. By using our products,customers may improve efficiency , reduce costs and enhance competitive power .
CONTACT US
FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 35 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 2 years warranty .,All of the technical personnel are ready to serve you at any time.
5. Q:Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good after-sales service, its free of charge during the warranty period.
