Hot Sale Roll Forming Machine Roofing Sheet Panel Making Machine Machinery
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | ROOF |
| Production Capacity: | 15-20m/min | Voltage: | 380v/3ph/50hz Or Customized |
| Dimension(L*W*H): | 5.3*1.3*1.2M | Weight: | Aroundkg |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1000mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Machine Color: | As Customer Requirement |
| Sample: | Free | Production Experience: | 15 Years |
| Working Type: | Fully Automatic | Control System: | PLC Control And Color Touch Screen |
| Inveter: | Lenze German | Motor: | Famouse Brand In China |
| Main Structure: | 350H Steel 0r 400Hsteel | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Port: | Xingang,Tianjin , China |
Thailand hot sale roll forming machine for 760 roofing sheet panel
Product Description
|
Configurations |
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
|
Control System |
PLC Delta Inverter |
|
Main Frame |
350H steel |
|
Main Power |
4 kw |
|
Pump Power |
3 kw |
|
Power Supply |
380V, 3-Phase,50Hz |
|
Forming Speed |
10-15m/min |
|
Roll Station |
11 station |
|
Roller Diameter |
70mm |
|
Hydraulic Pressure |
12-14MPa |
|
Forming Size |
760mm |
|
Feeding Thickness |
0.3-0.8mm |
|
Feeding Width |
914mm |
|
Backboard Thickness |
16mm |
|
Chain Size |
1" |
|
Cutter Standard |
Cr12 |
|
Roller Standard |
45#steel |
|
Cr-Plating Size |
0.05mm |
|
Overall Size |
5300×1300×1200mm |
|
Total Weight |
2.6T |
Production Flow
uncoil ------guide feeding ----- leveling roll forming -----cuting after forming -----output
Detailed Images
Profile drawing

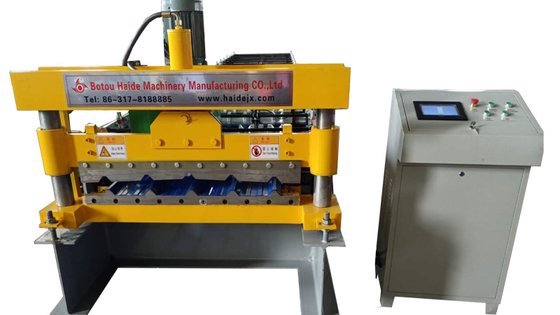

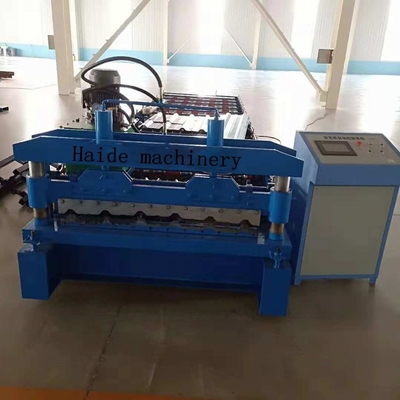

Machine picture
A. Manual decoiler - 5 tons capacity

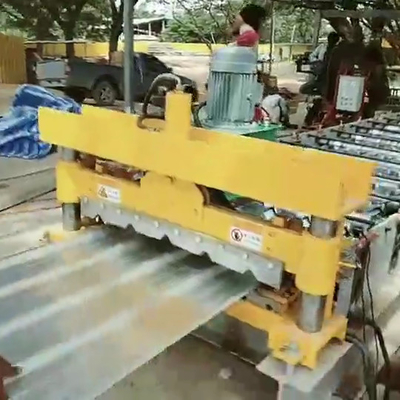

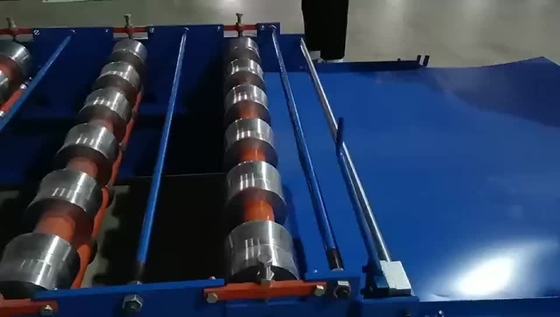

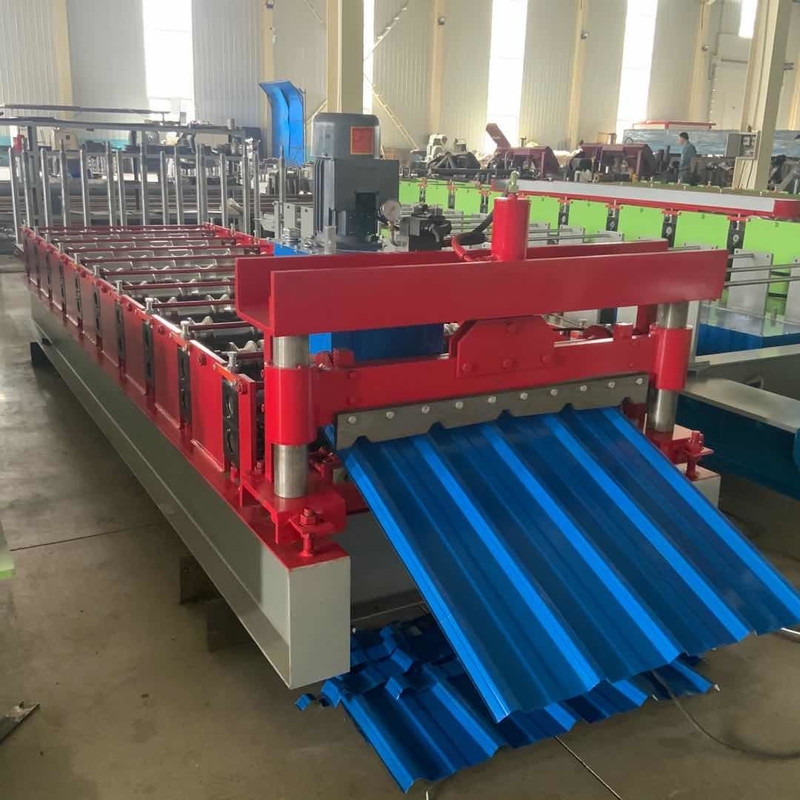

B. Detailed machine picture
Packaging & Shipping
Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed in wooden box with water proof paper coverage
Shipping :
Around 30 days upon received your downpayment .
Company Information
Brief introduction of our factory
Haidemachinery manufacturer co.,Ltd. is located in botou - the home of roll forming machine . With 20 years of production experience ,we can offer you good quality machine at favourable price .Our main products as below:
1.Roof and wall panel forming machines
2.Corrugated tile roll forming machine
3.Double layer roll-forming machine
4.Joint hidden roll forming machine
5.Downspout and waterspout roll forming machine
6.Metal roll forming machine
7.Sandwich panel roll forming machine
8.Shearing bend slitting Uncoiler curving machine
9.Russia roll forming machinery
10.Especially for Asia type ,Russia type and Africa type
Company whole view
FAQ
1. Are you manufacturer?
Yes, we are manufacturer with 15 years experience
2. What information you need before quote me?
We need profile drawin gof the panel you want to produce, material information and your special requirements
3. What payment terms you accept?
T/T
4. Can you make machine according to my design or photo type ?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support
6. Is there any spare part send for free?
Yes, pls contact us we can talk it
7.Is the machine automatic?
Yes, it can be manual and automatic
8.Is engineer available to service overseas market ?
Yes , we can send technician to your company for installation and adjustment , Training your workers to operate the machine . Buyer should charge for visa,round ticket ,food and accommodation overseas and $100/person/day for salary .
9.How many workers is needed for the machine operation ?
One worker is enough ,as the machine can be connected with a computer to have an automatic cutting system
10.How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.Good aftersales-service, its free of charge during the warranty period.
11:How to go to our company?
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick you up there and drive you to our factory for a visit
Fly to Tianjin Airport: then we can pick up you.
If any questions,you can call me mobile phone at any times:0086-13393382022
12.How to contact us ?
Send your inquiry details in the below for free sample , Click “Send ” Now !
