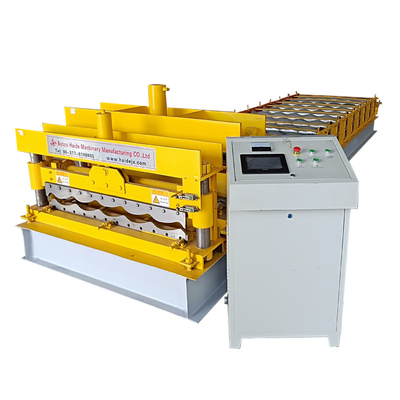

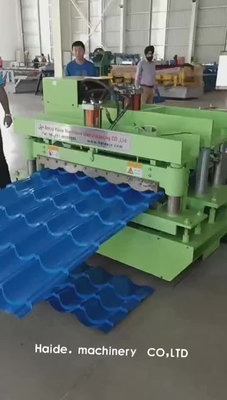

Roof And Wall Panel Rollformer , Complete Single Roll Forming Production Line

Basic Technical Parameters (any can be changed as customer requirement)

1.

Model

Roof panel roll forming machine

2.

Dimention(mm)

6000*1200*1050(length*width*height)

3.

Weight

35000KGS

4.

Forming roller steps

13 or as customer requirement

5.

Diameter of shaft

70mm or 80mm or as customer need

6.

Working speed

8-12m/min (can be faster by adding hydraulic motor

7.

Main motor

4KW

8.

Hydraulic pump motor

3KW

9.

voltage

380V/3Phase/ 50HZ or as customer need

10.

Control system

PLC with color touch screen

11.

Main structure

350H steel

12.

Chain

1’’ or double 0.6’’

13.

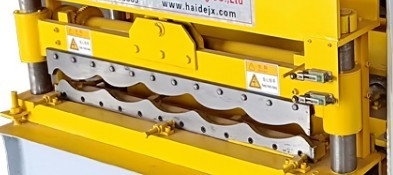

Shear blade

CR12 with quenched treatment 60-62

14.

Roller material

45# steel with heat treatment

Components of Machine and Main Description

Components of Machine

Main Description

1.

Uncoiler

Simple uncoiler;

upgrade uncoiler;

auto decoiler with car

loading capacity:5000kgs

main power:3kw

coil width:1000mm

2.

Feeding Section with guide

Easily for the raw material entry

3.

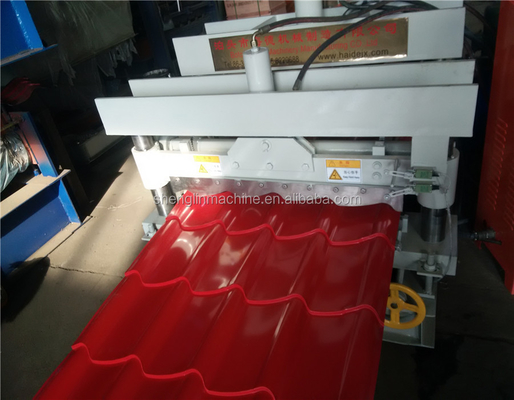

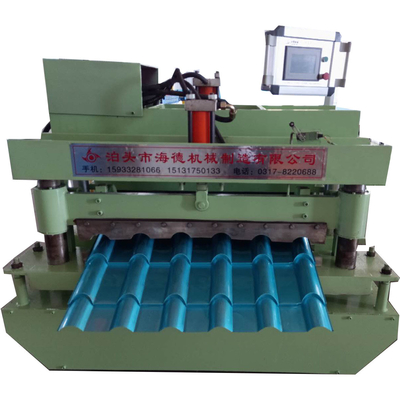

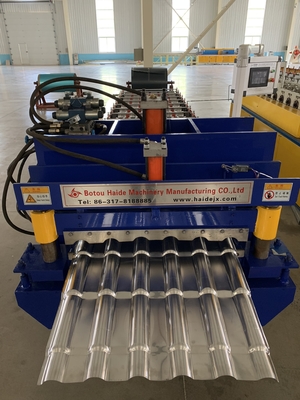

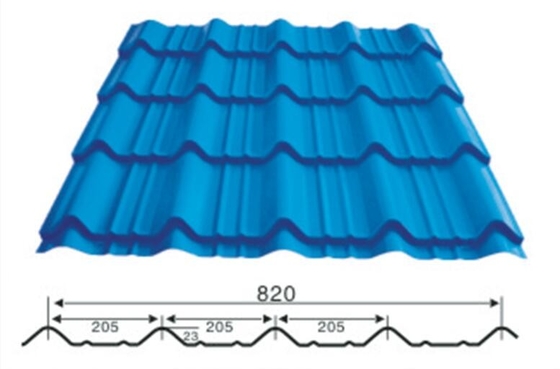

Main forming machine

Forming the panel according your requirement

4.

 PLC control system

Automatically control the quantity of sheet, cutting length.

5.

Cutting blade

Cutting the panel automatically

6.

Set off table

Height adjustable.2 pieces

Size:48’’wide, 10 feet long with 8 rollers

7.

Coverage

Put on chain to escape damage to workers
