Color Steel IBR Profile Panel Forming Machiner For Sale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Farms, Food Shop, Printing Shops | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Steel | Use: | ROOF |
| Production Capacity: | 15-20m/min | Voltage: | 380v/3ph/50hz Or Customized |
| Dimension(L*W*H): | Comtomized | Weight: | 3500 Kg |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 915mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Color: | As Customer Requirement |
| Roller Steps: | 13 Steps | Roller Diameter: | 75mm |
| Voltage: | 380v 3 Phase 50hz Or As Your Need | Working Type: | Fully Automatic |
| Control System: | PLC Control And Color Touch Screen | Motor: | Famouse Brand In China |
| Main Structure: | 350H Steel | Port: | Tianjin ,Beijing |
Guangzhou color steel profile roll forming machine - Trade assurance supplier -100% guaranteed
Product Description
|
Configurations |
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming , Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
|
Control System |
PLC Delta Inverter |
|
Main Frame |
350H steel |
|
Main Power |
4 kw |
|
Pump Power |
4kw |
|
Power Supply |
380V, 3Phase,50Hz |
|
Forming Speed |
10-20m/min |
|
Roll Station |
11 stands |
|
Roller Diameter |
75mm |
|
Hydraulic Pressure |
12-14MPa |
|
Forming Size |
as your request |
|
Feeding Thickness |
0.3-0.8mm |
|
Feeding Width |
as your request |
|
Backboard Thickness |
14mm |
|
Chain Size |
33mm |
|
Cutter Standard |
Cr12 |
|
Roller Standard |
45#steel |
|
Cr-Plating Size |
0.05mm |
|
Overall Size |
as your request |
|
Total Weight |
around 3 T |
Flow Chart
uncoil ------guide feeding ----- leveling roll forming -----cuting after forming -----output
Detailed Images

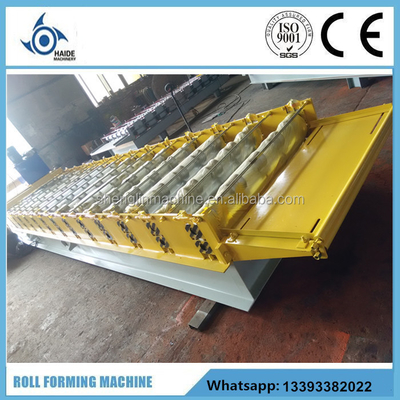

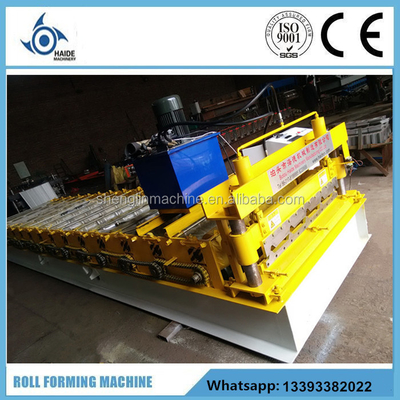

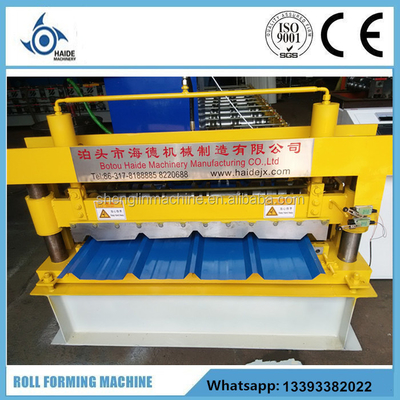

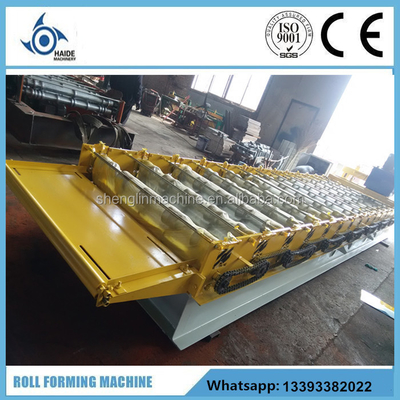

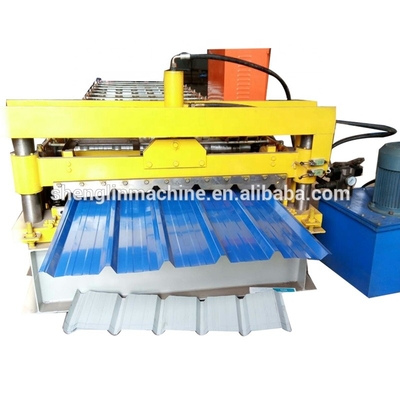

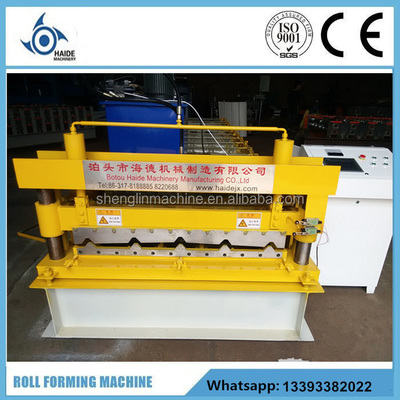

Some roof tile machine picture for your reference
Free spare parts
Trade Fair
Machine for loading
Company Information
Advantages
1.We are manufacturer , price is attractive
2.20 years of production experience ,100% guarantee the good quality machine with competitive price
3.Near to seaport , FOB price is almost the same to EXW
4.More than 10 technicians , customized machine is ok with us
5.Some small spare parts are free for you .
6.Life-long time after-sales service
7. Your questions will be replied within 24 hours .
Our Services
1.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2.You can send your men to our factory. we will teach them how to operate the machine without training charges
3. Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support
Welcome your inquiry !!!
