hot sale Widely Used Roll Forming Machine Line

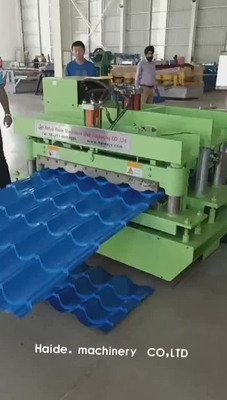

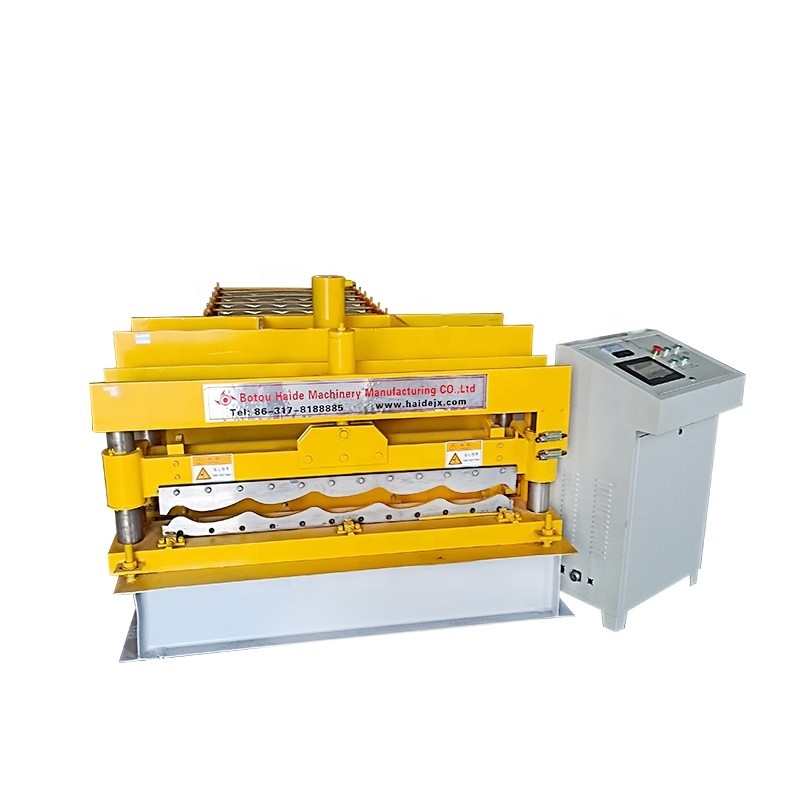

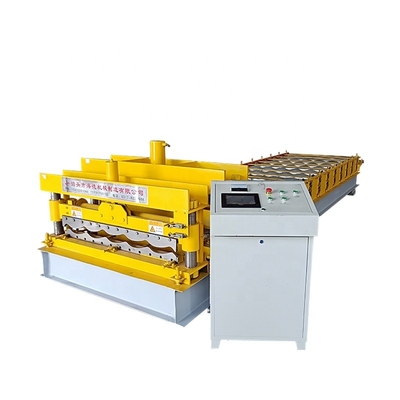

Russia widely used 1100mm arc bias glazed tile roll forming machine







1.Technical paramaters - all the data can be customized



Basic Technical Parameters (any can be changed as customer requirement)
1.	Model	Roof panel roll forming machine
2.	Dimention(mm)	8000*1200*1050(length*width*height)
3.	Weight	40000KGS
4.	Forming roller steps	14 or as customer requirement
5.	Diameter of shaft	80mm or 80mm or as customer need
6.	Working speed	8-12m/min (can be faster by adding hydraulic motor
7.	Main motor	4KW
8.	Hydraulic pump motor	3KW
9.	voltage	380V/3Phase/ 50HZ or as customer need
10.	Control system	PLC with color touch screen
11.	Main structure	350H steel
12.	Chain	1’’ or double 0.6’’
13.	Shear blade	CR12 with quenched treatment 60-62
14.	Roller material	45# steel with heat treatment





2.Product Line



Uncoiler--Entry bench--oll forming machine--Pressing&Cutting device--PLC control system--set off table



3. Necessary parts of the whole machine



Components of Machine and Main Description
	Components of Machine	Main Description
1.	Uncoiler(different type) Simple uncoiler; upgrade uncoiler; auto decoiler with car	1.      loading capacity:5000kgs 2.      main power:3kw 3.      coil width:1250mm
2.	Feeding Section with guide	Easily for the raw material entry
3.	Main forming machine	Forming the panel according your requirement
4.	PLC control system	Automatically control the quantity of sheet, cutting length.
5.	Pressing and Cutting	pressing and Cutting the panel automatically
6.	Set off table	Height adjustable.2 pieces Size:48’’wide, 10 feet long with 8 rollers
7.	Coverage	Put on chain to escape damage to workers



 4. Russian speical color steel panels

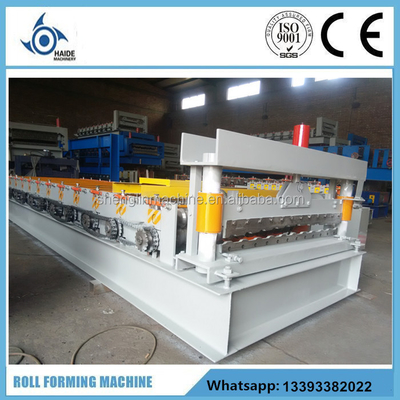

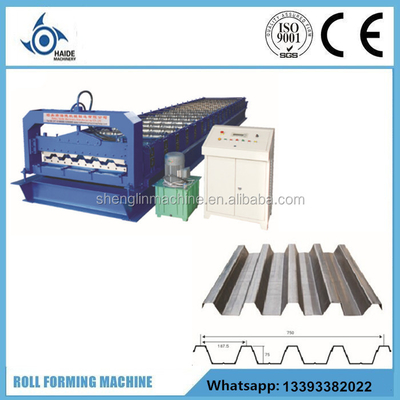

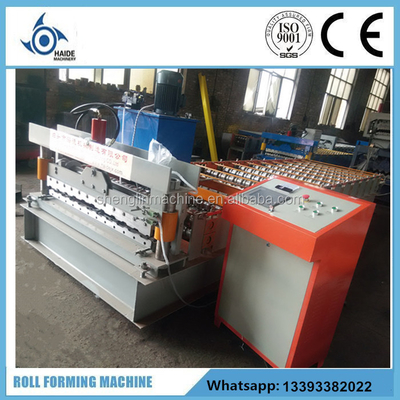

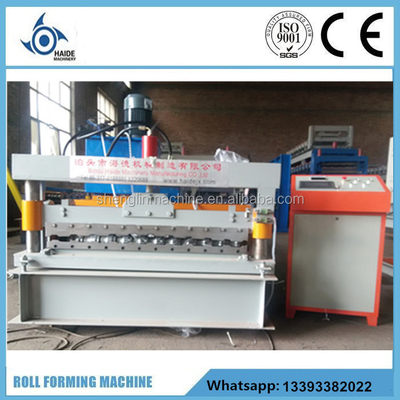

5. Machine we made to our Russia Clients before





6.Service





Pre-sale service commitments



1. Provide special requirements for product design, manufacturing, satisfies the customer the personalized needs.



2. The company to arrange production and shipment strictly according to contract agreement, to ensure delivery time according to contract agreement.



After-sales service commitment



1, guarantees for sold products, in the 3 packets of period, such as the problems caused by manufacturing quality products factory repair, replacement or return; Due to other causes of problems, the factory help user solve the problem actively, to ensure that the product put into operation in time, reduce the accident loss to the lowest degree.



2, major equipment installation, commissioning, on-site technical services, headed by deputy chief engineer of technical experts from charge door to door service, in order to solve user problems. Key projects in construction site.



3, after your company's products arrive, technicians will assist the installation instruction, commissioning, etc.



4, actively cooperate with the user site operation and maintenance management work to improve the quality of products, can provide our products to the user at any time to the cost price of spare parts and accessories.



5, insist on quality first, user supreme principle, obey the call of the user at any time, when need to on-site service, I plant to ensure users notice reply within 24 hours, 72 hours to reach the scene, emergency cases to get the quickest means of travel in 32 hours.



6, within the scope of maintenance of equipment such as occurrence quality problem, the company responsible for free maintenance, and arrive within 2-5 hours to the user's phone or reply.



7.About us



Haide machinery manufacturer co.,Ltd. is located in botou  - the home of roll forming machine . With 20 years of production experience ,we can offer you good quality machine at favourable price .Our main products as below:



1.Roof and wall panel forming machines

2.Corrugated tile roll forming machine

3.Double layer roll-forming machine

4.Joint hidden roll forming machine

5.Downspout and waterspout roll forming machine

6.Metal roll forming machine

7.Sandwich panel roll forming machine

8.Shearing bend slitting Uncoiler curving machine

9.Russia roll forming machinery

10.Especially for Asia type ,Russia type and Africa type



8.Certificate





9.Customer visiting









Welcome   Your   Inquiry  !!!
