Botou Haide Ce Certification Roof Tile Roll Forming Cold Ibr Or Cnc Coil Panel





Botou Haide ce certification roof tile roll forming cold ibr or cnc coil panel double layer roll forming machine



No	Item		Parameter	Note
1	Suitable Material	Type	double layer roll forming machine	Customized Specs Acceptable,double layer roll forming machine
			Customized Profile
		Thickness	0.3-0.7mm
		Yield Strength	235MPA
2	Product Specs	Cover width	Customized Profile
		Length	Any length
3	Power  Specs	voltage	380V/3PH/50HZ	Up to Practical Profile
		Main Motor	3-11KW
		Hydraulic	2.2-5.5KW
4	Machine Specs	Transmission	Chain and Sprocket	Gearbox and Cardan Acceptable
		Structure	Column Block Or Wall Plate
		Shafter	No.45 steel tempered
		Rollers	No.45 steel chrome coated	Cr12 or other acceptable
		Cutting Blade	Cr12 quenched
		Press Mould	Cr12 quenched
		Punch Mould	Cr12 quenched
5	Working Capacity	Forming Speed	15-20m/min for standard solution	Higher Speed Solution Available
		Working Speed	Up to Length-set Cutting
6	Hydraulic Cantilever Decoiler (Optional)	Type	Hydraulic
		Max. Capacity	5 T/10T/15T
		Suitable coil OD	1200mm
		Suitable coil ID	508/610mm
		Max Coil width	1250mm
7	Forming Stand		8-48	Up to Practical Profile
8	Forming Shaft Diameter		55-120mm	Up to Practical Profile
9	Type of Cutting		Length-set cutting after roll formed,CR12 mould steel	Pre-cutting acceptable
10	Control System		Mitsubishi PLC and Inverter
11	Output Supporter		2 Pcs Simple Supporter	Auto Stacker Optional

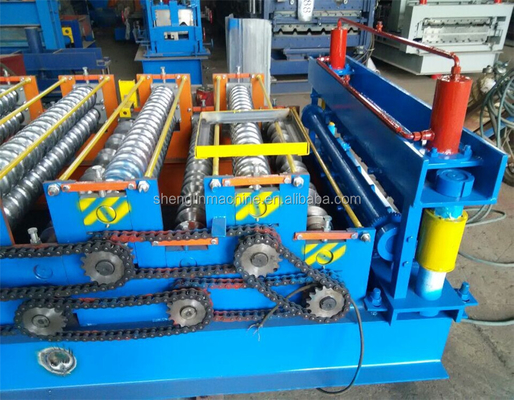

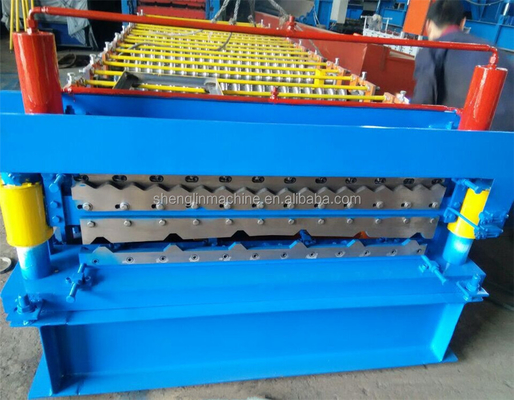

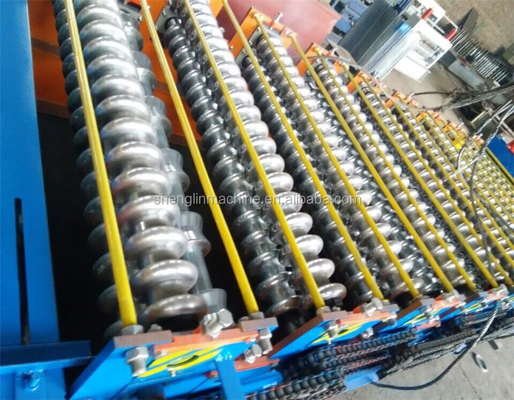

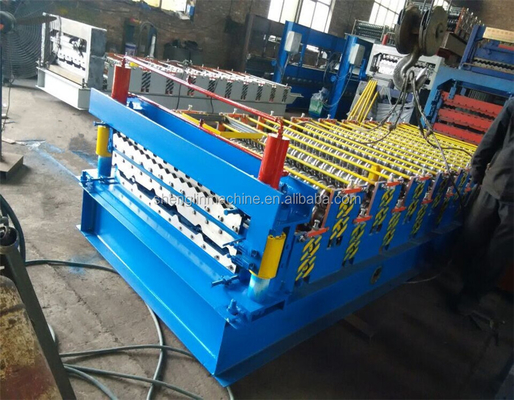

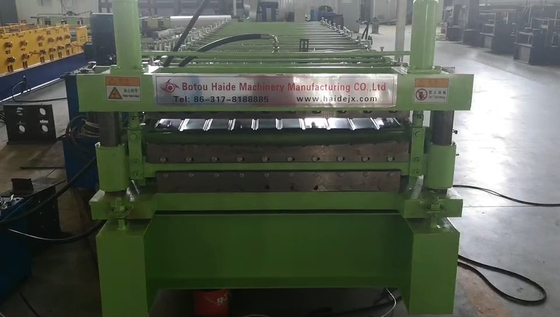

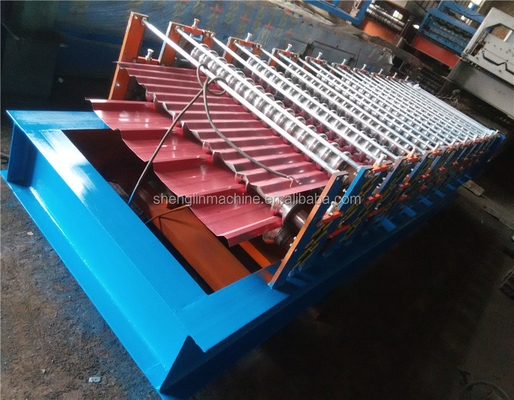

product show: double layer forming machine









No		Technical Specification
1	Manual Uncoiler	Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm
2	Feeding Table	Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3	Main Roll Forming Machine	Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4	Hydraulic System Computer Control Cabinet	Power:5.5kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA
5	Shearing Mechanism	It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment
6	Output Table	It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.



other majored machine











Packaging and shipping: double layer forming machine



1). Tighten to container with steel wire rope and welded machine with container by angel iron



2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)



3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage















Advantage: double layer forming machine



1)- we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country



 2)You can send your men to our factory. we will teach them how to operate the machine without



 training charges



 3)Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line  how to operate the machine.



4)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support















     FAQ



1), Q: Do you have after sales support?



A: Yes, we are happy to give advice and we also have skilled technicians available across the world. Weneed your machines running in order to keep your business running.







2), Q: How do your machines compare with other big companies in this market?



A: We are up to date with the latest technology and improve our machines accordingly







3), Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the verybeginning to the end of the production.  Every product will be fully assembled and carefully tested before



it's packed for shipment.







4), Q: Do you sell only standard machines?



 A: No, most of our machines are built according to customers specifications, using top brand namecomponents







5) Q: Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us







6)Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.



 2.We can send the technicians to the buyer`s factory for the installation of the machine.



 3.Good aftersales-service, its free of charge during the warranty period.







7)Q:What can you do if the machine broken?



A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment.















Our company:



Our company is a professional manufacturer and exporter of cold-forming equipment and its whole automatic production line in North China. At recent years, large of our products have been sold to Russia, India, Australia, Armenia, and more than 50 countries and religions.



Our products are mainly used for C-type and Z-type purlins for steel structure production, bearing mould plate for high buildings and structured color plate or heated board for the maintenance of its roof covering and wall face, positive and negative plates for dust removal in environmental protection and so on .



Our marketing and design staff will respectfully listen to your definite requirements and demands ,design and produce your satisfactory equipment.
