Ibr Wall Corrugated Roof Steel Sheet Glazed Tiles Making Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Applicable Industries: | Hotels, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Screen: | Touch Screen | Main Structure: | 300H Steel |
| Control System: | Fully Automatic | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | None | Port: | Tianjin |
Roll forming machine for ibr and corrugated roof sheet
Profile
PS: the size is changable, please show us your desied size and then we design new machine specially for you
|
Wave height |
3/4'' |
|
Wave length |
12'' |
|
Cover width |
36'' |
|
Coil width |
40.875'' |
|
Thickness of material plate |
26 or 29 guage |
B parameters
|
No. |
main parameter of metal sheet rolling machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
40.85'' |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
8000mm*1550mm*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
20-30m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Weight |
About 2.5T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
Panasonnic PLC control |

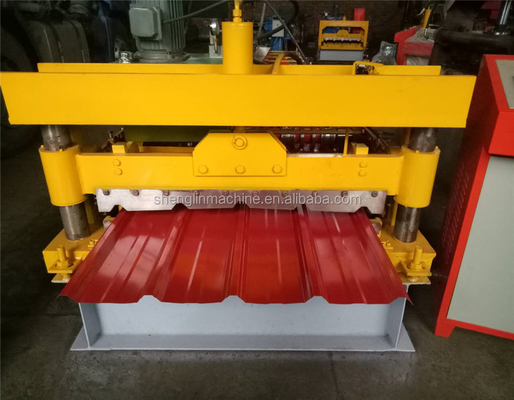

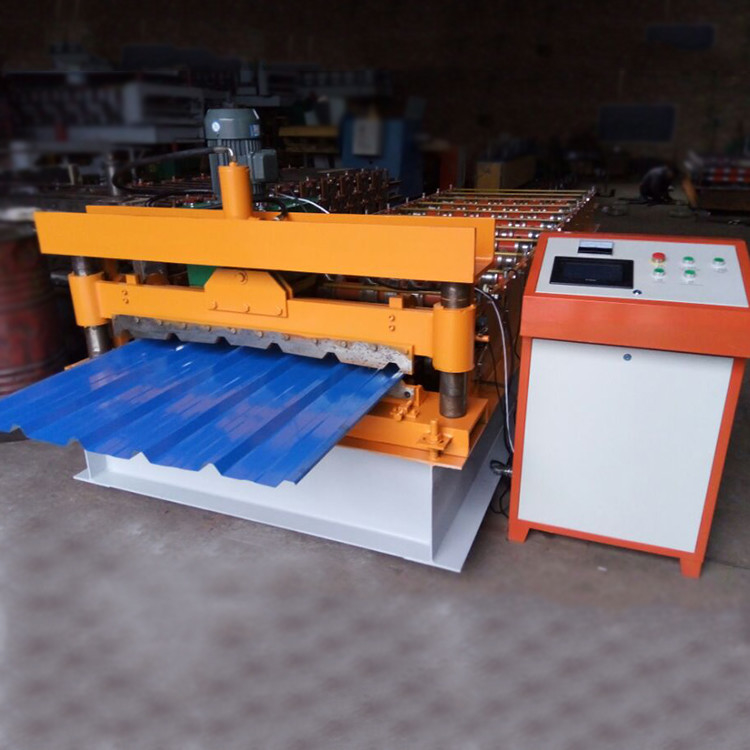

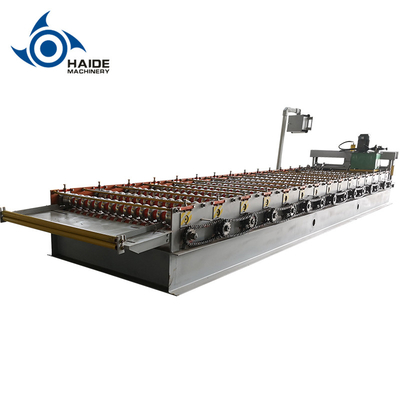

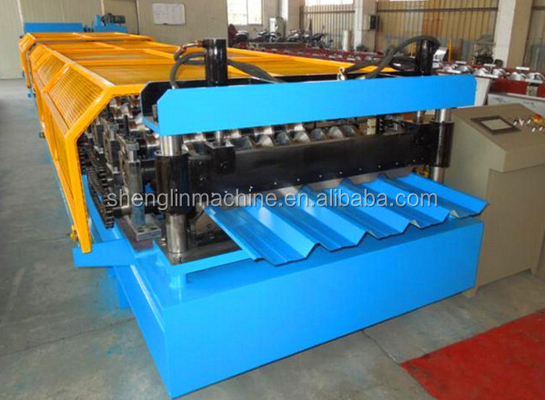

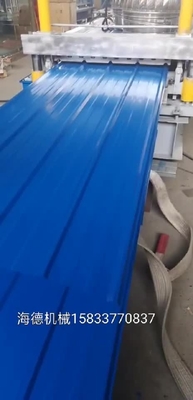

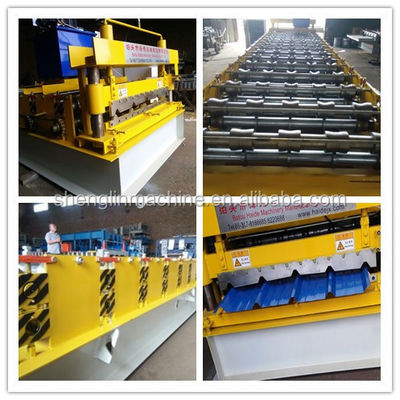

6. Photos of achine
