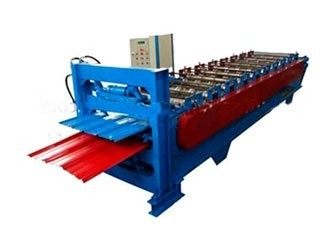

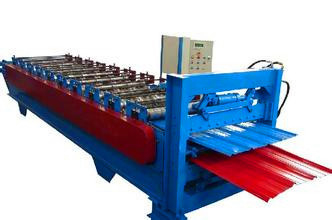

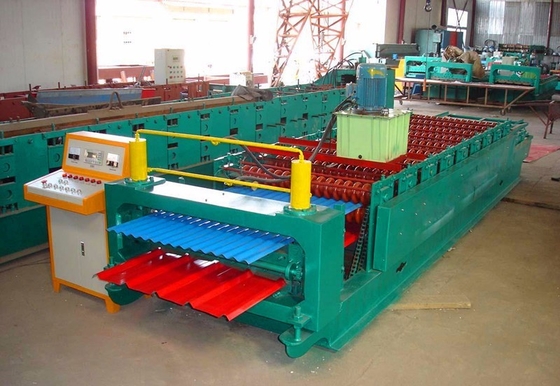

Deck Profile Double Layer Forming Machine Roof Plate Tile Roll Forming Machine

1,Machine Components:

1) Manual Decoiler  1 set

2) Main Machine    1 set

3) Control System   1set

4) Hydraulic System   1 set

5) Output Table     1set

2.Technical Process:

Decoiler--Guided Feeding--Roll Forimg--Cut to Length--Collection Table

3.Technical Parameter:

(1) Manual Decoiler

1 Inside diameter coil : 450-550mm

2 Coil width : 1000 mm

3 Coil load : 5 tons

(2)Hydraulic cutting device

1 Hydraulic Station:1set

2 With hydraulic station, motor 4kw

(3)Controlling device

1 PLC: Delta

2 Automatic length measurement

3 Automatic quantity measurement

(4)Receiving table

1 Width * length:1000*3000mm

2 Quantity: 2 sets

(5)Spare parts

Oil pipe : 2 pcs

Press-button:2 pcs

Limit switch :2 pcs

Miniature relay:2 pcs

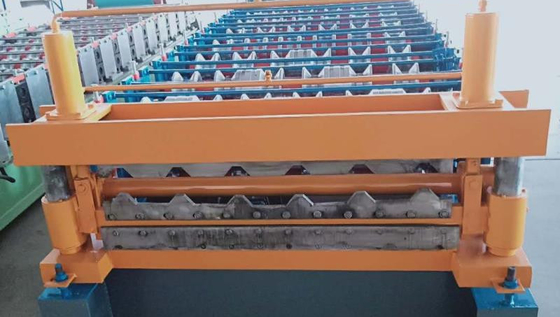

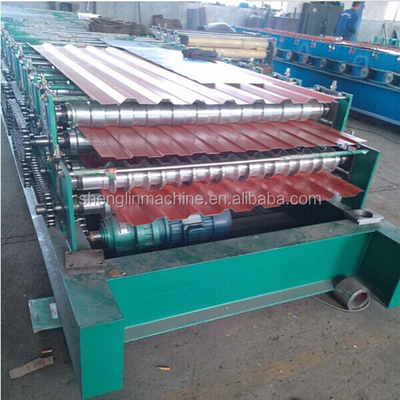

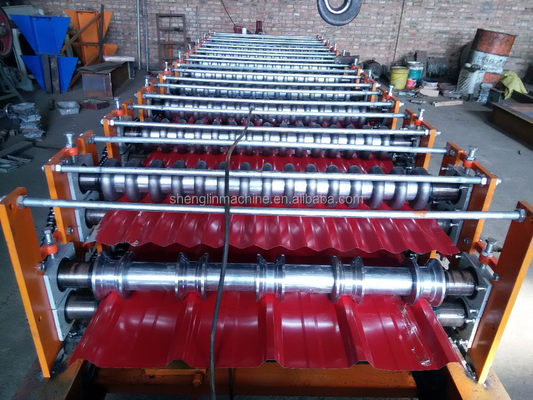

(6)Forming machine

1 Shaft material : 45# steel with heat treatment, diameter 55mm

 2 Roller material : 45# steel

3 Steps of forming rollers :accoring to your profile

4 Chain:1”

5 Forming speed:8-12m/min

6 Main motor power:4kw

7 Hydraulic motor :4kw

8 Voltage:380V,50HZ,3Phase

9 Bottom structure : 300H steel

10 Side plate:16 mm

11 Blade material:Cr12

We can customized machine according to your profile drawing.

Packaging:

1.Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.

2.Normally one machine needs one 40 feet container for shipping.

 Company Information:

    Our company is a cold forming automatic production line manufacturer.which with greatest strength powerful technical force and complete sets of equipment.our company has been engaged in manufacture more than 15 years .we have developed more than ten series of steel rol forming machines.such as production lines for wall&roof sheet ,color steel tile ,C&Z shape production line ,glazed tile.floor board .all kinds of sandwich panels,curving machine for roof sheets .etc.

   We passed authentication of CE.

   Technological innovation and management innovation is our relentless pursuit,we willfuly promote the product upgrading and development of the industry.

Installation and training:

1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.


Our Service:

1.Customer's Design,Size,Color,Logo are accepted.

2.With 20 years professional manufacture experience.

3.Prompt Delivery&Competitive Price.

4.Main Makets:Middle East,Europe,North American,Africa,Southeast Asia.

After-sales  Service:

1.We provide the technical support for whole life of our machines.

2.If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should takes all the cost,including Visa,roundtripticket etc.

Remark:

1 The machine can according to your requirement to set the color

2 Within in one year if any parts go broken we will send new ones to replace for free

3 If you want to learn more about the product please login our website or contract to us.

1.MOQ

    1 set

2.Are you manufacturer?

   Yes,we are manufacturer with 20 years experience.

3.What information you need prepare before quote me?

   We need profile drawing of the panel you want to produce,material information and your special    requires.

4.Can you make machine according to my design or photo type?

   Yes,we have professional team to work out the suitable design for you.

5.What's the warrany for our machine?

   We have one year guarantee,and provide whole life technical support.

6.Is the machine automatic?

    Yes,it can be manual or automatic

7.How many workers is needed for the machine operation

   One work is enough,the machine can be connected with  computer to have an automatic cutting system.

8.What's the warranty of our machine?

   one year,but lifelont service for spares,ware parts and technical supporting.

9.Pament Terms

   30% T/T in advance and balance should be paid before loading.
