Double Layer Roofing Sheet Glazed Tile Roll Forming Making Machine

Double Layer Roll Forming Machine

1.Specifications

1.1 Input width:1000mm

1.2 Effective width:850mm

1.3 Thickness:0.5-0.8mm

1.4 Main power:4kw

1.5 Speed:8-12m/min

1.6 Station:15rows

1.7 Roll&shaft material:45# grade steel with chrom

1.8 Midder plate:14mm

1.9 Frame:300H

1.10 Diameter of axle:75mm

1.11 L*W*H:12.5*1.3*1.2m

1.12 Chain transport:1"

1.13 Volt: 380V,60HZ,3 phase or as your need

2. Technical Process:

  Decoiler----Guided Feeding----Roll Forming---Cut to length----Collection Table

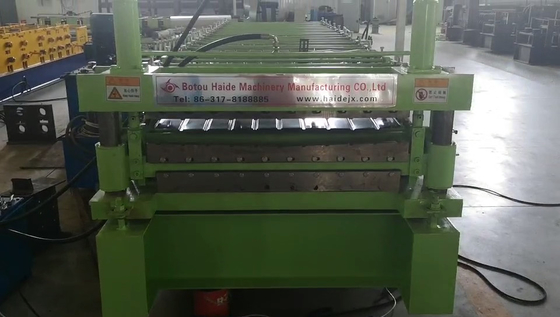

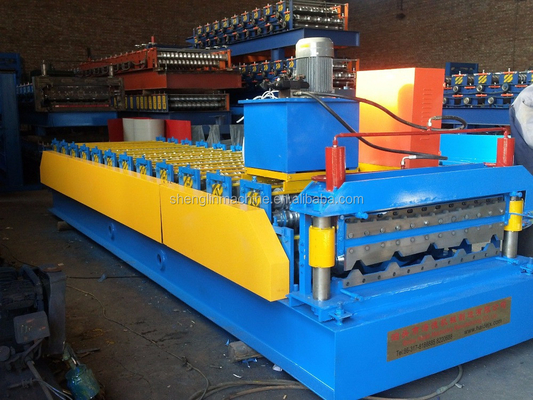

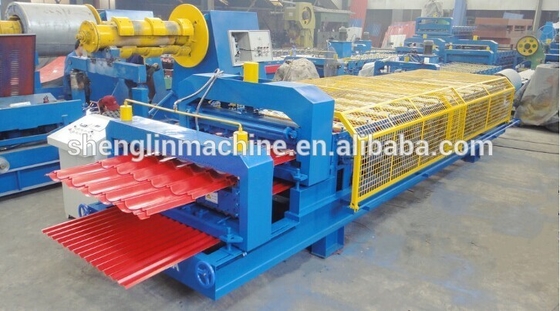

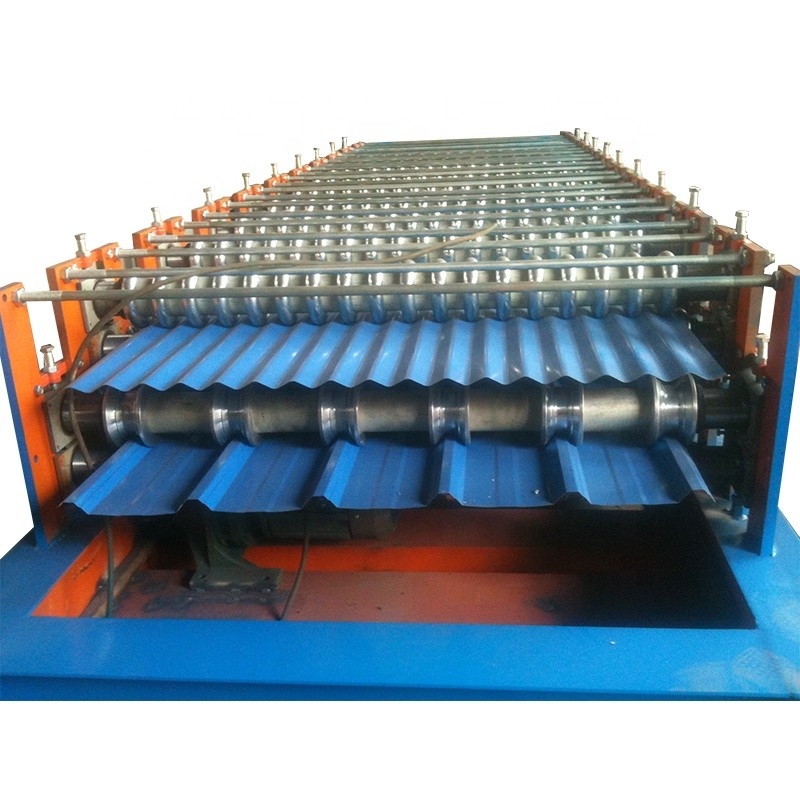

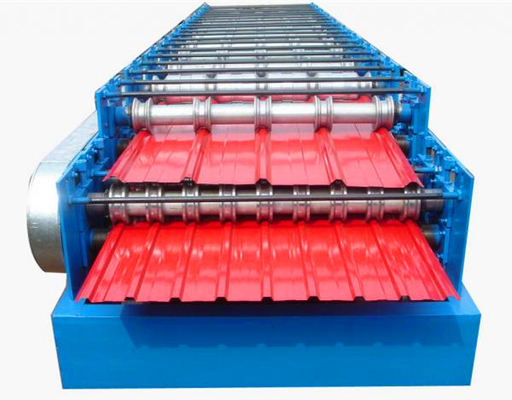

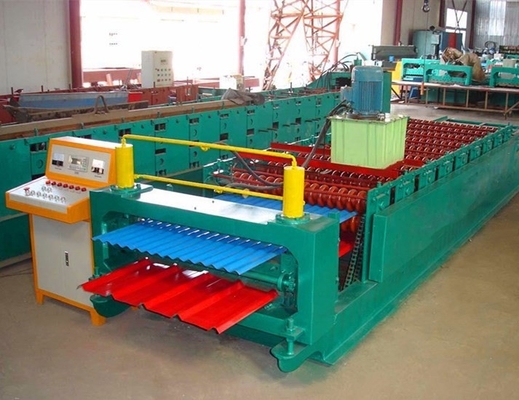

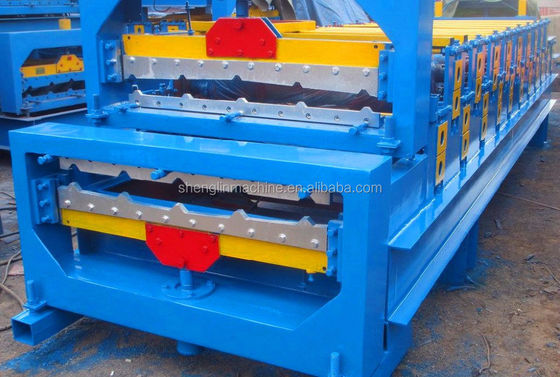

3.Similar outlooking with below picture

4.Profile drawing and color can be choose

5.Advantage:

1. We can make and design all kinds of roll forming machine according to customer's requests.And we colud provide to technical guiding production,installation,bedugging and maintenance service to all customers.

2. This is a very perfect and durable equipment,we have more than 17 years experiences.

3. Thekind of machine has the best quality and the best price.It has accurate measurement and easy operating.

6.Certification:

7.Packing&Shipping

1.Nude, with waterproof cloth and stow-wood.PLC packed with waterproof cloth and card board.

2.The goods require 20"container.

 8.Our facyory:

9.Our services:

1.Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customers.

2. We provide the technical support for whole life of our machines.

3.If buyer need the technican to go abroad.we will arrange the technican,but the buyer should take all the cost,including Visa,roundtrip ticket etc.
