High Quality Panel Forming Machine Snap Lock Roll Forming Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Quality Panel Forming Machine Snap Lock Roll Forming Machine Get Best Price

Product Details:
Place of Origin: Hebei, China
Brand Name: Haide
Payment & Shipping Terms:
Price: $10,000.00/Sets >=1 Sets
Packaging Details: main machine is naked or packed in wooden boxes.
Supply Ability: 3 Set/Sets per Month
Contact Now
Detailed Product Description
Applicable Industries: Construction Works Showroom Location: None
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel Use: ROOF
Production Capacity: 8-12m/min Voltage: 380V 50Hz 3phases
Dimension(L*W*H): 6500*1300*1100 Weight: 3.5 Kg
Warranty: 1 Year, 1 Year Key Selling Points: Easy To Operate
Rolling Thinckness: 0.3-0.8mm Feeding Width: 1250mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 Year
Core Components: Motor, Pump Control System: Taiwan Delta
Roller Material: 45#steel Chrome Plated Shaft Material: 45# High Grade Steel
Name: Snap-lock Roll Forming Machine MAIN Motor Power: 3.0kw
Hydraulic Motor Power: 3.0kw Forming Steps: 18 Forming Stations
Main Frame: Welded Square Raw Material: Color Steel Sheet
Port: Tianjin

snap lock roll forming machine

 High Quality Panel Forming Machine Snap Lock Roll Forming Machine 0

High Quality Panel Forming Machine Snap Lock Roll Forming Machine 1High Quality Panel Forming Machine Snap Lock Roll Forming Machine 2High Quality Panel Forming Machine Snap Lock Roll Forming Machine 3High Quality Panel Forming Machine Snap Lock Roll Forming Machine 4





1. profile drawing of snap-lock machine

High Quality Panel Forming Machine Snap Lock Roll Forming Machine 5

Product Description

 Standard Equipment of Machine:

Uncoiler 1 set
Guiding Equipment 1 set
Roll Forming Equipment   1 set
Post Cut Equipment 1 set
Hydraulic Station  1  pc
PLC Control  1  pc
Supporter Table 2  pc

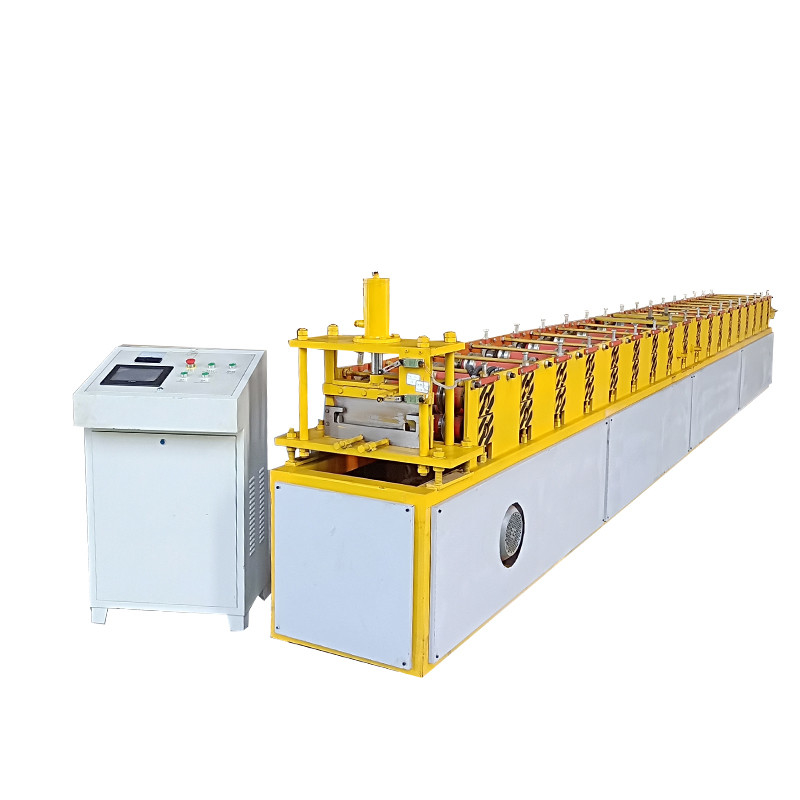

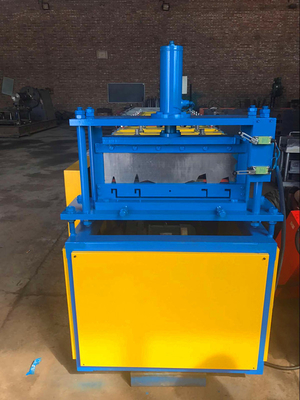

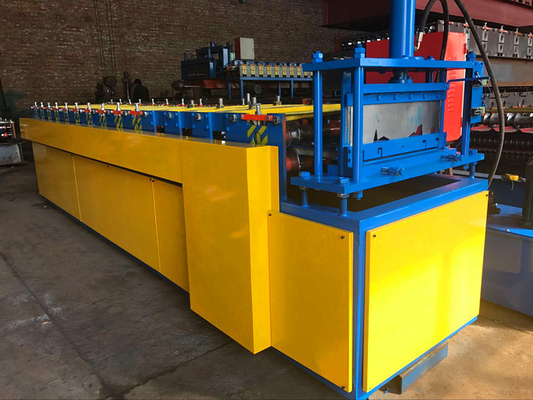

2.machine picture

Detailed Images

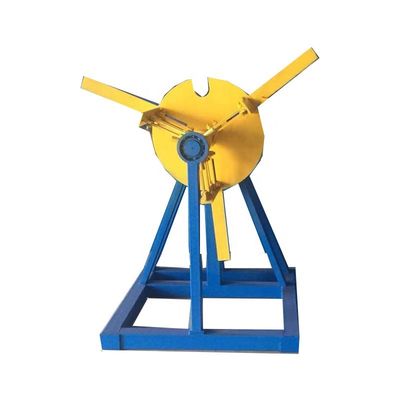

manual uncoiler the bearing weight is usually 5 tons.we can provide bigger ones according to client's needs.this uncoiler is used to uncoil the raw material coils. High Quality Panel Forming Machine Snap Lock Roll Forming Machine 6
material feeding platform the coil after uncoiling will go into the roll forming body through this device. it can keep the material well-leveled. High Quality Panel Forming Machine Snap Lock Roll Forming Machine 7

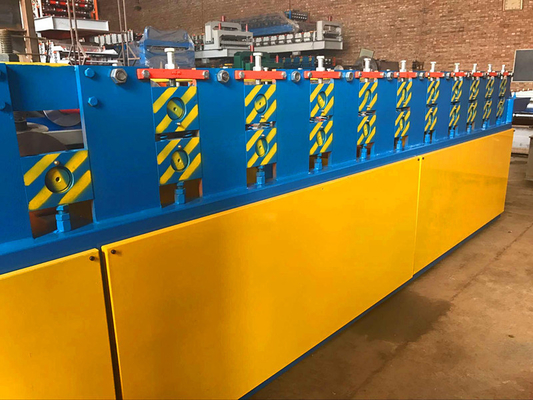

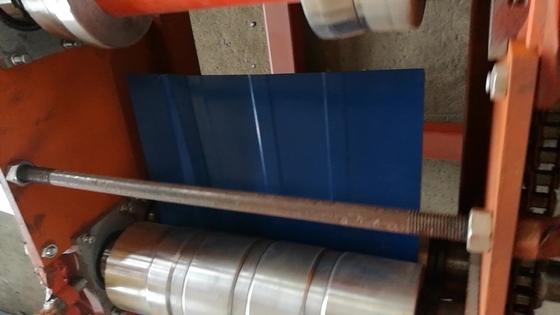

roll forming machine the flat sheet will be formed many different pattens after roll forming.each model has its own design of rollers. High Quality Panel Forming Machine Snap Lock Roll Forming Machine 8
automatic cutting device after making the step,the sheet will be cut automatically according to settled length.this system includes computer control box,encoder,hydraulic station,step-forming decive and cutting device. High Quality Panel Forming Machine Snap Lock Roll Forming Machine 9
computer control box   High Quality Panel Forming Machine Snap Lock Roll Forming Machine 10

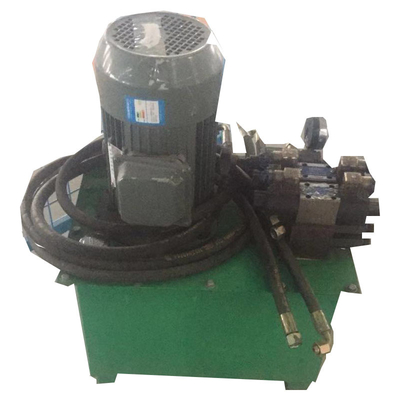

hydraulic station   High Quality Panel Forming Machine Snap Lock Roll Forming Machine 11
encoder   High Quality Panel Forming Machine Snap Lock Roll Forming Machine 12

3. machine specifications

Quick details

1. width of material : 460mm

2. thickness of plate : 0.3-0.8 mm

3.18 stations for forming rollers

4. main motor power : 4kw

5. hydraulic station power : 4kw

6. hydraulic pressure : 8-12MPa

7. forming speed : 10-15 m/min

8. shaft material:45# steel   diameter of shaft:60mm

9. roller material :45# steel

10. 1 inch chains

11. main frame : welded square

12. middle plate : 14 mm

13. cutting blade material : Cr12

14. voltage : 380V,50HZ,3 phases

15. automatic cutting,colume-guide cutting method

16.Delta  PLC control system



Customers Visiting

High Quality Panel Forming Machine Snap Lock Roll Forming Machine 13High Quality Panel Forming Machine Snap Lock Roll Forming Machine 14High Quality Panel Forming Machine Snap Lock Roll Forming Machine 15High Quality Panel Forming Machine Snap Lock Roll Forming Machine 16High Quality Panel Forming Machine Snap Lock Roll Forming Machine 17

Packaging & Shipping

Packing and Shipping:

Packing Details: Main Machine: All rollers will be brushed anti-rusty oil and packed with water proof plastic film.

Control box: be packed with thick cardboard, and outer side thick water proof plastic film.

All parts inside container will be fixed very well which can keep safety and fixed for long time sea time transportation.

Company Information

    Botou Haide Machinery Manufacture Co.,Ltd was established in 1996.

   Our products include: Glazed Tile Roll Forming Machine, Ridge Cap Roll Forming Machine,Roof Gutter Roll Forming Machine, Color Steel Roll Forming Machine, Russian Standard Steel Roll Forming Machine, Joint-hidden Roll Forming Machine, Downspout Forming Machine, C/Z Purlin Roll Forming Machine, Deck Floor Roll Forming Machine, Highway Guardrail Roll Forming Machine, Wind-Proof and Dust Control Plate Roll Forming Machine, Roller Shutter Door Roll Forming Machine, Stone Coated Roof Tile Production Line, Long-Span No Grider Roll Forming Machine, car panel,container panel, Storage Rack and Stand Column, Photovoltaic Supporter, Cable Tray Roll Forming Machine, Sandwich Panel Production Line, 3D Decorative Panel Machine, Advertisement Gusset Plate Machine and Bending &Cutting Machine & Decoiler, etc.
