HAIDE Automatic Glazed Tile Forming Machine Roof Panel Tile Roll Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Machine Type: | Forming Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Printing Shops, Construction Works |
| Showroom Location: | None | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support |
| Coil Sheet Width: | 1000/1250mm | Raw Material: | GI,PPGI,PPGL |
| Thickness: | 0.3-0.7mm | Voltage: | 220V/380V/Customized |
| MOQ: | 1 Set | Motor Power: | 5.5KW-7KW |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Port: | XinGang |

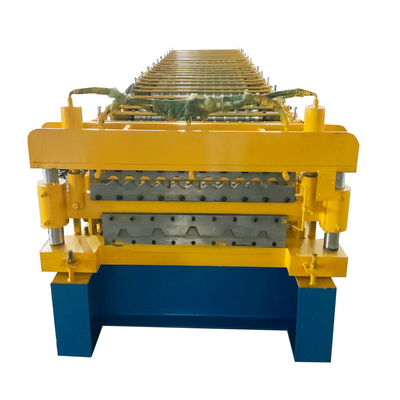

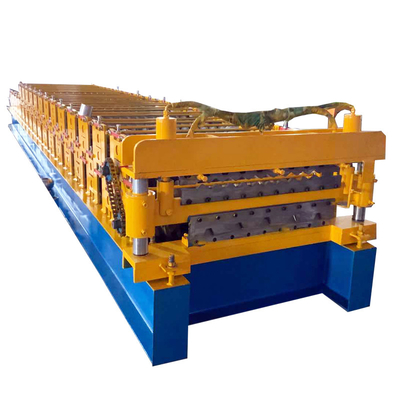

HAIDE automatic roof panel tile roll forming machine
Panel Tile Roll Forming Machine
High Quality Roll Forming Machine
Roof Panel Tile Roll Forming Machine
|
Configurations |
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler , Main Machine Of Roll Forming ,ElectroMotor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
|
Control System |
PLC Delta Inverter |
|
Main Frame |
350H steel |
|
Main Power |
4 kw |
|
Pump Power |
3 kw |
|
Power Supply |
380V, 3-Phase,50Hz |
|
Forming Speed |
10-20m/min |
|
Roll Station |
9stands |
|
Roller Diameter |
75mm |
|
Hydraulic Pressure |
12-14MPa |
|
Forming Size |
850/1040mm |
|
Feeding Thickness |
0.3-0.8mm |
|
Feeding Width |
1000mm /1200mm |
|
Backboard Thickness |
14mm |
|
Chain Size |
33mm |
|
Cutter Standard |
Cr12 |
|
Roller Standard |
45#steel |
|
Cr-Plating Size |
0.05mm |
|
Overall Size |
5200×1200×1200mm |
|
Total Weight |
2.5T |
Production Flow
Detailed Images
Certifications
Company Information
Packaging & Shipping
1.we can send our engineer to your site and do the training for your men. you just only
bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in
your country
2.You can send your men to our factory. we will teach them how to operate the machine without training charges
3. Actually theres another cheap and easy way to choose. Every machine leave our
factory with one book of operation manual. You can read through the manaul first ,and
get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4.Apart from above training course,we also provide 1 year warranty for all the easily
broken part of the machine for free and whole-life technical service support
