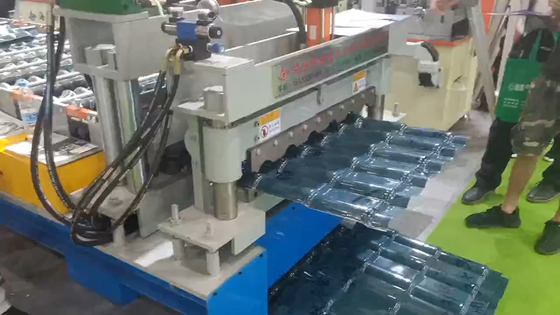

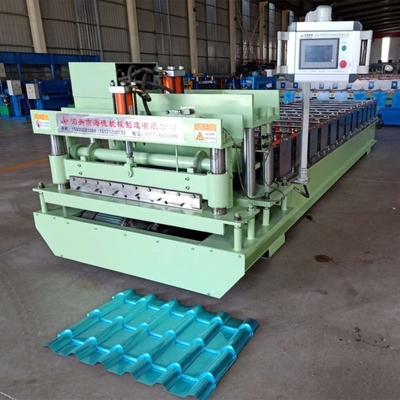

High Speed Glazed Tile Forming Machine Roof Panel Step Tile Roll Forming Machine Price

Basic Technical Parameters (any can be changed as customer requirement)

1.

Model

Glazed tile roll forming machine

2.

Dimention(mm)

8000*1200*1050(length*width*height)

3.

Weight

40000KGS

4.

Forming roller steps

14 or as customer requirement

5.

Diameter of shaft

75mm or 80mm or as customer need

6.

Working speed

8-12m/min (can be faster by adding hydraulic motor

7.

Main motor

4KW

8.

Hydraulic pump motor

3KW

9.

voltage

380V/3Phase/ 50HZ or as customer need

10.

Control system

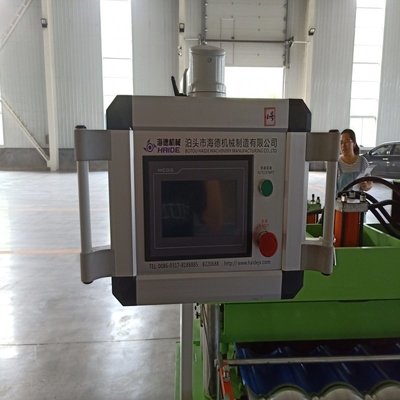

PLC with color touch screen

11.

Main structure

350H steel

12.

Chain

1’’ or double 0.6’’

13.

Shear blade

CR12 with quenched treatment 60-62

14.

Roller material

45# steel with heat treatment

Components of Machine and Main Description

Components of Machine

Main Description

1.

Uncoiler(different type)

Simple uncoiler;

upgrade uncoiler;

auto decoiler with car

1.      loading capacity:5000kgs

2.      main power:5.5kw

3.      coil width:1250mm

2.

Feeding Section with guide

Easily for the raw material entry

3.

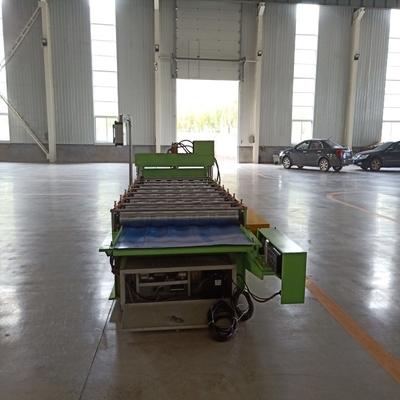

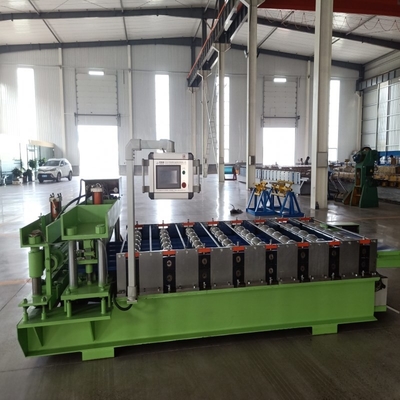

Main forming machine

Forming the panel according your requirement

4.

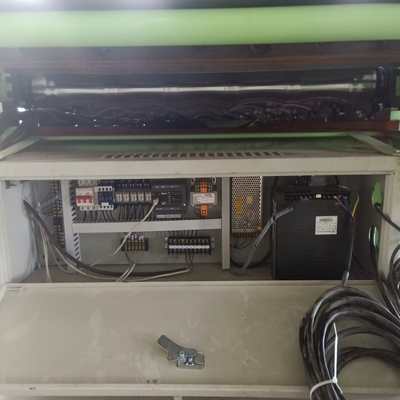

 PLC control system

Automatically control the quantity of sheet, cutting length.

5.

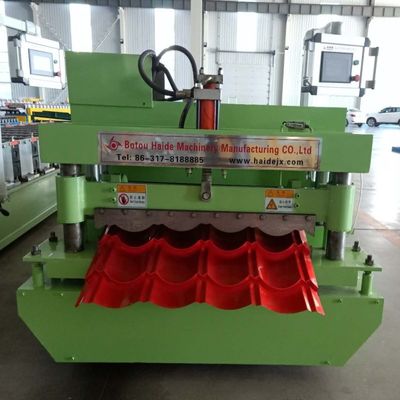

Pressing and Cutting

pressing and Cutting the panel automatically

6.

Set off table

Height adjustable.2 pieces

Size:48’’wide, 10 feet long with 8 rollers

7.

Coverage

Put on chain to escape damage to workers
