Clay Roof Tiles Making Machines, Glazed Molding Rolling Forming Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Applicable Industries: | Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Food Shop, Printing Shops, Construction Works |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Video Technical Support |
| Quality System: | ISO9001 | Material Spec: | Colored Steel Sheet, Galvanized Steel Sheet |
| Forming Roller Step: | 11or 13 | Roller Material: | 45# Steel After Hot Treatment |
| Main Motor Power: | 4kw | Control System: | PLC Control Box |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Port: | Tianjin |
clay roof tiles making machines, glazed molding rolling forming machine
Roof Tile Sheet Rolling Forming Machine
Ceramic Floor Tile Making Machine
A.Main Technical Parameter
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 4.0 kw |
| forming speed | 8-10m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet | 0.3-0.8 millimeter |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 4.0ton |
| Voltage | 380 volt |
| Roll stand | 10/11 groups |
| PLC | Computer adopt PLC, Mitsubishi FX-IS series |
| Dimension | 6.0m*1.3m*1.5m |
| Roller material | high grade No.45 forged steel, plated hard chrome onthe surface of roller with thickness 0.05 millimeter |
| Frequency converter | containing |
| Computer operating screen | MT6056 from Taiwan |
| Rotary Encoder | OMRON |
| Material of cutter | Cr12 |
B.The picture show

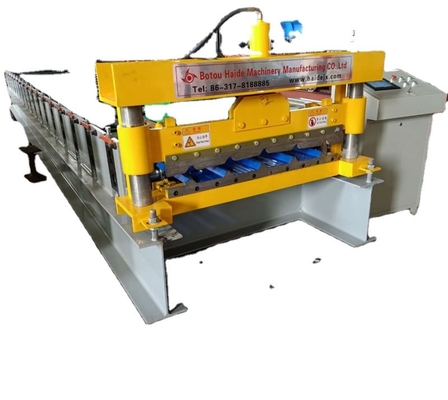

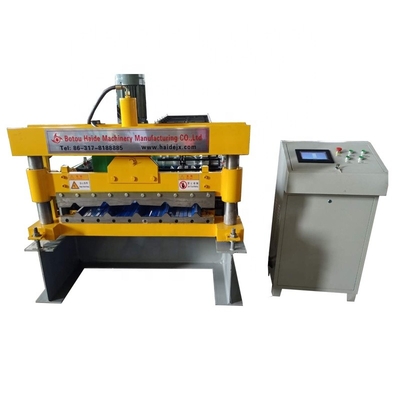

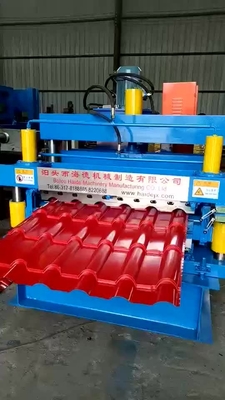

The machine
The decoiler
The receiving table
The product
C.Work flow
decoiling --------- coil guilding ---------- sheet strip leveling ------------ roll forming ---
------ cutting to length--------- output table
D. Warranty, Year warranty
During the warranty period, maintain and change the spare parts for the customers
for free(except for the instrument damage caused by human factors or natural disasters.)
And provide technical support for life-long.
We are capable of designing machine totally as your panel sample and profile drawing.
E. Have earn cetification of ISO9001 and CE cetification
Our products are widely used in various fields: industrial factory, civilian building ,warehouse,
easy steel building ,manufacturing,construction and have features such as nice appearance
and durable.
We have done business with many foreign customers just like: Iran, Tanzania, Cameroon, Portugal, Turkmenistan, Saudi Arabia, Yugoslavia et
CANTON FAIR
Please no hesitate to contact us.
Warmly welcome to visit our factory and order machine, we promise to provide you machine with the best quality!
