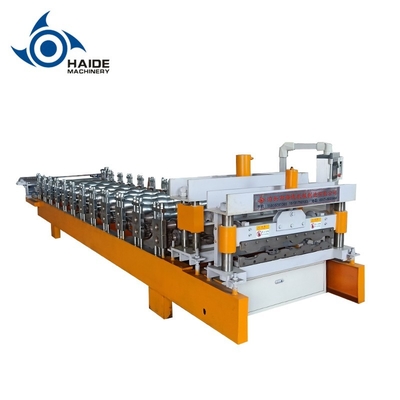

Roof Use and Colored Steel Tile Type glazed roof panel roll forming machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Colored | Use: | ROOF, Building Constrution |
| Production Capacity: | 6-8m/min | Voltage: | 380v/3phase/50hz |
| Dimension(L*W*H): | 9000*1550.1510mm | Weight: | 4 Kg |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Rolling Thinckness: | 0.3-0.8mm | Feeding Width: | 1200mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Color: | As Customer Requirement |
| Business Type: | Manufacturer | PLC Brand: | Siemens |
| Main Structure: | 350H Steel | Control System: | Fully Automatic |
| Screen: | Touch Screen | Transmission Type: | Chain Or Gear |
| Middle Plate Thickness: | 16mm | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
Roof Use and Colored Steel Tile Type glazed roof panel roll forming machine
Product Description
All technical parameters can be changed according to your needs
| No. | Main parameter | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1200mm |
| 3 | Rollers | 10 rows |
| 4 | Dimensions | 7500mm*1500mm*1400mm |
| 5 | Power | 5.5+4w |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 2-8 m/min |
| 8 | Diameter of the roller | Φ75mm |
| 9 | Transmission | chain transmission |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Machine frame | 350 C beam |
| 13 | Main structure | Large column scale |
| 14 | Control system | siemens PLC control |

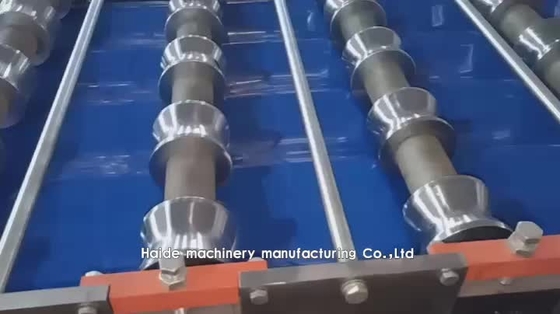

Detailed Images
Profile size for this machine
Finished panel pictures
Semi- finished machine pictures (Machine before paint color )

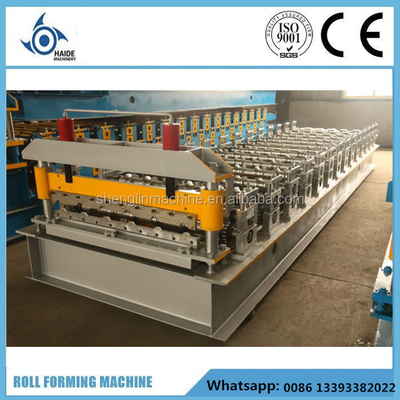

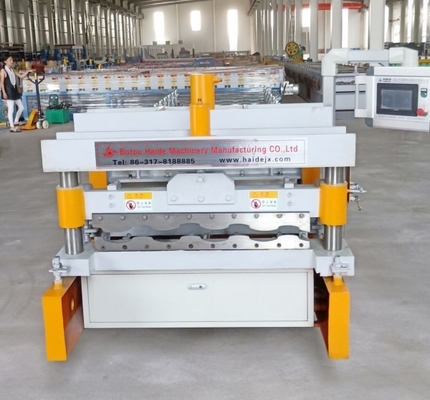

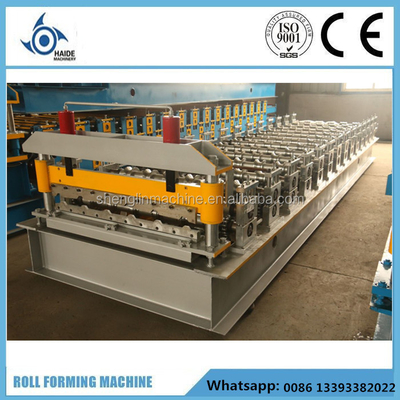

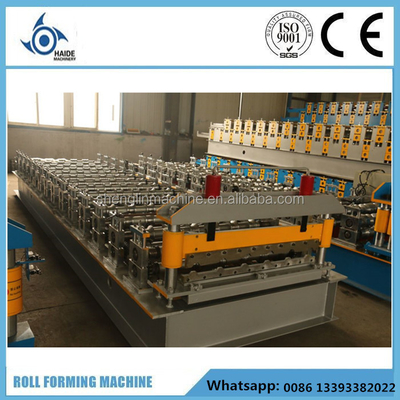

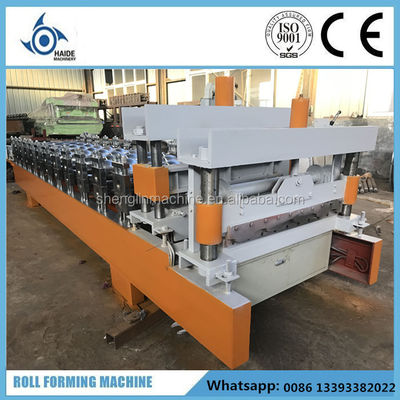

Finished machine picures
Selling point
| Item | Advantage | Pictures |
| Large scale column structure | independent box tile structure makes machine more durable and beautiful | |
| Movable computer box , aluminum plastic material | Convenient operation with high durablity | |
| Electric pre cutter | Help save raw material | |
Packaging & Shipping
Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed in wooden box with water proof paper coverage
Shipping :
Around 30 days upon received your downpayment .
Trade shows/clients
inspection
Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
